Bohn BCH0035LBACZA0000 Condensing Unit, Scroll Compressor, 3.5 HP, 208-230/1/60 Low Temp

Product Description

The BOHN BCH0035LBACZA0000 is a 3.5 HP condensing unit with a scroll compressor designed for low-temperature applications. It operates on 208-230 VAC at 60 Hz. The air-cooled condenser is suitable for outdoor installation and uses refrigerants R-404A, R-407A, R-407C, R-407F, R-448A, and R-449A.

• Scroll compressor for efficient operation
• Designed for low-temperature applications
• Utilizes multiple refrigerant types: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A

Product Highlights

3.5 HP condensing unit with scroll compressor, designed for low-temperature applications and outdoor use.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0035LBACZA0000
• Country of Origin: USA

Technical Specifications

• Application Temperature: Low Temperature
• Brand: Bohn
• Compressor HP: 3 1/2 HP
• Condenser Location: Outdoor
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Type: Air-Cooled
• Cycle/Hertz: 60 Hz
• Energy Star Rated: No
• Height: 20
• Length: 29
• Liquid Line Size (OD): 1/2"
• Phase: Single
• Prop 65: Yes
• Rated Load Amps (RLA): 16.3
• Refrigerant: R-404A; R-407A; R-407C; R-407F; R-448A; R-449A
• Suction Line Size (OD): 7/8"
• UL Listed: Yes
• UL Recognized: No
• Voltage: 208-230 VAC
• Width: 40
• Minimum Circuit Ampacity (MCA): 21.4
• Compressor Type: Scroll
• Country of Origin: USA
• Cooling Capacity: 13070 BTU/Hour
• Enclosure Finish: Galvanized
• Frequency Rating: 60 Hertz
• Operating Temperature: 95 Deg F (Ambient), -20 Deg F (SST)
• Power Rating: 3 HP

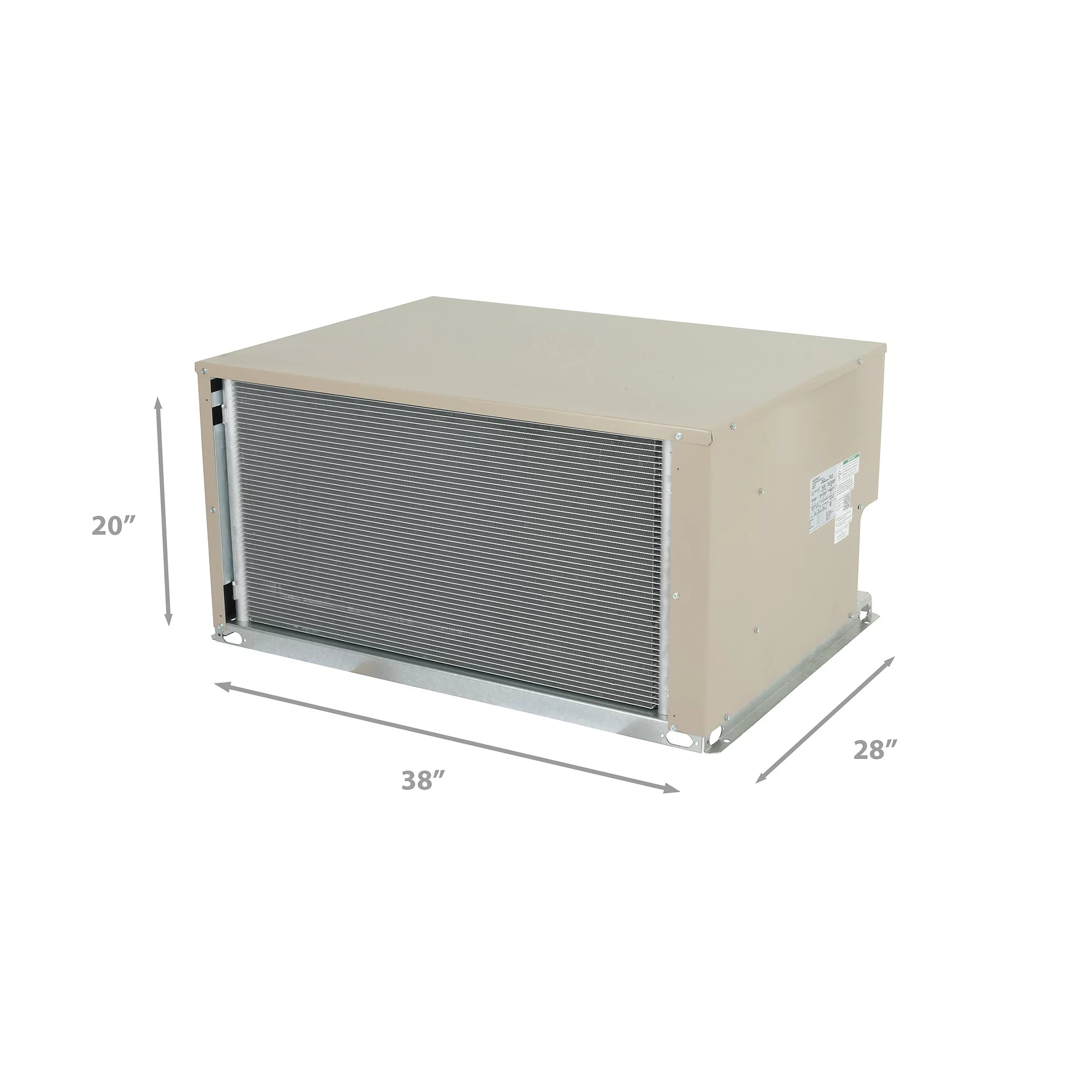

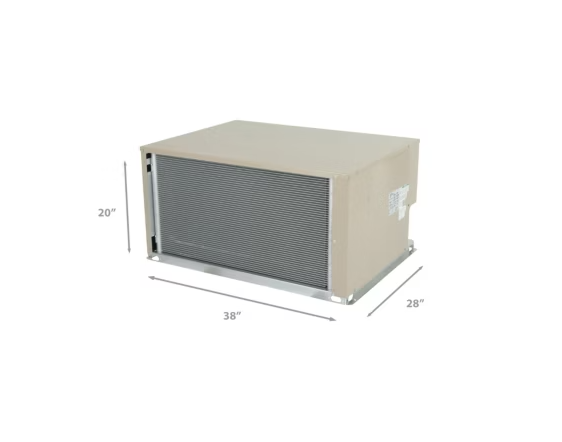

• Size: 39-1/8 Inch Width x 28-1/4 Inch Depth x 19-3/4 Inch Height
• Type: Low Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
• Voltage Rating: 208/230 Volt AC
• Number of Phases: 1
• Approval: UL (Canada and US)
