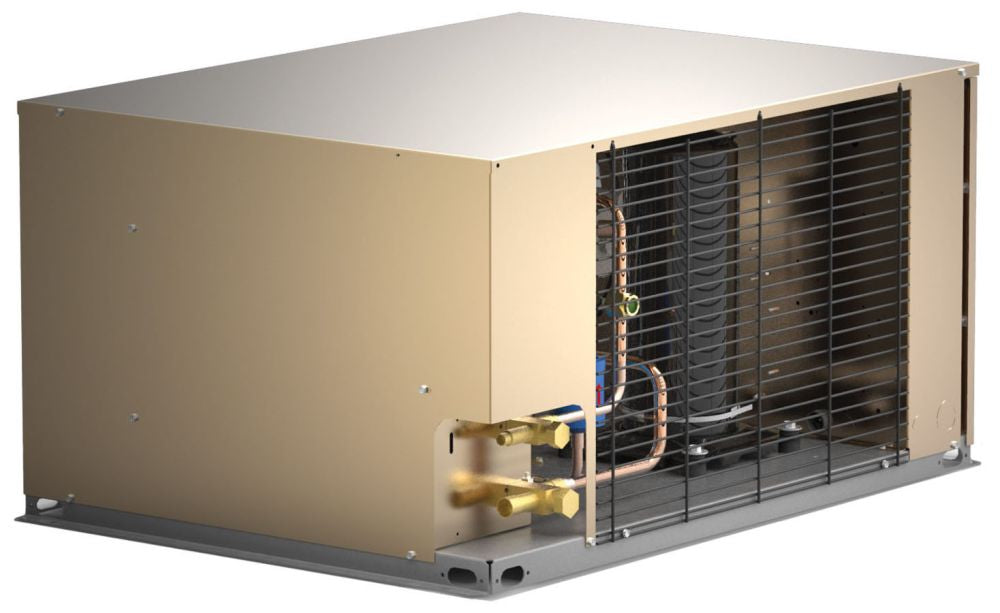

Bohn BCH0030MBACZA0000 Air-Cooled Condensing Unit 3 HP

Product Description

The BOHN BCH0030MBACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. It utilizes a scroll compressor and is suitable for medium temperature applications such as coolers. The unit features externally mounted piping connections and removable cabinets for accessing service components. It is designed for energy efficiency and approved for use with multiple refrigerants. The unit is configured to meet minimum AWEF standards.

• Scroll compressor for medium temperature applications.
• Microchannel coil technology.
• Painted steel cabinet for corrosion protection.

Product Highlights

This BOHN air-cooled condensing unit is designed for medium temperature applications and energy efficiency. Features include a scroll compressor, microchannel coil technology, and a painted steel cabinet.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0030MBACZA0000

Technical Specifications

• Brand: Bohn
• MPN: BCH0030MBACZA0000
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZS21KAE-PFV
• Voltage Rating: 208-230V
• Cabinet: C3
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95° F Ambient 25° F SST
• Ambient Temperature F: 95° F
• Suction Temperature F: 25° F
• Capacity BTUH: 31,930
• Meets Minimum Awef: TRUE
• Refrigerant Type: R-404A
• Height (In.): 29.25
• Depth In: 30.25
• Width (In.): 43.875
• Receiver 90 Pc Full Standard Lbs: 20
• Receiver 90 Pc Full Optional Lbs: 40
• Sound Data Dba: 63
• Compressor RLA: 20.83333333
• Compressor LRA: 112
• Fan Motor Qty: 1
• Fan Motor Fla: 3.5
• MCA: 29.5
• MOPD: 50
• Liquid Od: 0.5
• Suction Od: 0.875
• HP Rating: 3 hp
• Amperage Rating: 29.5 A
• Connection Size: 1/2 in Liquid, 7/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• Material: Steel
• Phase: 1 ph
• Sound Level: 63 dBA
• Temperature Rating: 95 deg F
• Cooling Capacity: 31930 BTU/Hour
• Enclosure Finish: Galvanized
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Power Rating: 3 HP
• Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
• Number of Phases: 1
• Approval: UL (Canada and US)
