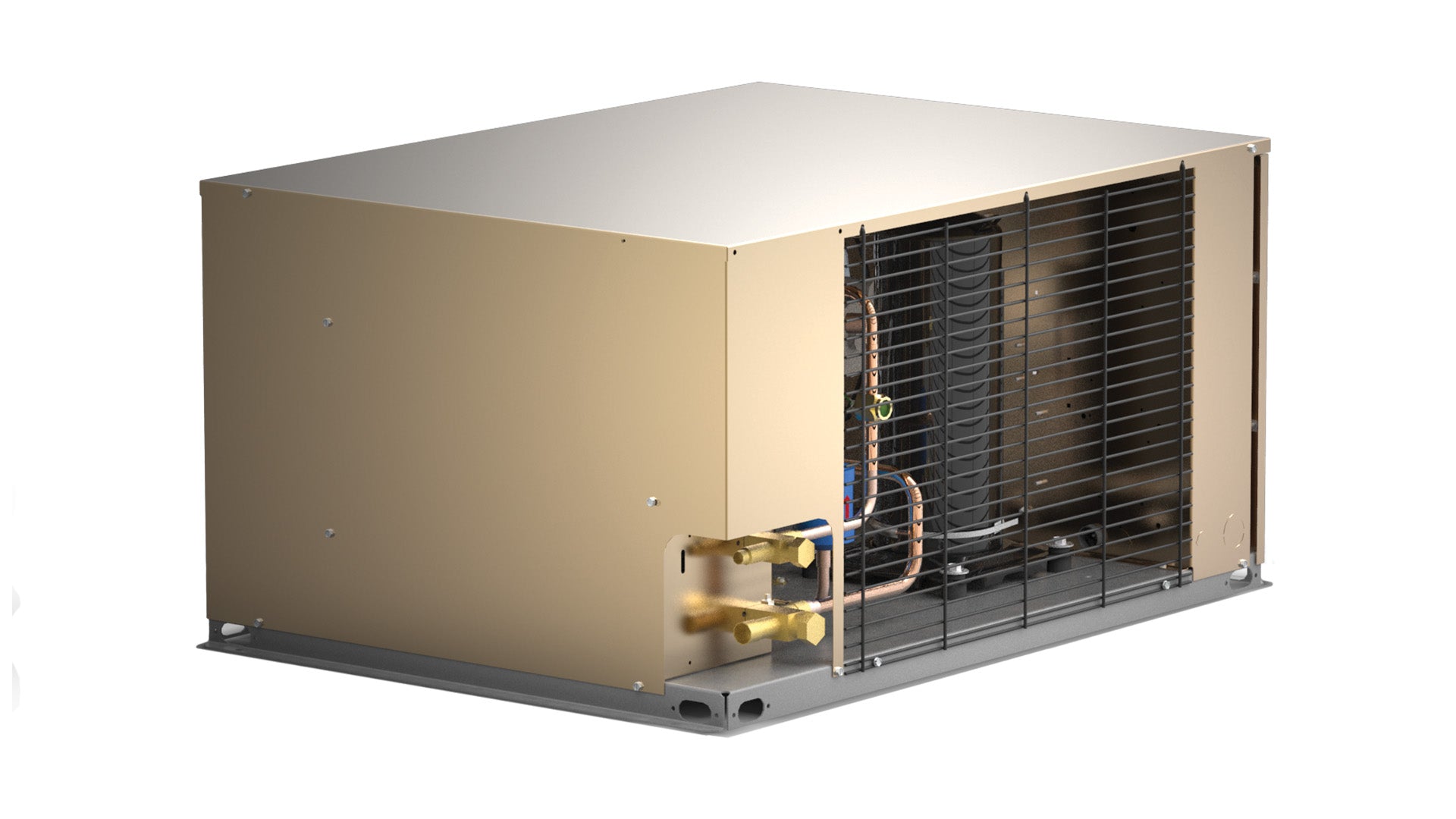

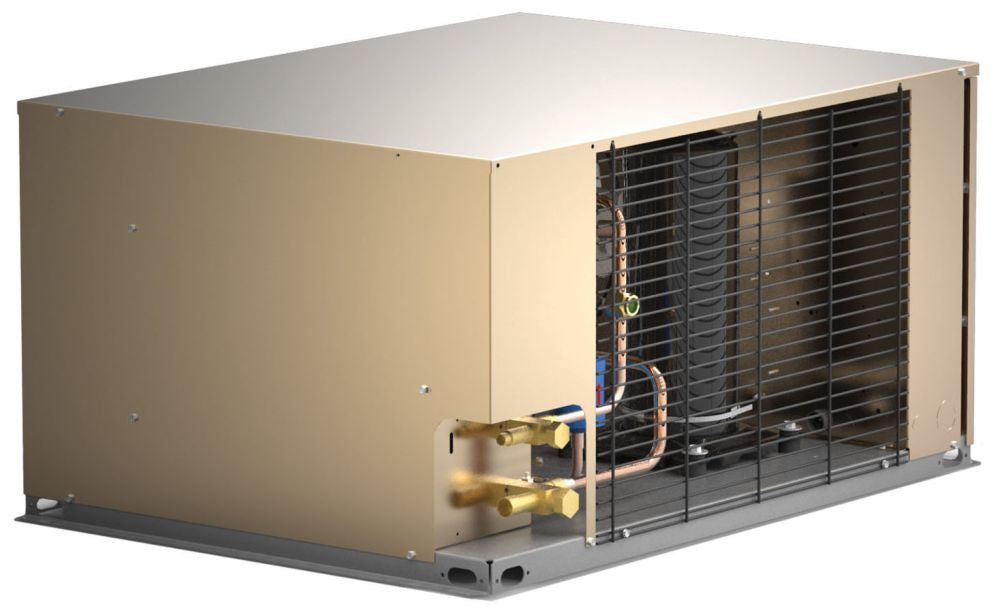

Bohn BCH0030LBACZA0000 Air-Cooled Condensing Unit 3 HP

Product Description

The BOHN BCH0030LBACZA0000 air-cooled condensing unit, ranging from 0.5 to 6 HP, features a Copeland Hermetic reciprocating or Scroll compressor. Designed for flexibility and serviceability, it supports both medium and low-temperature applications. Piping connections are externally mounted, and removable cabinets allow easy access to service components. This unit is designed for energy efficiency and is approved for use with multiple refrigerants.

• Designed for use in freezers.
• Suitable for low-temperature applications.
• Features a scroll compressor.

Product Highlights

Air-cooled condensing unit with a scroll compressor, designed for freezers and low-temperature applications. Features external piping connections and removable cabinets for easy service.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0030LBACZA0000

Technical Specifications

• Brand: Bohn
• MPN: BCH0030LBACZA0000
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: freezer
• Operating Range: Low Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZF09K4E-PFV
• Voltage: 208-230/1/60
• Cabinet: C2
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95° F Ambient -20° F SST
• Ambient Temperature F: 95° F
• Suction Temperature F: -20° F
• Capacity BTUH: 10,620
• Meets Minimum Awef: TRUE
• Refrigerant: R-404A
• Height (In.): 19.75
• Depth In: 28.25
• Width (In.): 39.125
• Approx Net Weight (lbs): 230
• Receiver 90 Pc Full Standard Lbs: 14
• Receiver 90 Pc Full Optional Lbs: 20
• Sound Data Dba: 64
• Compressor RLA: 12.82051282
• Compressor LRA: 88
• Fan Motor Qty: 2
• Fan Motor Fla: 1
• MCA: 37.5
• MOPD: 40
• Liquid Od: 0.5
• Suction Od: 0.875
• Approval: UL (Canada and US)
• Cooling Capacity: 10620 BTU/Hour
• Enclosure Finish: Painted
• Enclosure Material: Steel
• Frequency Rating: 60 Hertz
• Operating Temperature: 95 Deg F (Ambient), -20 Deg F (Suction)
• Power Rating: 3 HP
• Size: 39-1/8 Inch Width x 28-1/4 Inch Depth x 19-3/4 Inch Height
• Type: Low Temperature, Standard Base, Horizontal Air Discharge, Scroll Compressor
• Voltage Rating: 208/230 Volt AC
• Weight: 230 Pound
• Number of Phases: 1
• Current Rating: 37.5 Amp MCA/40 Amp MOPD (Electric Defrost), 12.8 Amp RLA/88 Amp LRA (Compressor), 1 Amp RLA (Condenser), 10 Amp (Evaporator), 30 Amp (Defrost Heater)
• Refrigerant Type: R-404A
• Sound Rating: 64 Decibel
• Refrigerant Connection Size: 1/2 Inch (Liquid), 7/8 Inch (Gas)
• Applicable Standard: AWEF, Title 24
