Product Description

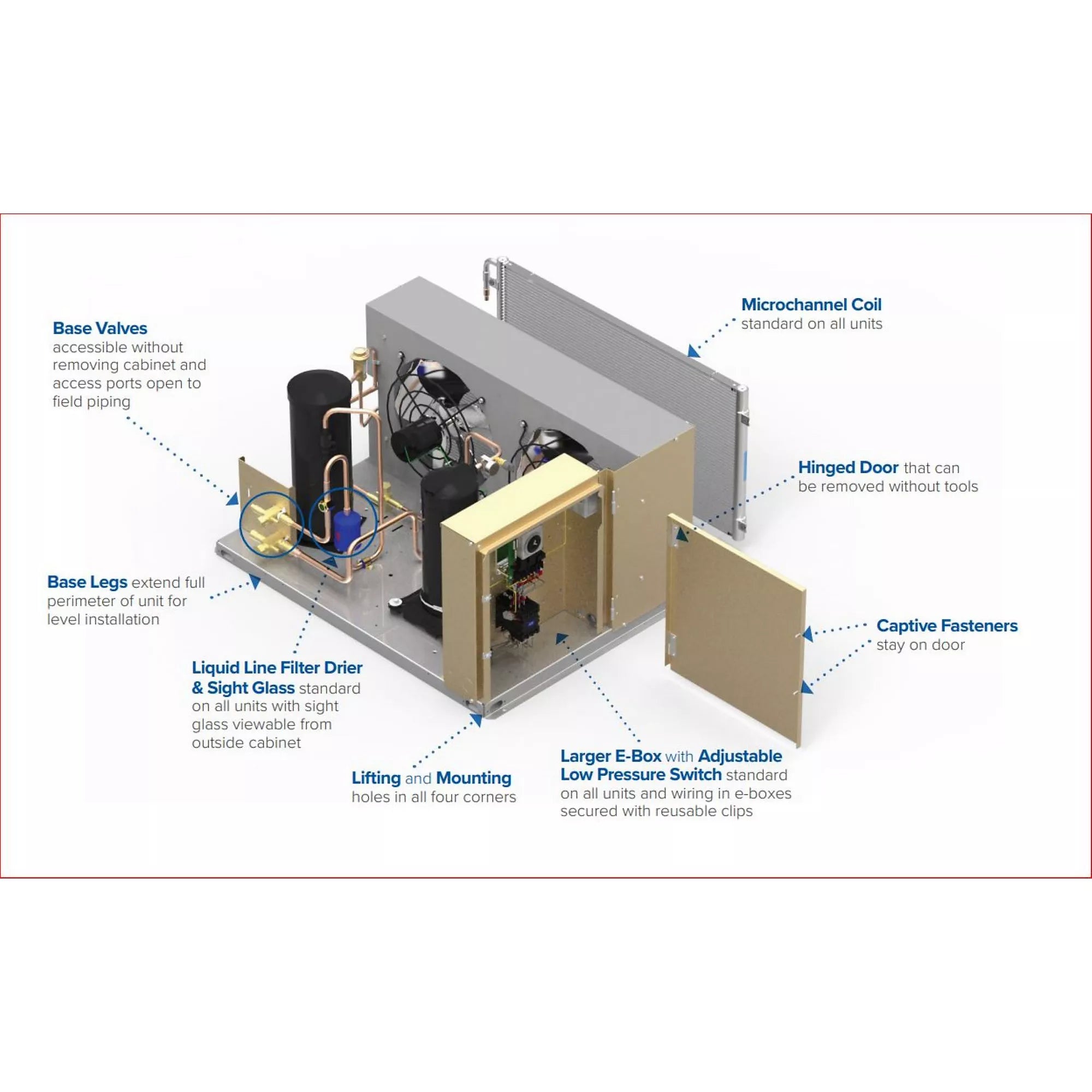

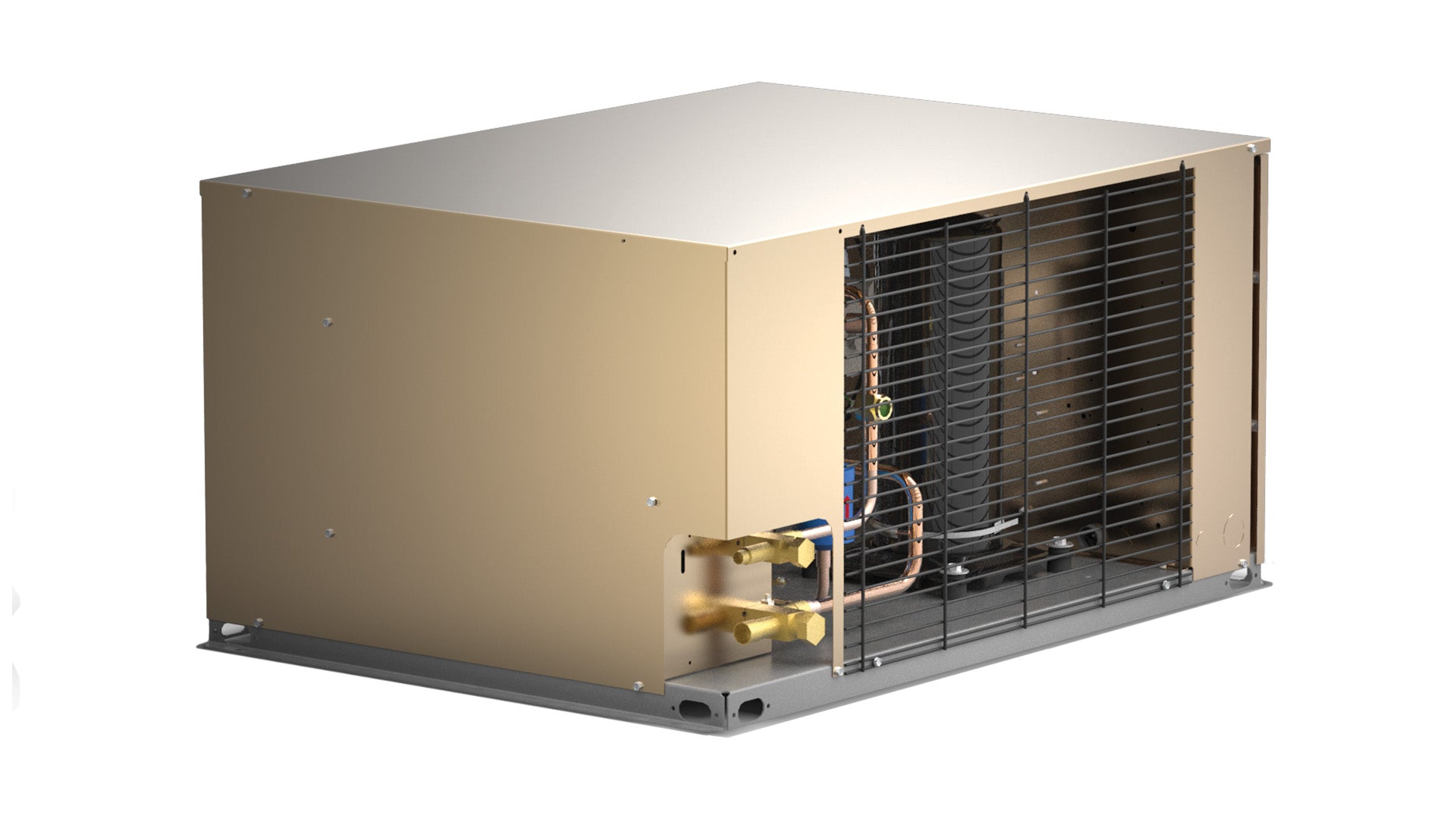

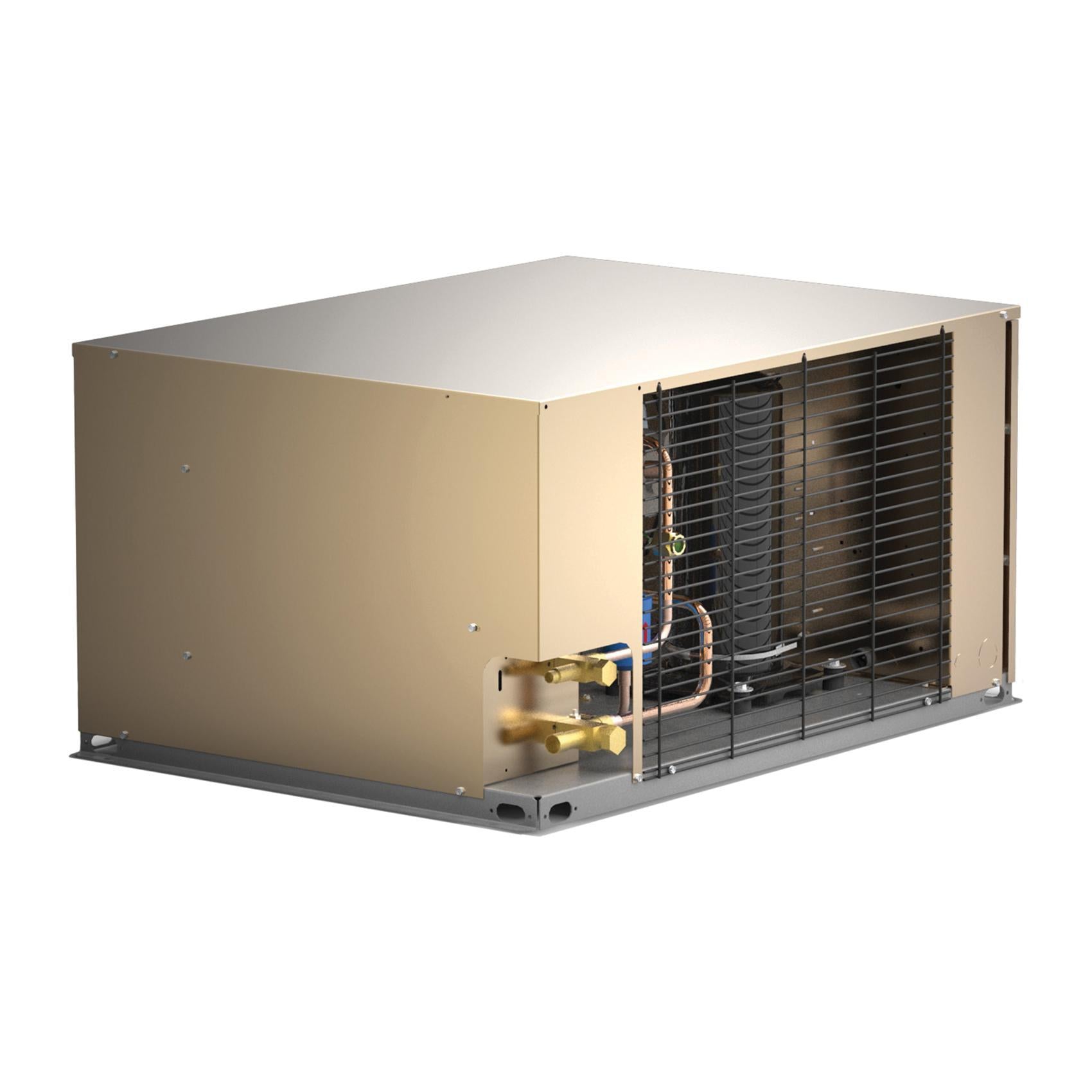

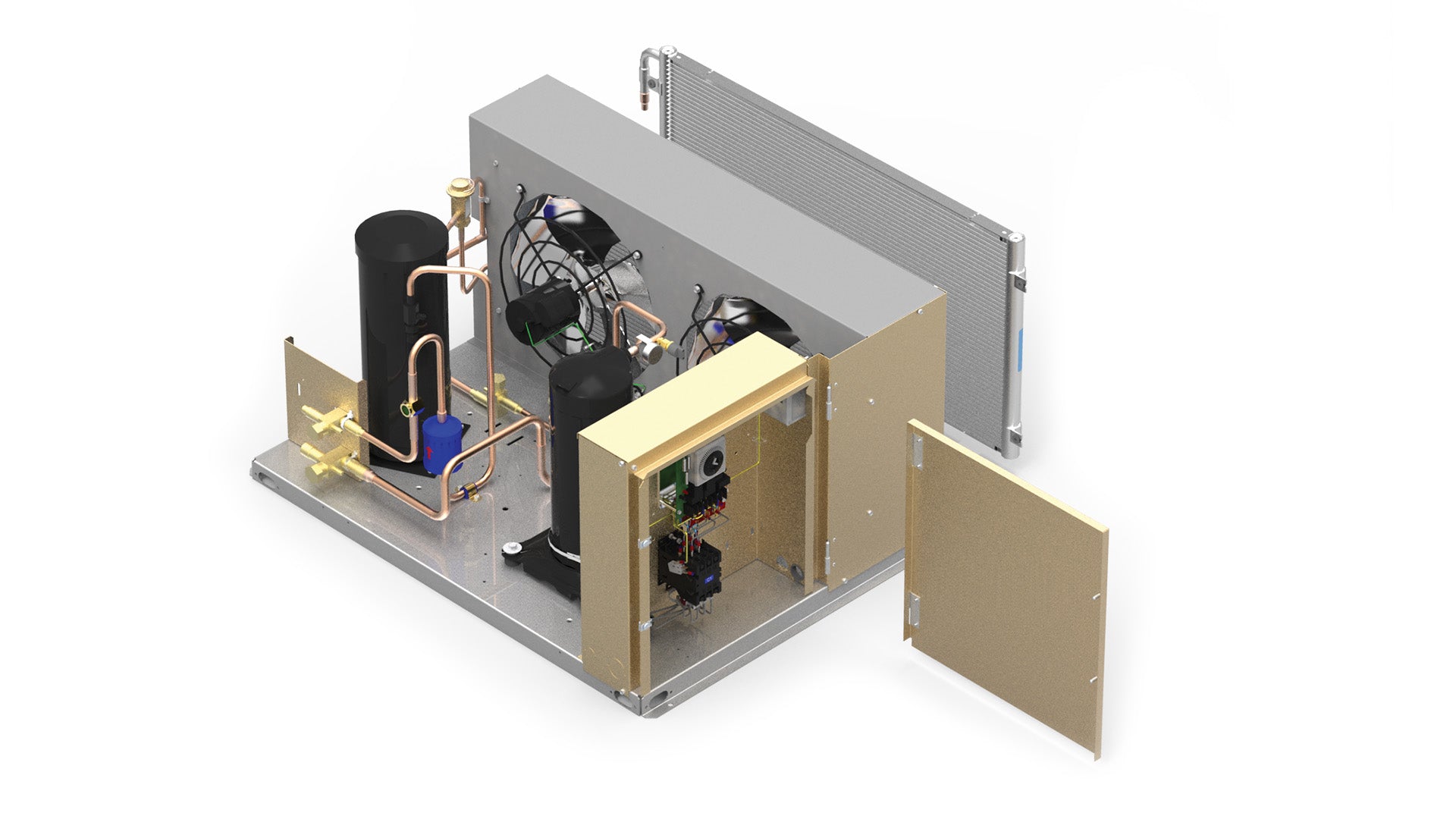

The Bohn BCH0015MBACZA0000 is an air-cooled condensing unit designed for medium temperature applications. It features a Copeland Scroll compressor and a microchannel coil. Designed for flexibility and serviceability with externally mounted piping connections and removable cabinets for easy access to service components. Approved for use with multiple refrigerants and leak tested in a helium environment.
- Scroll compressor for refrigeration applications.

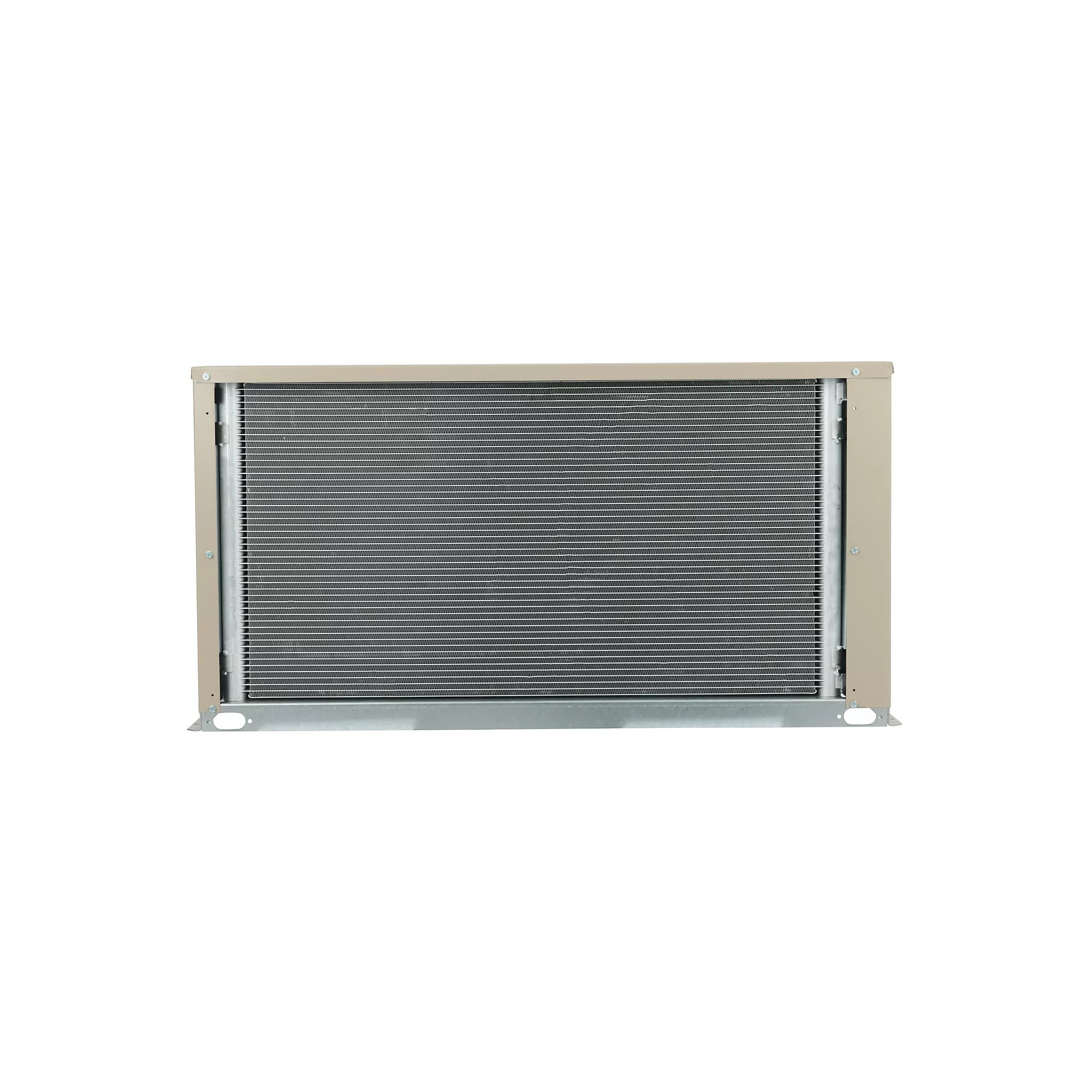

- Microchannel coil technology.
- Painted steel cabinet for corrosion protection.
Product Highlights
The Bohn BCH0015MBACZA0000 condensing unit is ideal for medium temperature applications, offering efficient and reliable performance with its scroll compressor and durable construction.
Product Information
Standard Information
-
Brand: BOHN
-
Manufacturer Part Number: BCH0015MBACZA0000
-
Country of Origin: N/A
Technical Specifications
-
Brand: Bohn
-
MPN: BCH0015MBACZA0000
-
Product Type: Air-Cooled Condensing Units
-
Product Category: Condensing Units and Packaged Systems
-
Product Style: 0.5 - 6 HP Horizontal Air Discharge
-
Product Classification: current
-
Application: Medium Temperature, cooler
-
Operating Range: Medium Temperature
-
Compressor Type: Scroll
-
Compressor Model Number: ZS13KAE-PFV
-
Horsepower: 1 1/2
-
Voltage: 208-230 VAC
-
Cycle/Hertz: 60 Hz
-
Phase: Single
-
Cabinet: C2
-
Condenser Type: Air-Cooled
-
Condenser Coil Type: Microchannel Coil
-
Condenser Location: Outdoor
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Refrigerant: R-404A; R-407A; R-407C; R-448A; R-449A
-
Rating Point: 95° F Ambient 25° F SST
-
Ambient Temperature F: 95° F
-
Suction Temperature F: 25° F
-
Capacity BTUH: 17,540
-
Meets Minimum Awef: TRUE
-
Height (In.): 19.75
-
Depth In: 28.25
-
Width (In.): 39.125
-
Receiver Capacity 90 % Full (Lbs.): 14
-
Receiver Included: Yes
-
Sound Data Dba: 63
-
Compressor RLA: 10.76923077
-
Compressor LRA: 56
-
Fan Motor Qty: 2
-
Fan Motor Fla: 1
-
Minimum Circuit Ampacity (MCA): 15
-
Maximum Overcurrent Protection Device (MOPD): 25
-
Liquid Line Size (OD): 1/2"
-
Suction Line Size (OD): 7/8"
-
Approvals: UL Listed
-
Application Temperature: Medium Temperature
-
Compressor HP: 1 1/2 HP
-
Cooling Capacity: 17540 BTU/Hour
-
Enclosure Finish: Galvanized
-
Frequency Rating: 60 Hertz
-
Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
-
Power Rating: 1-1/2 HP
-
Size: 39-1/8 Inch Width x 28-1/4 Inch Depth x 19-3/4 Inch Height
-
Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
-
Voltage Rating: 208/230 Volt AC
-
Number of Phases: 1
-
Additional Information: Medium Temperature, Copeland Scroll Compressor, Standard Base
-
Amperage Rating: 15 A
-
BTU Rating: 17540 Btu/hr
-
Connection Size: 1/2 in Liquid, 7/8 in Suction
-
Dimensions: 19-3/4 in H x 39-1/8 in W x 28-1/4 in D
-
Finish: Painted
-
Material: Steel
-
Refrigerant Type: R-404A
-
Sound Level: 63 dBA
-
Temperature Rating: 95 deg F
