Product Description

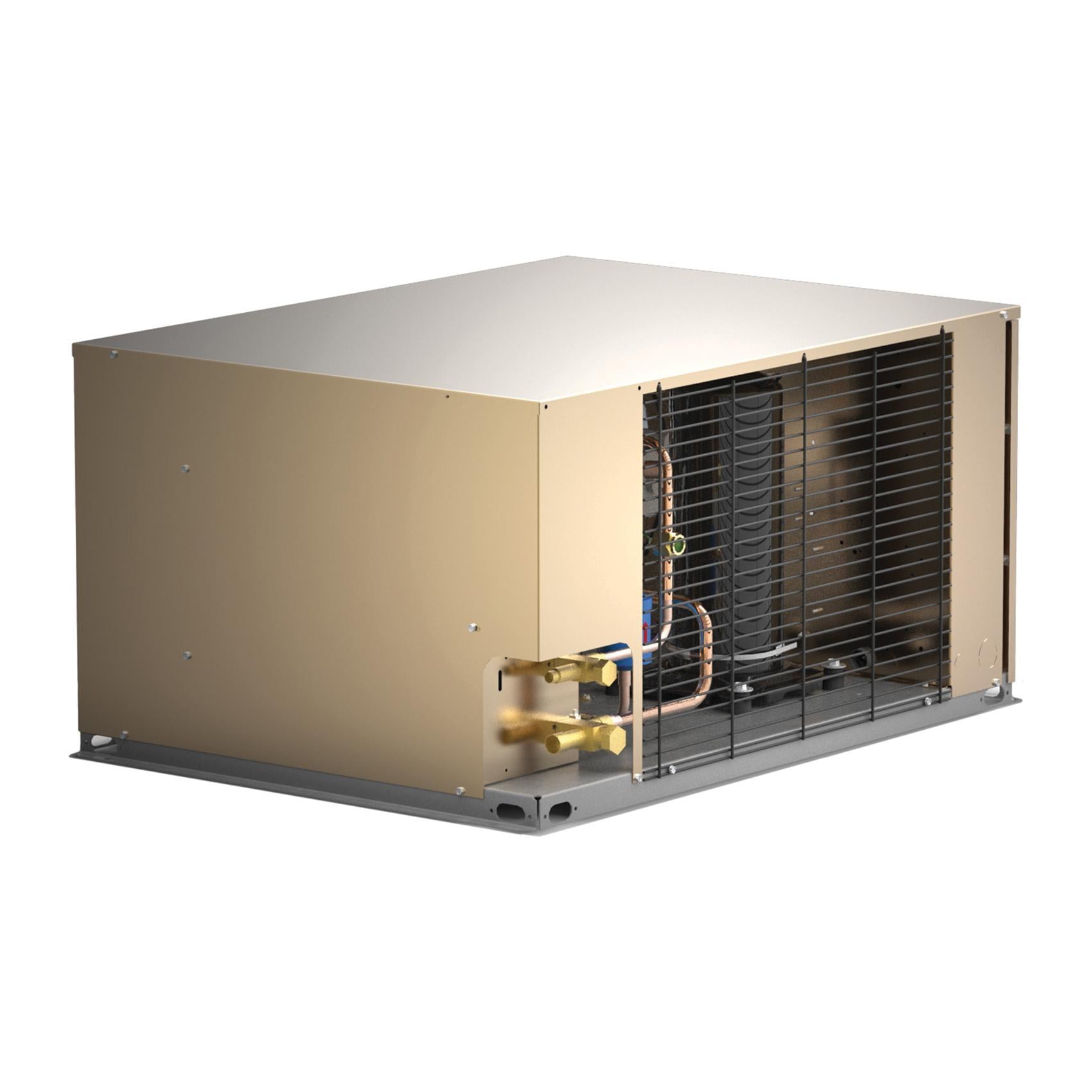

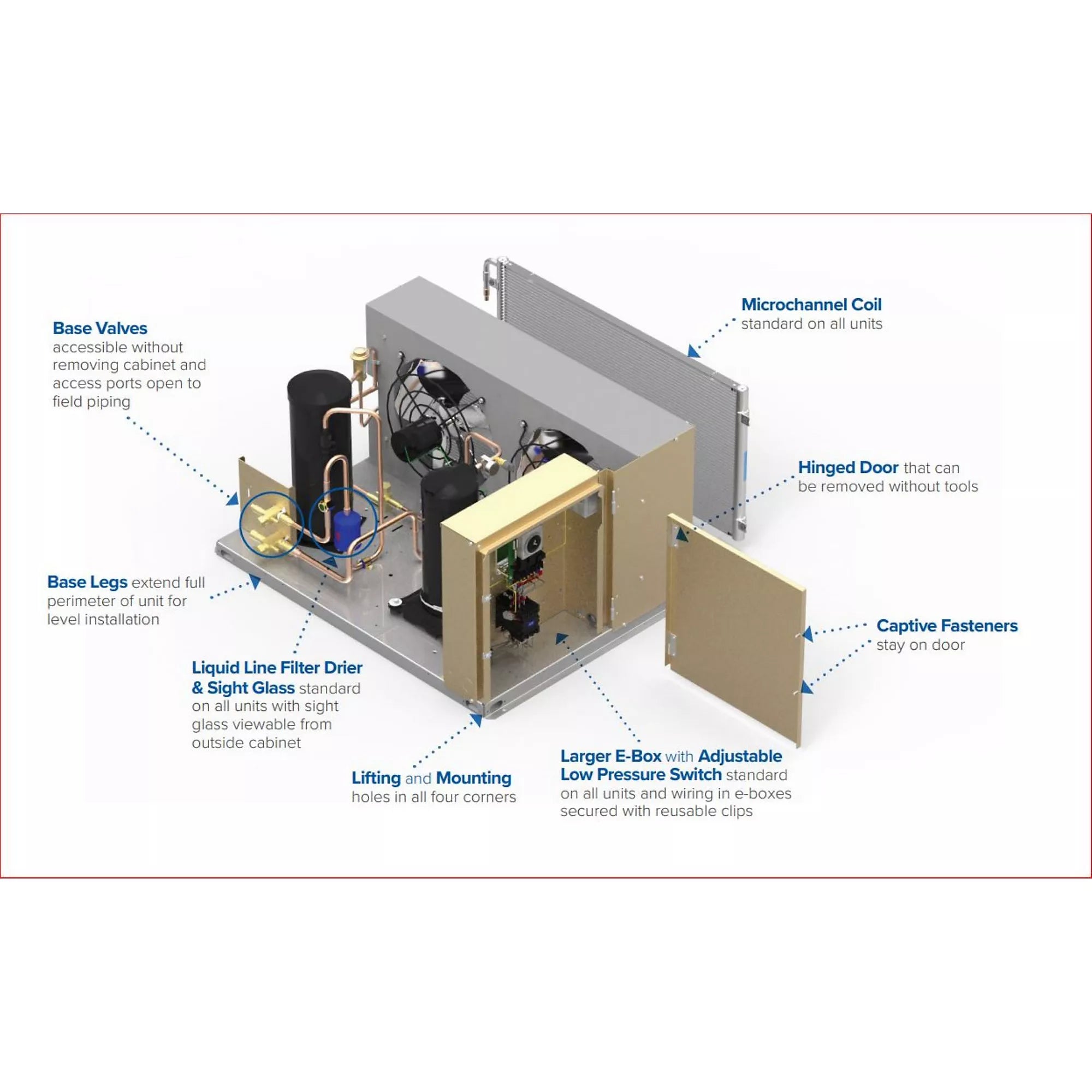

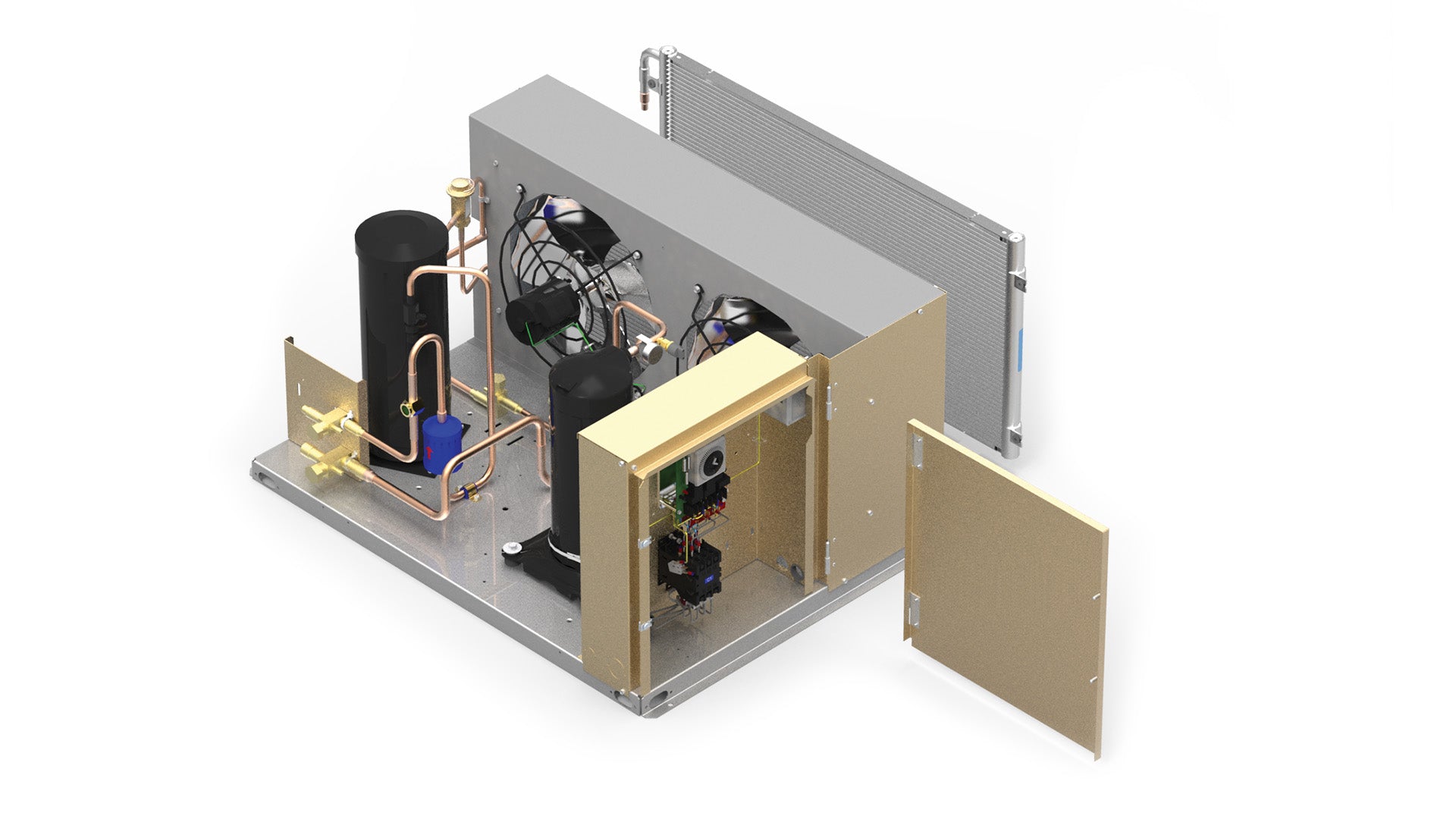

The BOHN BCH0010MBACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. It utilizes a Copeland Scroll compressor and is suitable for medium temperature applications. The unit features externally mounted piping connections and removable cabinets for component access. It is designed for use with multiple refrigerants and can be configured to meet specific regulations. The unit includes a receiver with a fusible plug, liquid shutoff valve, and charging port.
- Designed for horizontal air discharge.
- Equipped with a microchannel coil.
- Features painted steel cabinets for corrosion protection.
Product Highlights
Air-cooled condensing unit with Copeland Scroll compressor for medium temperature applications. Features include externally mounted piping, removable cabinets, and multiple refrigerant compatibility.
Product Information
Standard Information
-
Brand: BOHN
-
Manufacturer Part Number: BCH0010MBACZA0000
-
Country of Origin: USA
Technical Specifications
-
Brand: Bohn
-
Manufacturer Part Number: BCH0010MBACZA0000
-
Product Type: Air-Cooled Condensing Units
-
Product Category: Condensing Units and Packaged Systems
-
Product Style: 0.5 - 6 HP Horizontal Air Discharge
-
Product Classification: current
-
Application: Medium Temperature
-
Compressor Type: Scroll
-
Compressor Model Number: ZS09KAE-PFV
-
Voltage: 208-230 VAC
-
Cabinet: C1
-
Condenser Coil Type: Microchannel Coil
-
Rating Point: 95° F Ambient 25° F SST
-
Ambient Temperature F: 95° F
-
Suction Temperature F: 25° F
-
Capacity BTUH: 12,200
-
Meets Minimum Awef: TRUE
-
Refrigerant: R-404A
-

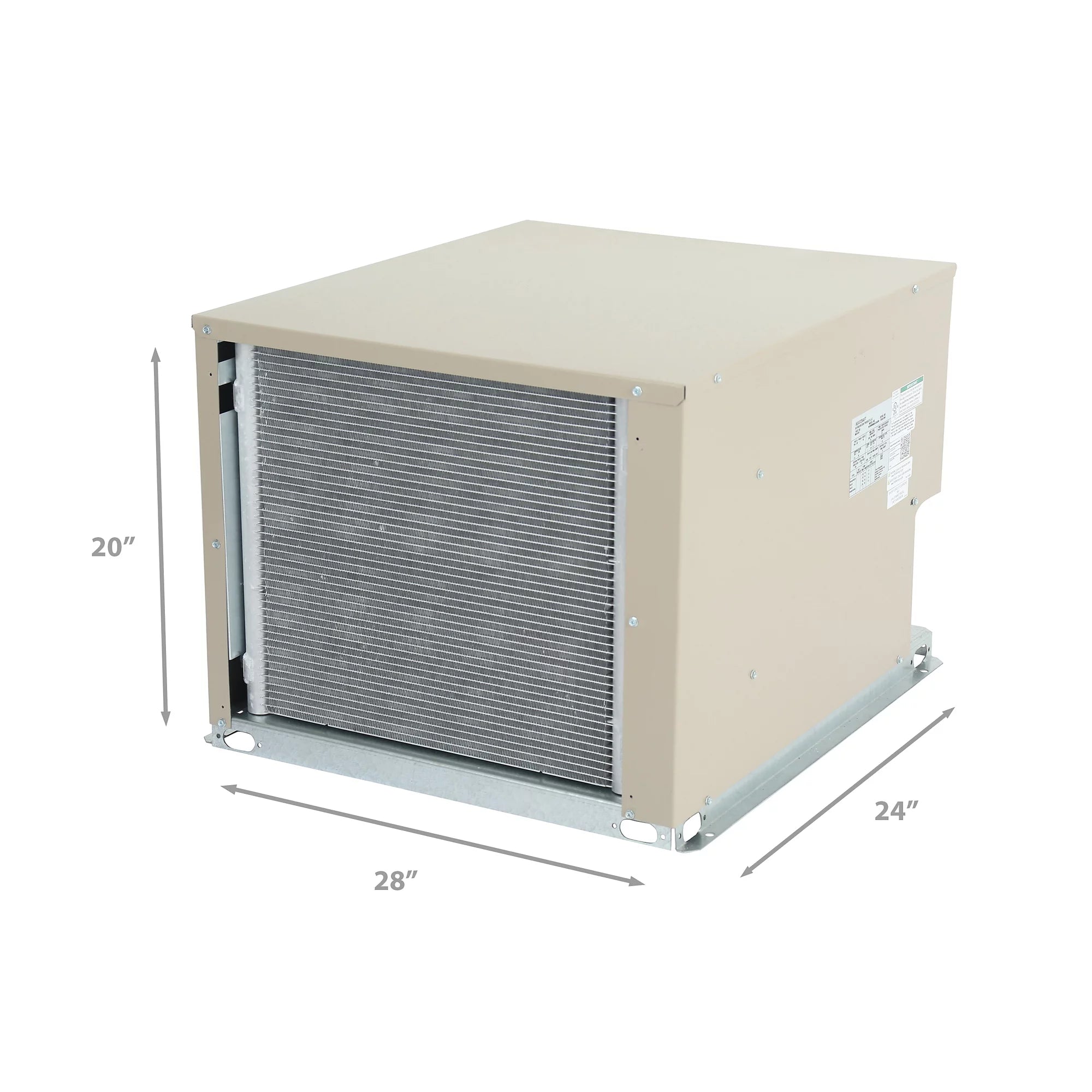

Height: 19.75 in
-
Depth In: 28.25
-
Width: 24.625 in
-
Receiver Capacity 90 % Full (Lbs.): 9
-
Sound Data Dba: 61
-
Compressor RLA: 8.974358974
-
Compressor LRA: 40.3
-
Fan Motor Qty: 1
-
Fan Motor Fla: 0.5
-
MCA: 15
-
MOPD: 20
-
Liquid Od: 0.375
-
Suction Od: 0.625
-
Horsepower: 1 HP
-
Connection Liquid (In.): 3/8
-
Connection Suction (In.): 5/8
-
Receiver Included: Yes
-
Condenser Location: Outdoor
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Condenser Type: Air-Cooled
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Liquid Line Size (OD): 3/8"
-
Phase: Single
-
Prop 65: Yes
-
Rated Load Amps (RLA): 9
-
Refrigerant Type: R-404A; R-407A; R-407C; R-448A; R-449A
-
Suction Line Size (OD): 5/8"
-
UL Listed: Yes
-
UL Recognized: No
-
Cooling Capacity: 12200 BTU/Hour
-
Enclosure Finish: Galvanized
-
Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
-
Power Rating: 1 HP
-
Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
-
Voltage Rating: 208/230 Volt AC
-
Number of Phases: 1
-
Frequency Rating: 60 Hertz
-
Material: Steel
-
Finish: Painted
-
Temperature Rating: 95 deg F
-
Additional Information: Medium Temperature, Copeland Scroll Compressor, Standard Base
