Product Description

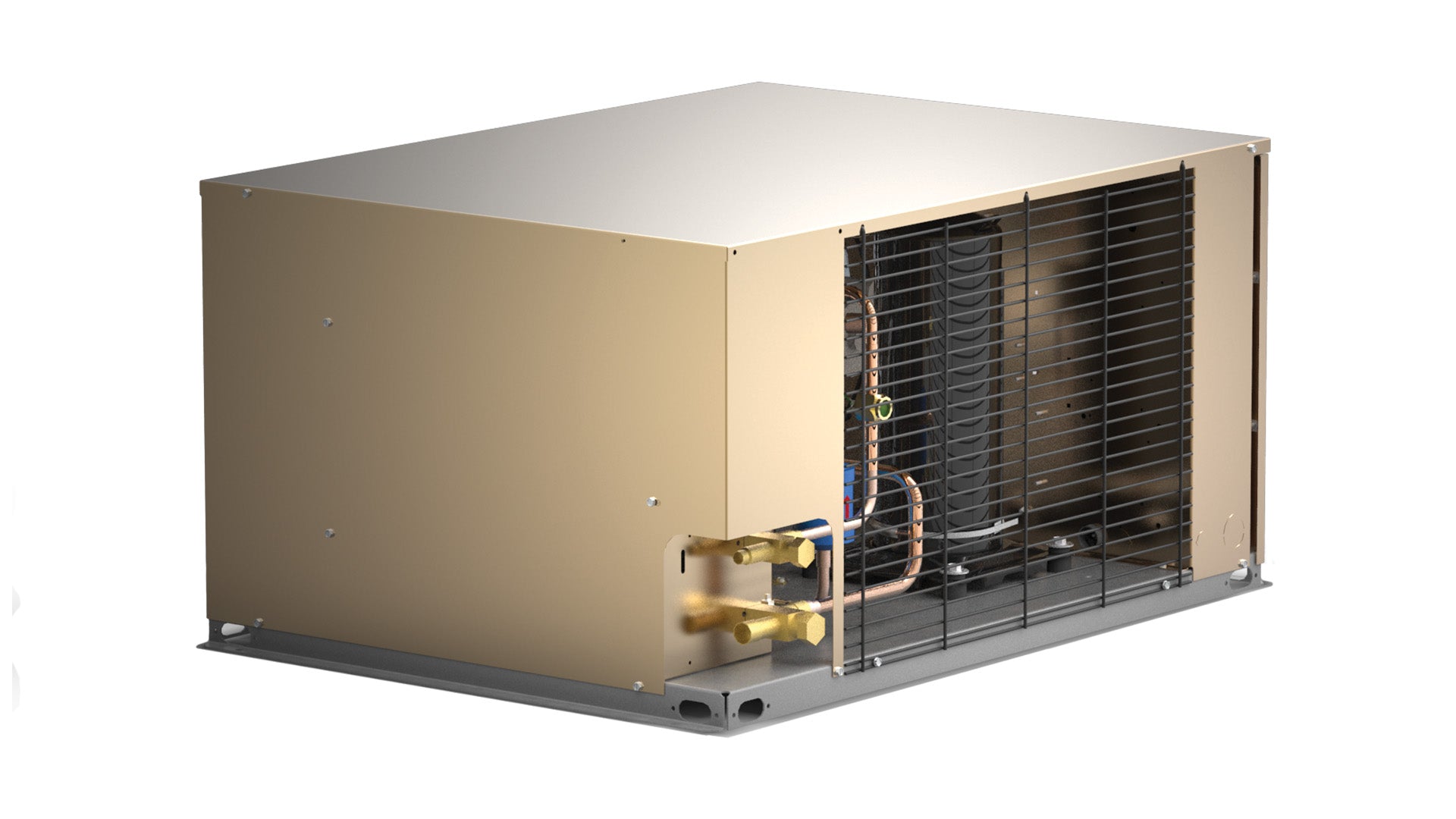

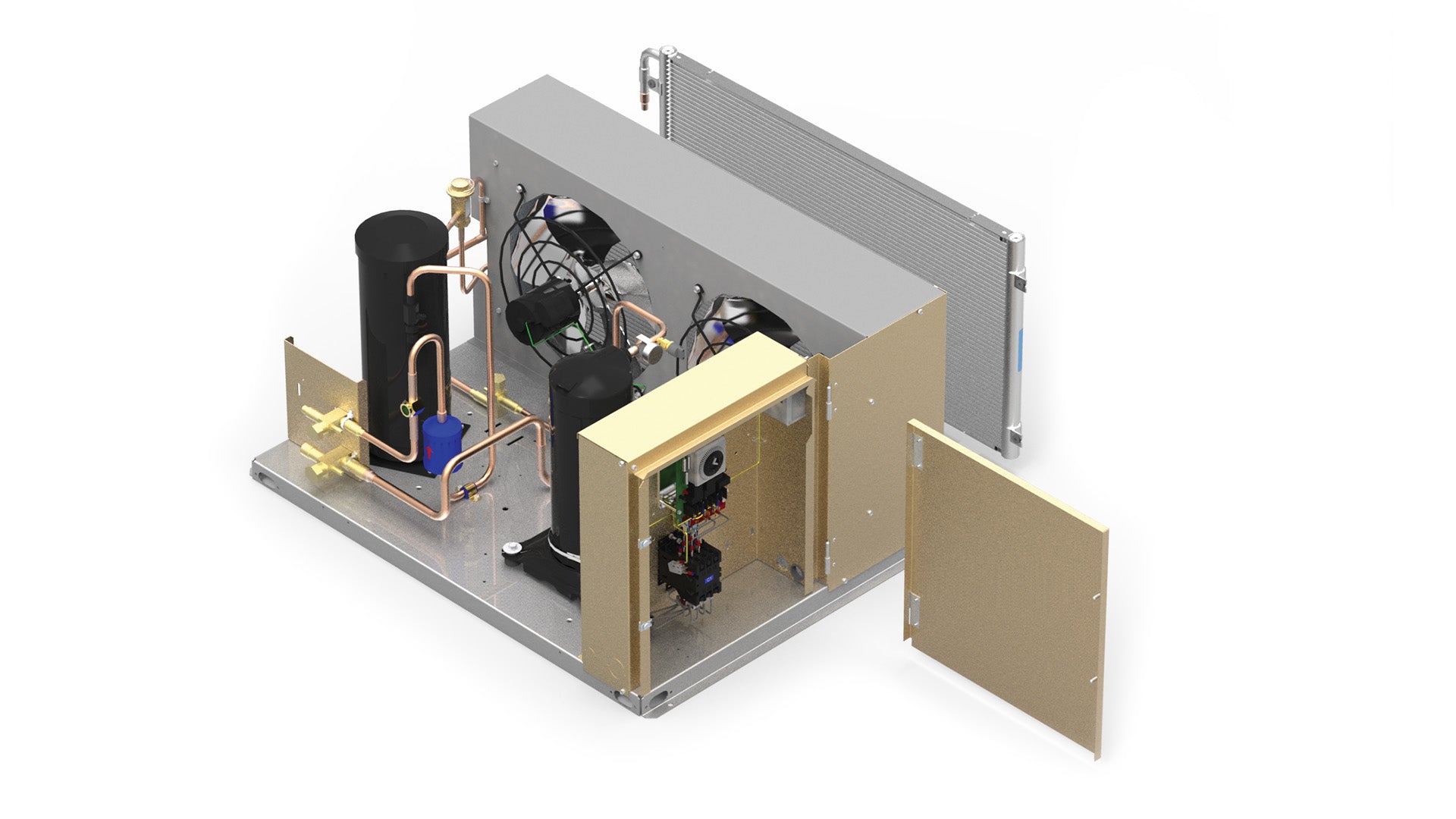

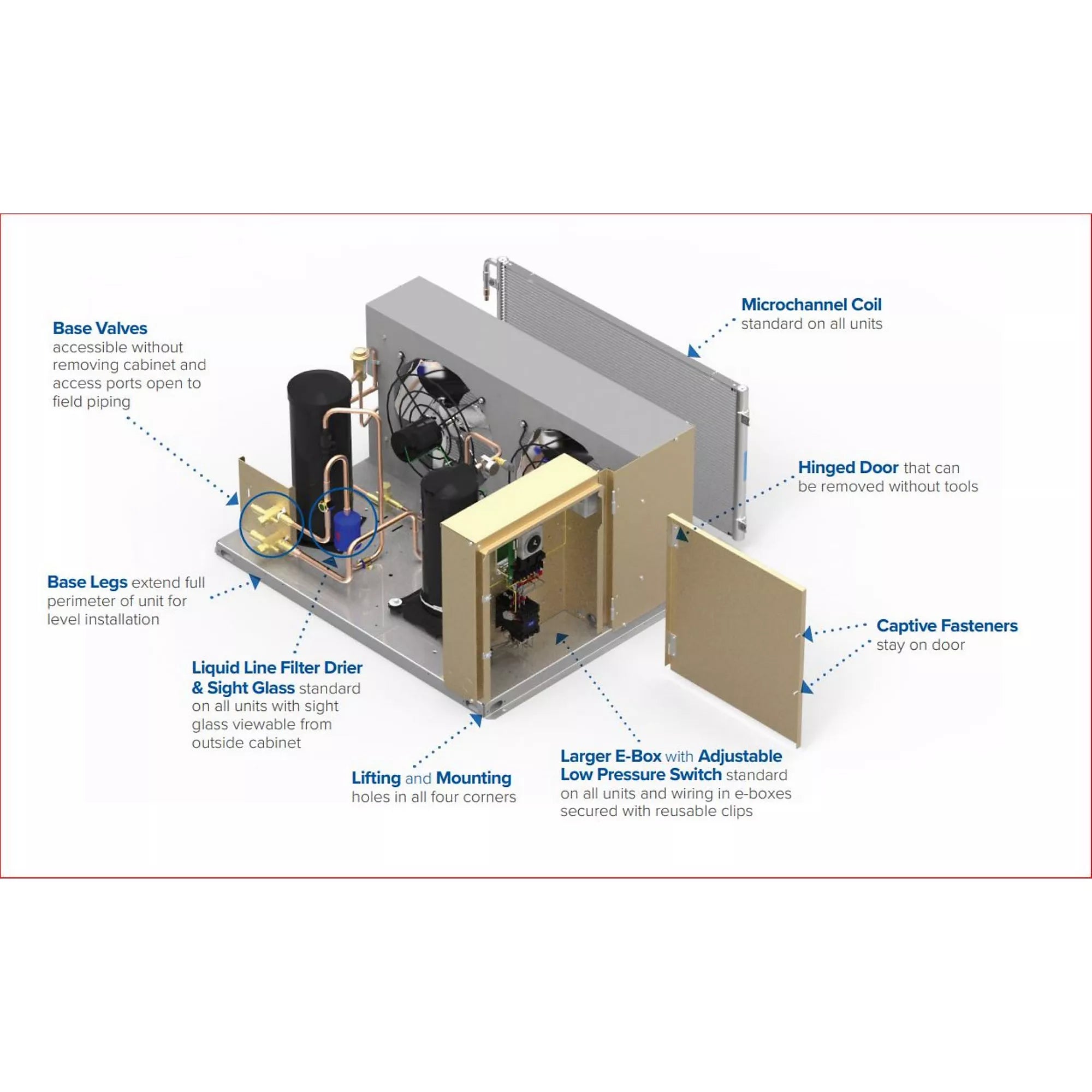

The BOHN BCH0009MCACZA0000 is an air-cooled condensing unit designed for flexibility and serviceability. Suitable for medium temperature applications, it features a Copeland Hermetic scroll compressor. The unit is designed for use with multiple refrigerants and can be configured to meet specific regulations. Piping connections are externally mounted, and removable cabinets allow easy access to service components.
- Air-cooled condensing unit for medium temperature applications.
- Features a scroll compressor and microchannel coil.
- Designed for use with multiple refrigerants.
Product Highlights
This unit utilizes a microchannel coil and is designed for horizontal air discharge. Ideal for cooler applications.
Product Information
Standard Information
-
Brand: BOHN
-
Manufacturer Part Number: BCH0009MCACZA0000
-
Country of Origin: USA
Technical Specifications
-
Product Brand: Bohn
-
Manufacturer Part Number: BCH0009MCACZA0000
-
Product Type: Air-Cooled Condensing Units
-
Product Category: Condensing Units and Packaged Systems
-
Product Style: 0.5 - 6 HP Horizontal Air Discharge
-
Product Classification: current
-
Application: cooler
-
Operating Range: Medium Temperature
-
Compressor Type: Scroll
-
Compressor Model Number: ZB08KAE-TF5
-
Voltage: 208-230 VAC
-
Cabinet: C1
-
Condenser Coil Type: Microchannel Coil
-
Rating Point: 95° F Ambient 25° F SST
-
Ambient Temperature F: 95° F
-
Suction Temperature F: 25° F
-
Capacity BTUH: 9,900
-
Meets Minimum Awef: TRUE
-
Refrigerant: R-404A; R-407A; R-407C; R-448A; R-449A
-

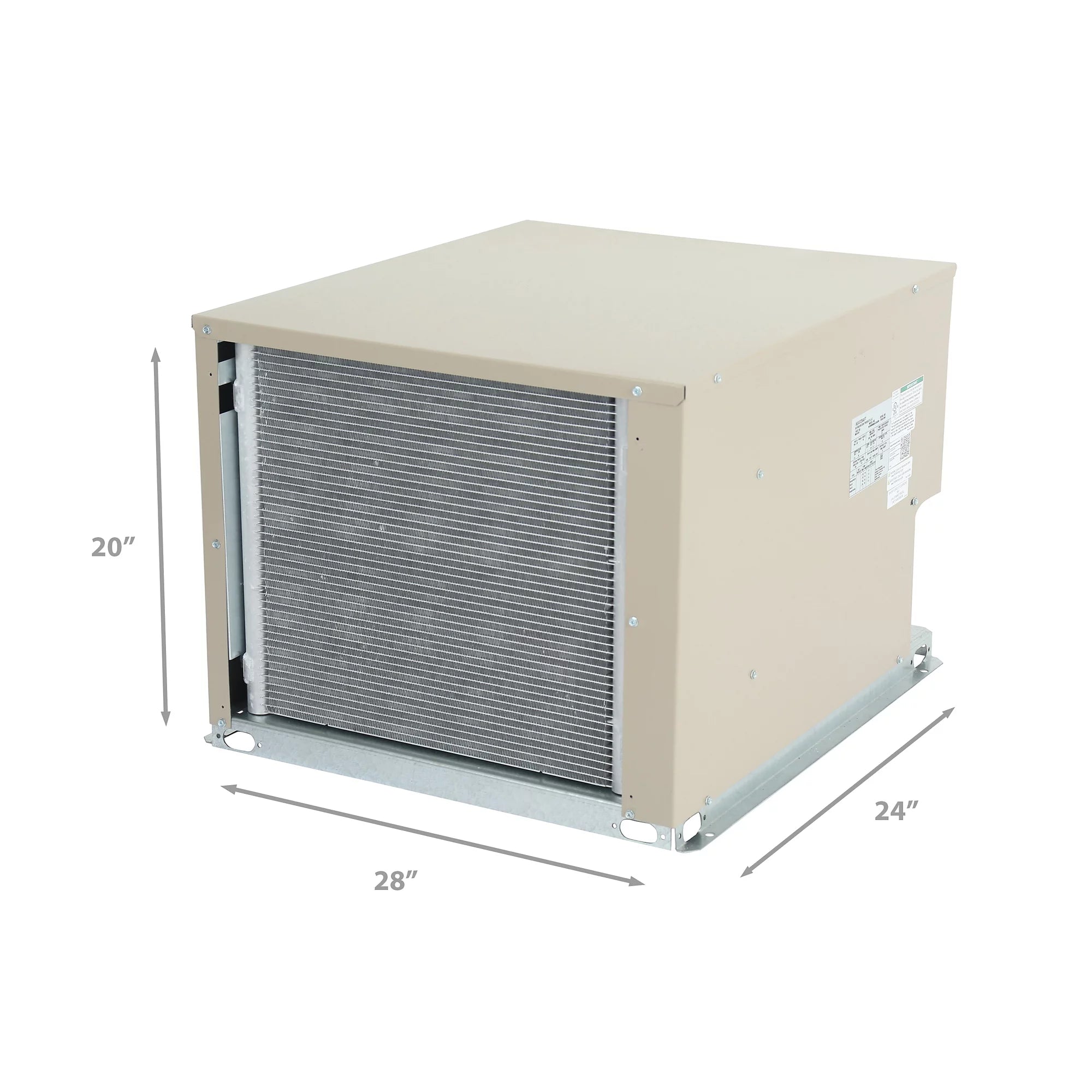

Height (In.): 19.75
-
Depth In: 28.25
-
Width (In.): 24.625
-
Approx Net Weight (lbs): 168
-
Receiver 90 Pc Full Standard Lbs: 9
-
Sound Data Dba: 61
-
Compressor RLA: 4.743589744
-
Compressor LRA: 37.8
-
Fan Motor Qty: 1
-
Fan Motor Fla: 0.5
-
MCA: 15
-
MOPD: 15
-
Fan Motor Amps: 0.5
-
Liquid Od: 0.375
-
Suction Od: 0.625
-
Compressor HP: 3/4 HP
-
Condenser Location: Outdoor
-
Condenser Motor Type: PSC (Permanent Split Capacitor)
-
Condenser Type: Air-Cooled
-
Cycle/Hertz: 60 Hz
-
Energy Star Rated: No
-
Full Load Amps: 0.5
-
Liquid Line Size (OD): 3/8"
-
Suction Line Size (OD): 5/8"
-
UL Listed: Yes
-
UL Recognized: No
-
UOM: EA
-
Minimum Circuit Ampacity (MCA): 15
-
Cooling Capacity: 9900 BTU/Hour
-
Enclosure Finish: Galvanized
-
Frequency Rating: 60 Hertz
-
Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
-
Power Rating: 3/4 HP
-
Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
-
Voltage Rating: 208/230 Volt AC
-
Number of Phases: 3
-
Function: Cooler
-
Series-Brand: Bohn
-
Approval: UL (Canada and US)
