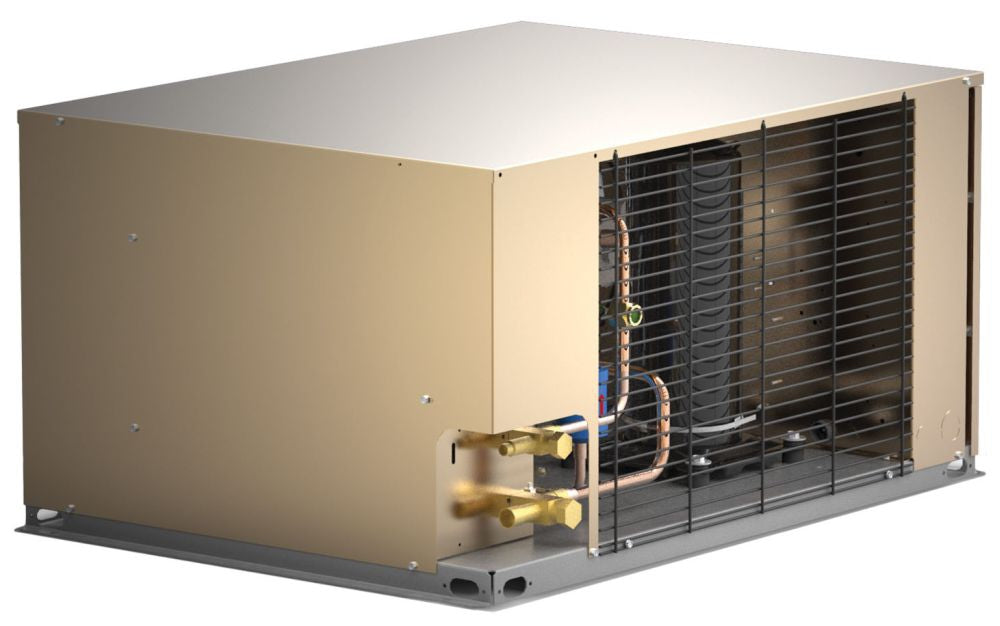

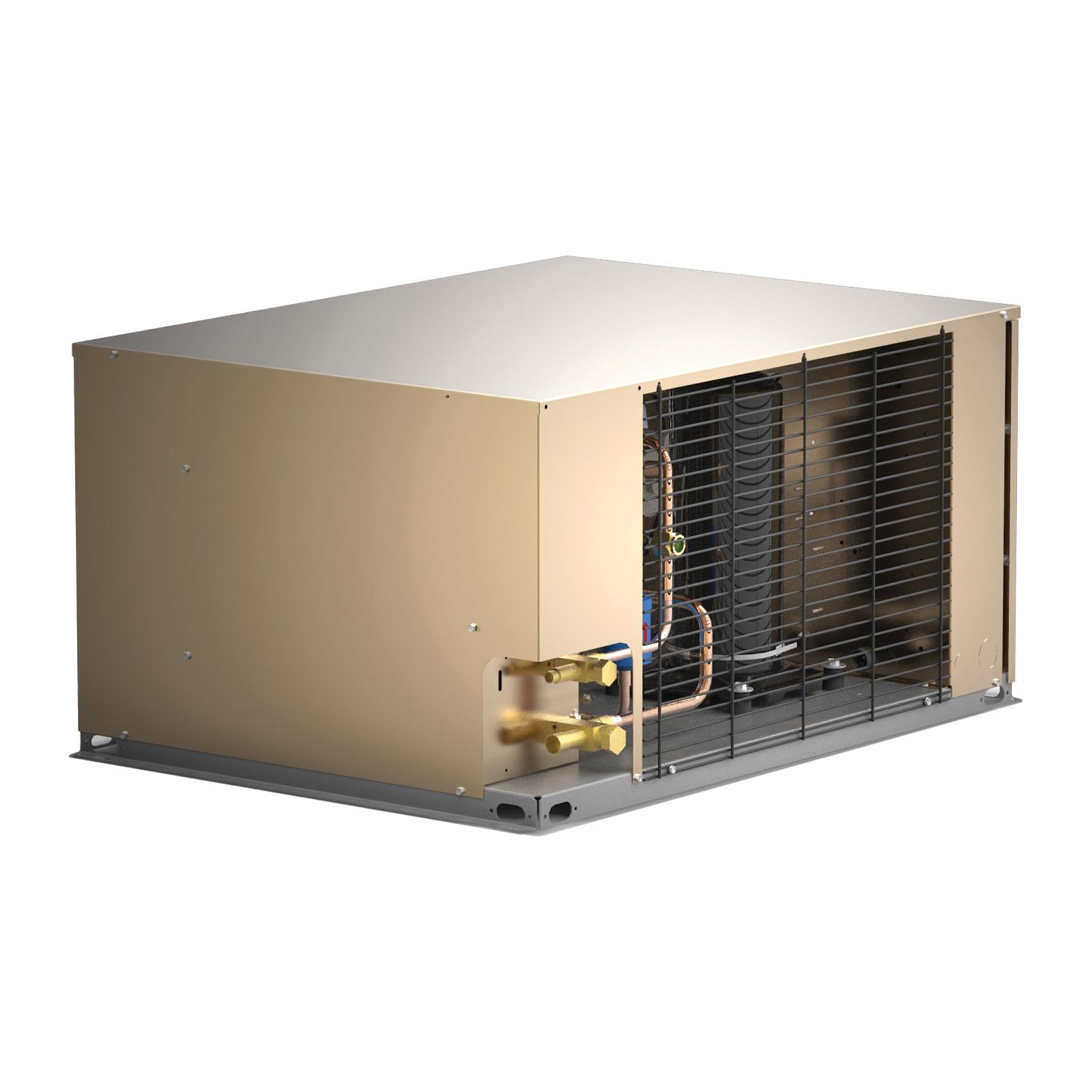

Bohn BCH0009MBACZA0000 Condensing Unit, 3/4 hp 208-230/1 Scroll 3/8 inches x 5/8 inches Air-Cooled

Product Description

The BOHN BCH0009MBACZA0000 condensing unit, with Copeland Hermetic reciprocating or scroll compressors and LG scroll compressors, is designed for flexibility and serviceability. This unit is designed for medium or low temperature applications with either pre-configured option packages or custom configurations for specific applications. It operates at 208 to 230 V.

• Microchannel coil technology standard on all units
• Painted steel cabinets for superior strength and corrosion protection
• Heavy-duty, steel, 1-1/2 in tall-base

Product Highlights

This Bohn condensing unit features painted steel cabinets, a heavy-duty steel base, and a suction service valve for quick installations.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0009MBACZA0000

Technical Specifications

• Temperature: Medium Temperature
• Compressor: Copeland Scroll Compressor
• Base: Standard Base
• Amperage Rating: 15 A
• BTU Rating: 9900 Btu/hr
• Connection Size: 3/8 in Liquid, 5/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• HP Rating: 3/4 hp
• Material: Steel
• Phase: 1 ph
• Refrigerant Type: R-404A
• Sound Level: 61 dBA
• Temperature Rating: 95 deg F
• Voltage Rating: 208 to 230 V
• Cooling Capacity: 9900 BTU/Hour
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Number of Phases: 1
• Approval: UL (Canada and US)
