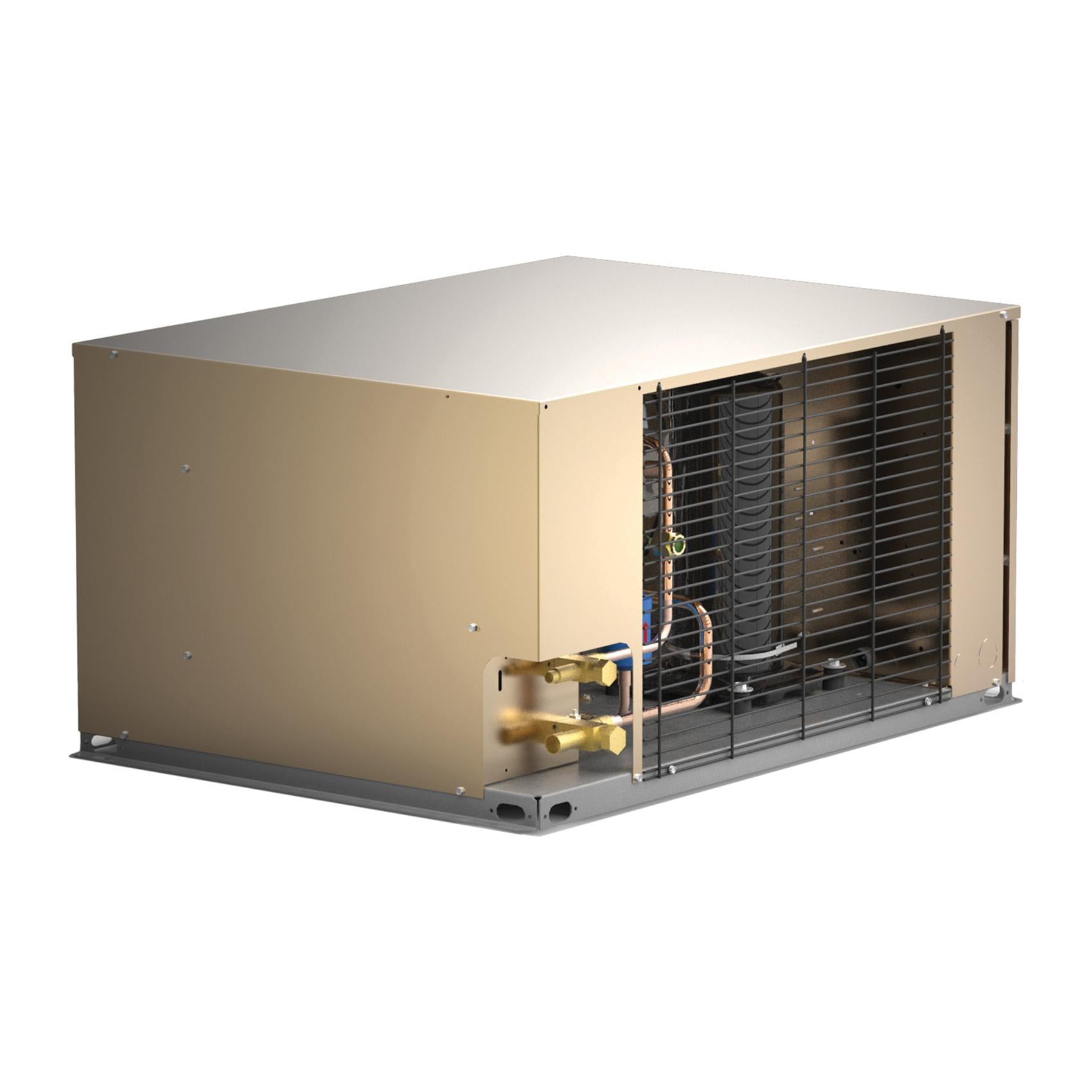

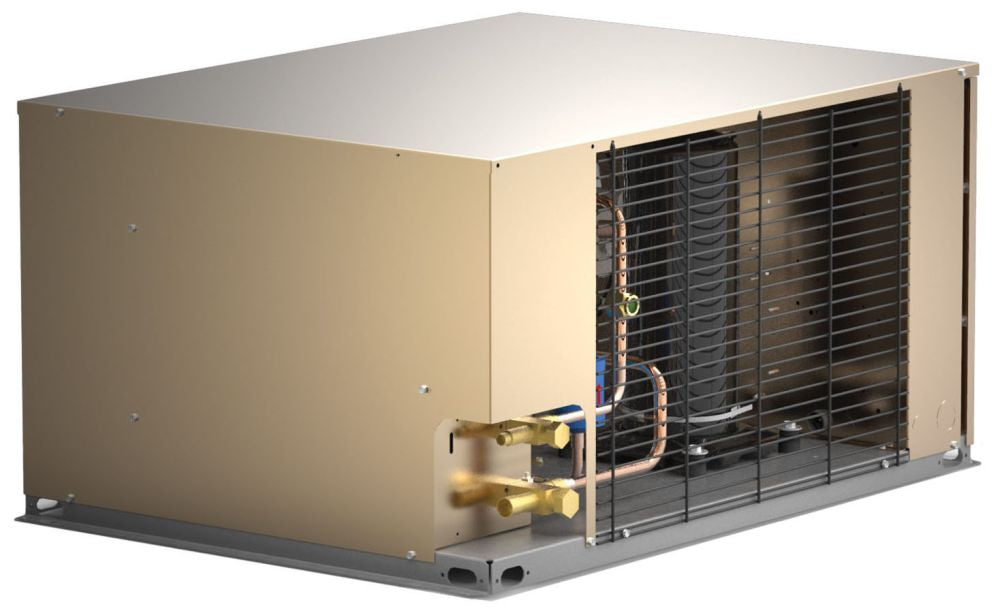

Bohn BCH0008MBACZA0000 Air-Cooled Condensing Unit 3/4 HP

Product Description

The BOHN BCH0008MBACZA0000 is an air-cooled condensing unit designed for medium temperature applications. It features a Copeland Scroll compressor and a microchannel coil. The unit is designed for flexibility and serviceability with externally mounted piping connections and removable cabinets for easy access to service components. It is approved for use with R-404A, R-507A, R-448A, R-449A, R-407A and R-407C refrigerants and is configured to meet minimum AWEF requirements.

• Utilizes a Copeland Scroll compressor.
• Features a microchannel coil condenser.
• Designed for horizontal air discharge.

Product Highlights

This Bohn air-cooled condensing unit is designed for medium temperature applications and utilizes a Copeland Scroll compressor. It features a microchannel coil condenser and is designed for horizontal air discharge.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0008MBACZA0000

Technical Specifications

• Brand: Bohn
• MPN: BCH0008MBACZA0000
• Product Type: Air-Cooled Condensing Unit
• Application: Medium Temperature, Cooler
• Compressor Type: Scroll
• Compressor Model Number: ZB07KAE-PFV
• Horsepower: 3/4
• Input Voltage: 208-230/1/60
• Refrigerant: R-404A, R-507A, R-448A, R-449A, R-407A, R-407C
• Capacity BTUH: 8,980
• Ambient Temperature: 95° F
• Suction Temperature: 25° F
• MCA: 15
• MOPD: 15
• Receiver Capacity 90 % Full: 9 Lbs.
• Liquid Line Size: 0.375 In.
• Suction Line Size: 0.625 In.
• Width: 24.625 In.
• Depth: 28.25 In.
• Height: 19.75 In.
• Sound Level: 61 dBa
• Amperage Rating: 15 A
• Connection Size: 3/8 in Liquid, 5/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• Phase: 1 ph
• Temperature Rating: 95 deg F
• Voltage Rating: 208 to 230 V
• Cooling Capacity: 8980 BTU/Hour
• Enclosure Finish: Galvanized
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Power Rating: 3/4 HP
• Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
• Number of Phases: 1
