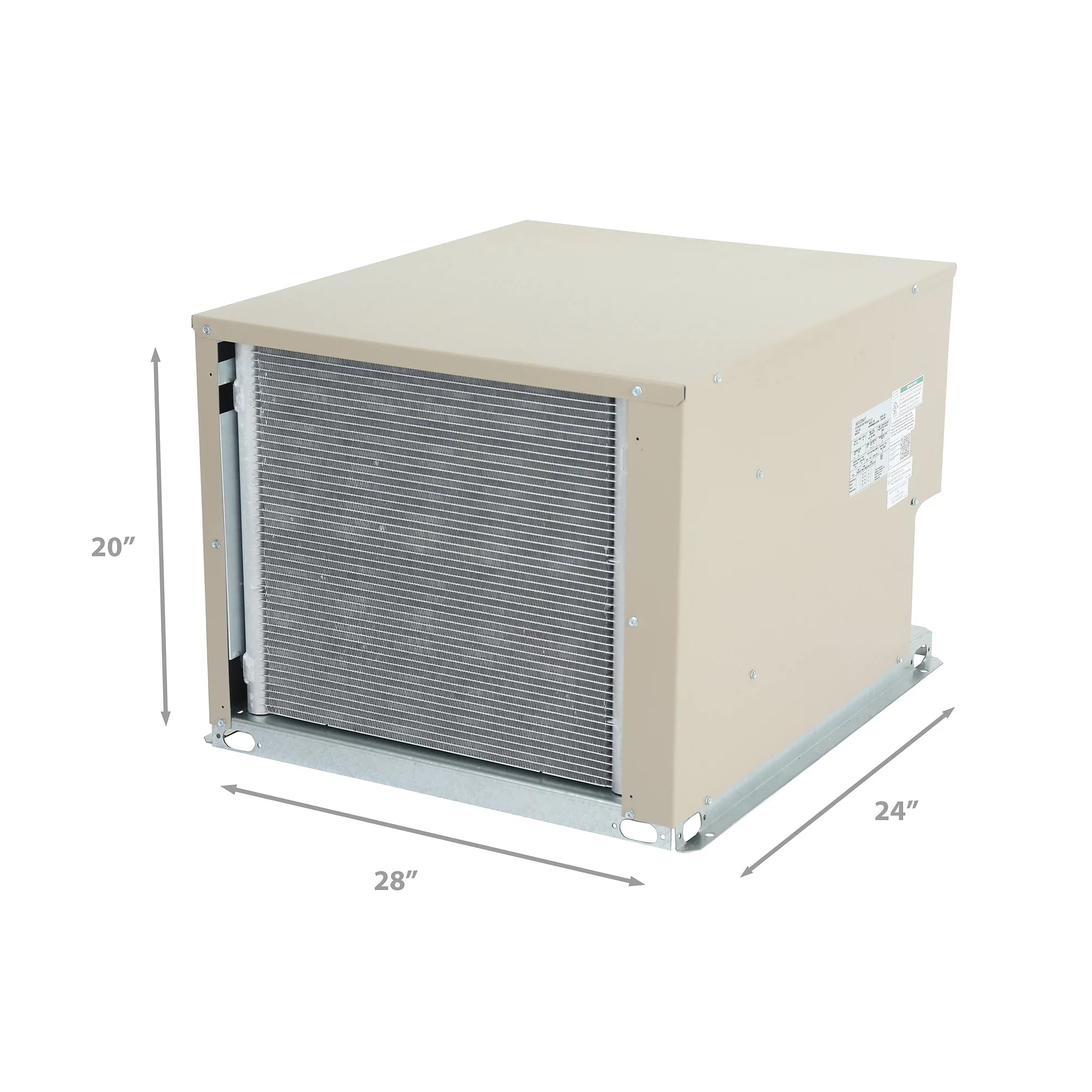

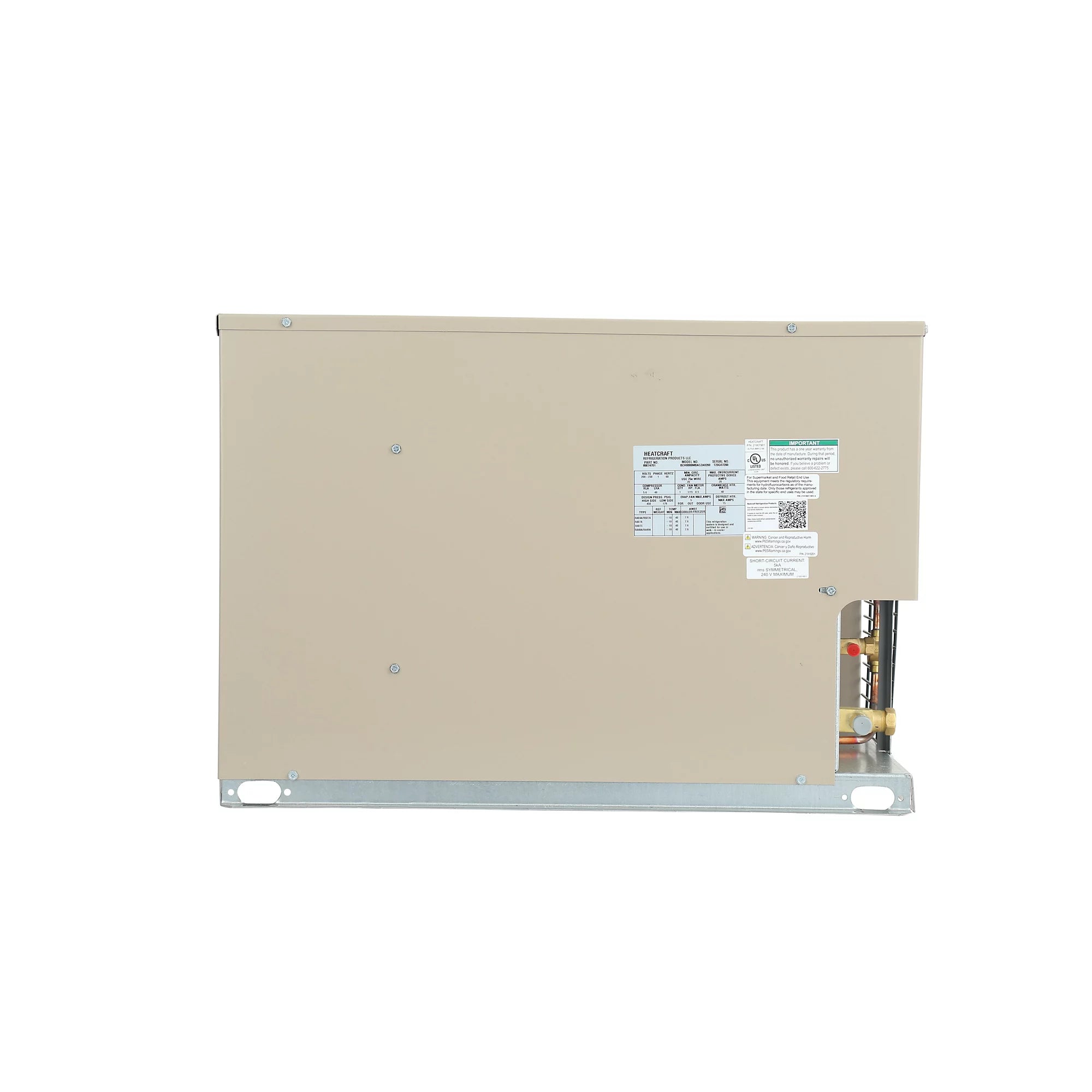

Bohn BCH0005MCACZA0000 Condensing Unit Scroll Compressor 0.5 hp Outdoor Air-Cooled

Product Description

The BOHN BCH0005MCACZA0000 is a 0.5 HP Condensing Unit featuring a Scroll Compressor, designed for medium temperature applications. This air-cooled unit operates on 208-230 VAC, three-phase power at 60 Hz, making it suitable for outdoor installations. It supports multiple refrigerants including R-404A, R-407A, R-407C, R-448A, and R-449A. The unit has a rated load amperage of 4.3 A and a minimum circuit ampacity of 15 A.

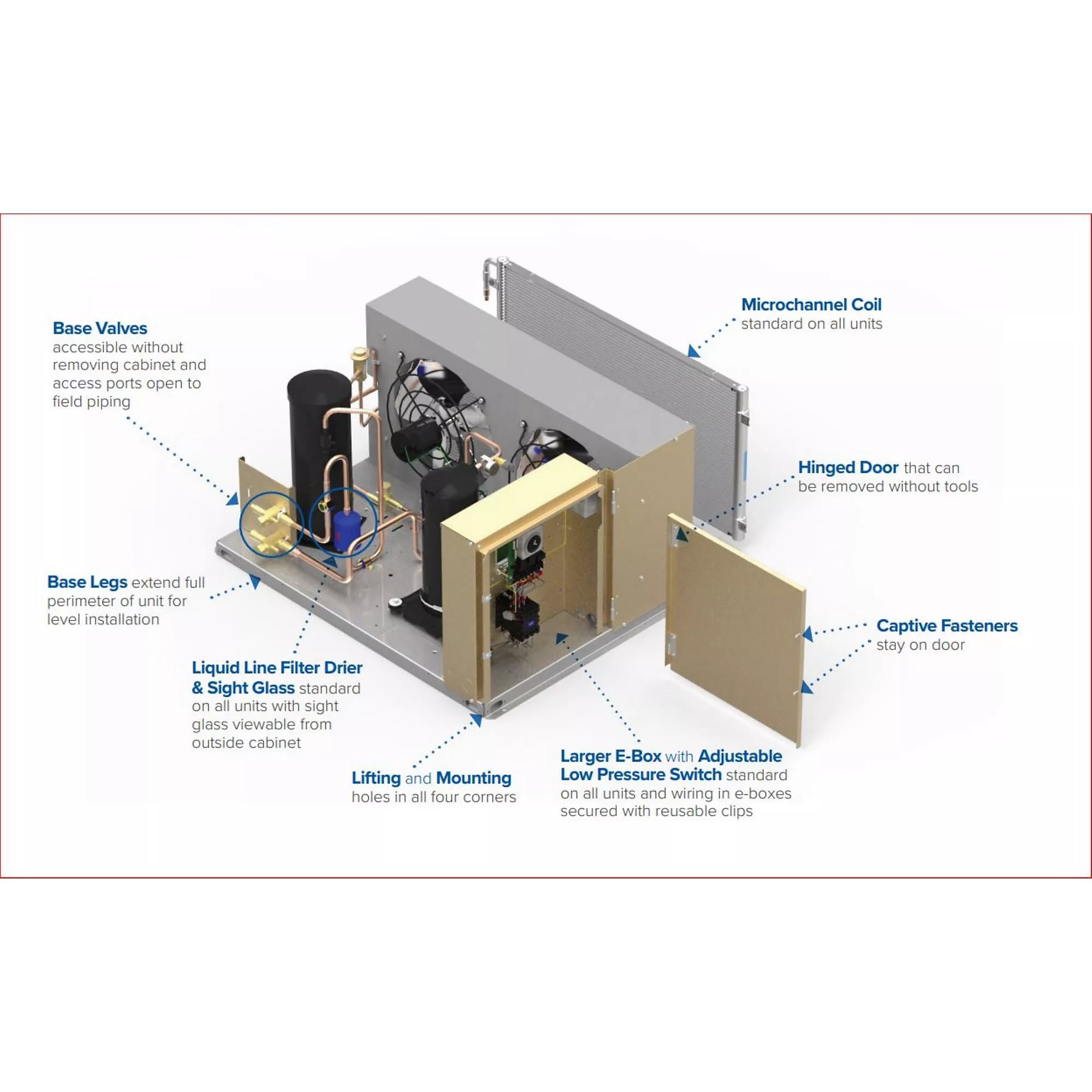

• Microchannel coil technology standard on all units for efficient heat transfer.
• Painted steel cabinets provide superior strength and corrosion protection for durability.
• Heavy-duty, steel, 1-1/2 inch tall-base ensures stable and robust installation.

Product Highlights

This BOHN condensing unit offers robust construction, energy efficiency, and external piping connections for easy serviceability.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0005MCACZA0000
• Country of Origin: USA

Technical Specifications

• Amperage Range: 5-15 A
• Application Temperature: Medium Temperature
• Compressor Horsepower: 0.5 HP
• Condenser Location: Outdoor
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Condenser Type: Air-Cooled
• Frequency: 60 Hz
• Energy Star Rated: No
• Liquid Line Size: 3/8 inch OD
• Phase: 3
• Rated Load Amperage (RLA): 4.3 A
• Refrigerant: R-404A; R-407A; R-407C; R-448A; R-449A
• Suction Line Size: 5/8 inch OD
• Input Voltage: 208-230 VAC
• Minimum Circuit Ampacity (MCA): 15 A
• Compressor Type: Scroll
• Country of Origin: USA
• UL Listed: Yes
• UL Recognized: No
• Cooling Capacity: 7660 BTU/hr
• Finish: Painted
• Material: Steel
• Sound Level: 61 dBA
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Certifications: UL (Canada and US)
• Air Discharge Type: Horizontal
