Bohn BCH0005MBACZA0000 Air-Cooled Condensing Unit 1/2 HP

Product Description

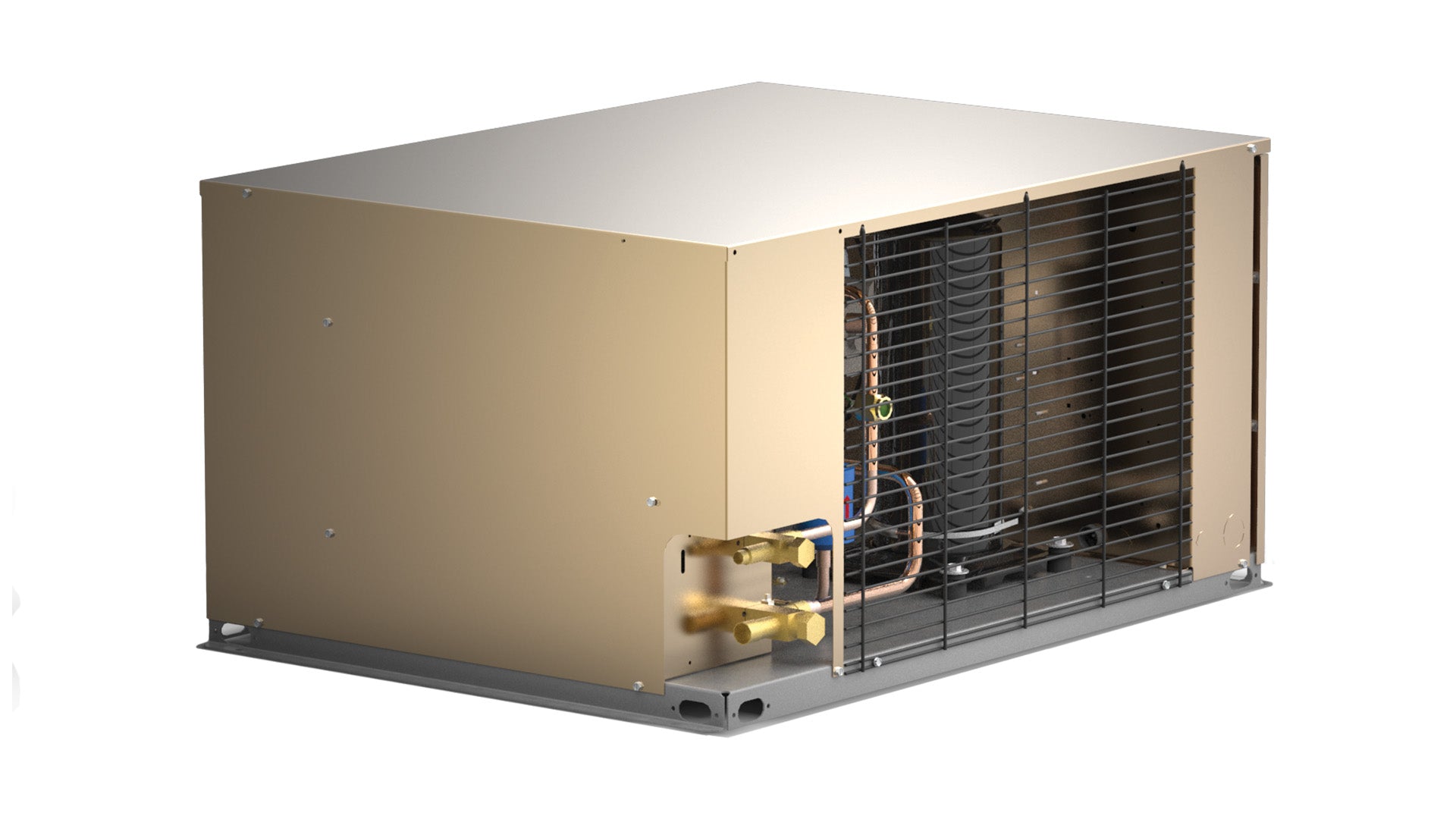

The BOHN BCH0005MBACZA0000 is an air-cooled condensing unit designed for horizontal air discharge. It utilizes a Copeland Scroll compressor and is suitable for medium temperature applications. The unit features a painted steel cabinet with a heavy-duty steel base for corrosion protection. It operates at 208-230 VAC and 60 Hz. The unit is UL Listed.

• Air-cooled condensing unit designed for horizontal air discharge.
• Utilizes a Copeland Scroll compressor suitable for medium temperature applications.
• Painted steel cabinet with heavy-duty steel base for corrosion protection.

Product Highlights

Air-cooled condensing unit with Copeland Scroll compressor for medium temperature applications. Features include a painted steel cabinet and horizontal air discharge.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: BCH0005MBACZA0000
• Country of Origin: N/A

Technical Specifications

• Brand: Bohn
• MPN: BCH0005MBACZA0000
• Product Type: Air-Cooled Condensing Units
• Application: Medium Temperature
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZB06KAE-PFV
• Horsepower: 1/2
• Voltage: 208-230 VAC
• Phase: Single
• Cycle/Hertz: 60 Hz
• Refrigerant: R-404A
• Capacity BTUH: 7,660
• Width (In.): 24.625
• Height (In.): 19.75
• Depth In: 28.25
• MCA: 15
• MOPD: 15
• Receiver Capacity 90 % Full (Lbs.): 9
• Liquid Line Size (OD): 3/8"
• Suction Line Size (OD): 5/8"
• Condenser Type: Air-Cooled
• Condenser Location: Outdoor
• Condenser Motor Type: PSC (Permanent Split Capacitor)
• Fan Motor Qty: 1
• Fan Motor Fla: 0.5
• Approvals: UL Listed
• Minimum Circuit Ampacity (MCA): 15
• Country of Origin: USA
• Connection Size: 3/8 in Liquid, 5/8 in Suction
• Finish: Painted
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Material: Steel
• Refrigerant Type: R-404A
• Sound Level: 61 dBA
• Temperature Rating: 95 deg F
• Voltage Rating: 208 to 230 V
• Cooling Capacity: 7660 BTU/Hour
• Enclosure Finish: Galvanized
• Operating Temperature: 95 Deg F (Ambient), 25 Deg F (SST)
• Power Rating: 1/2 HP

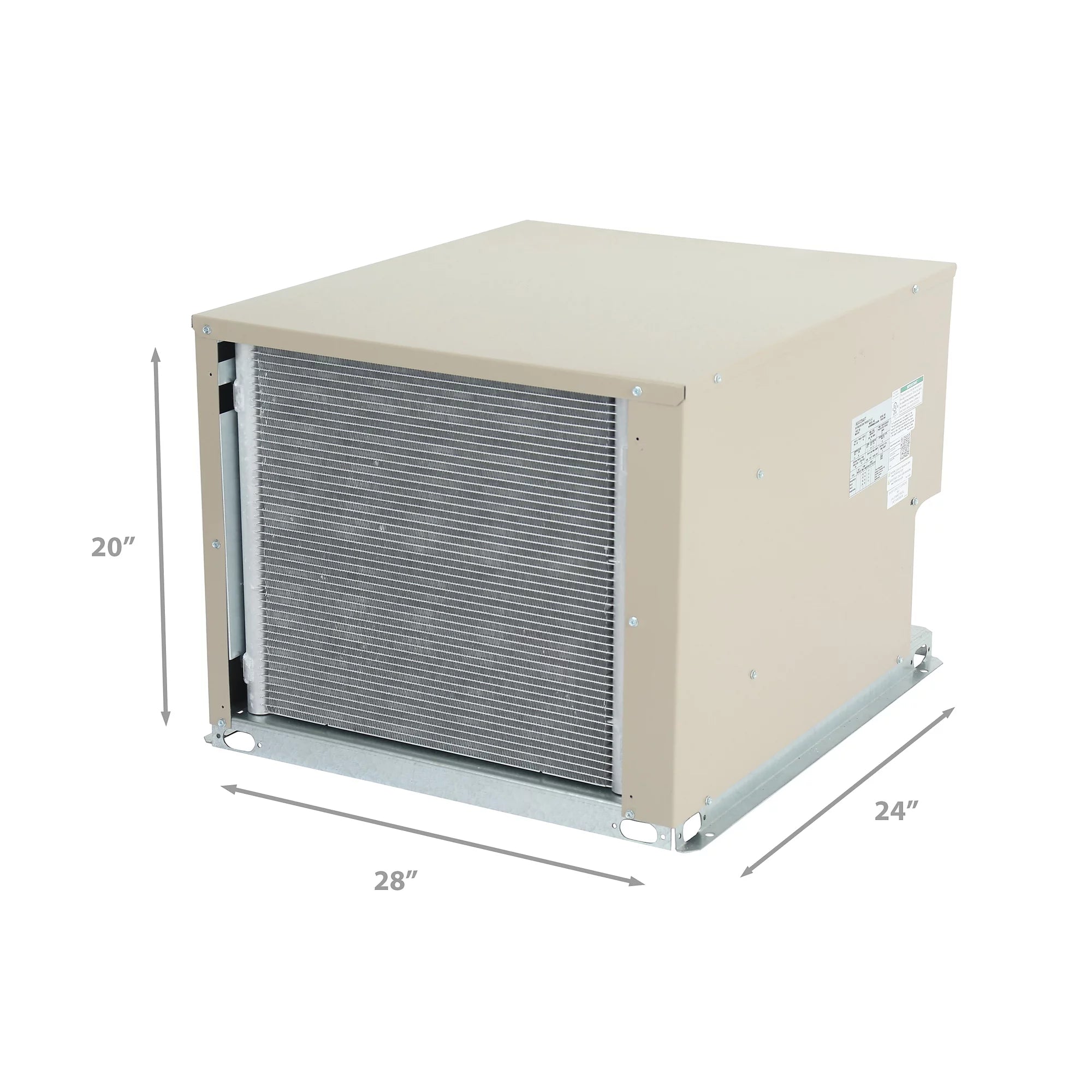

• Size: 25-1/8 Inch Width x 28-1/4 Inch Depth x 19-3/4 Inch Height
• Type: Medium Temperature, Horizontal Air Discharge, Heavy Duty, Auto-Reset, Scroll Compressor
• Number of Phases: 1
