Bohn 59320202 0.5 - 6 HP Horizontal Air Discharge Unit

Product Description

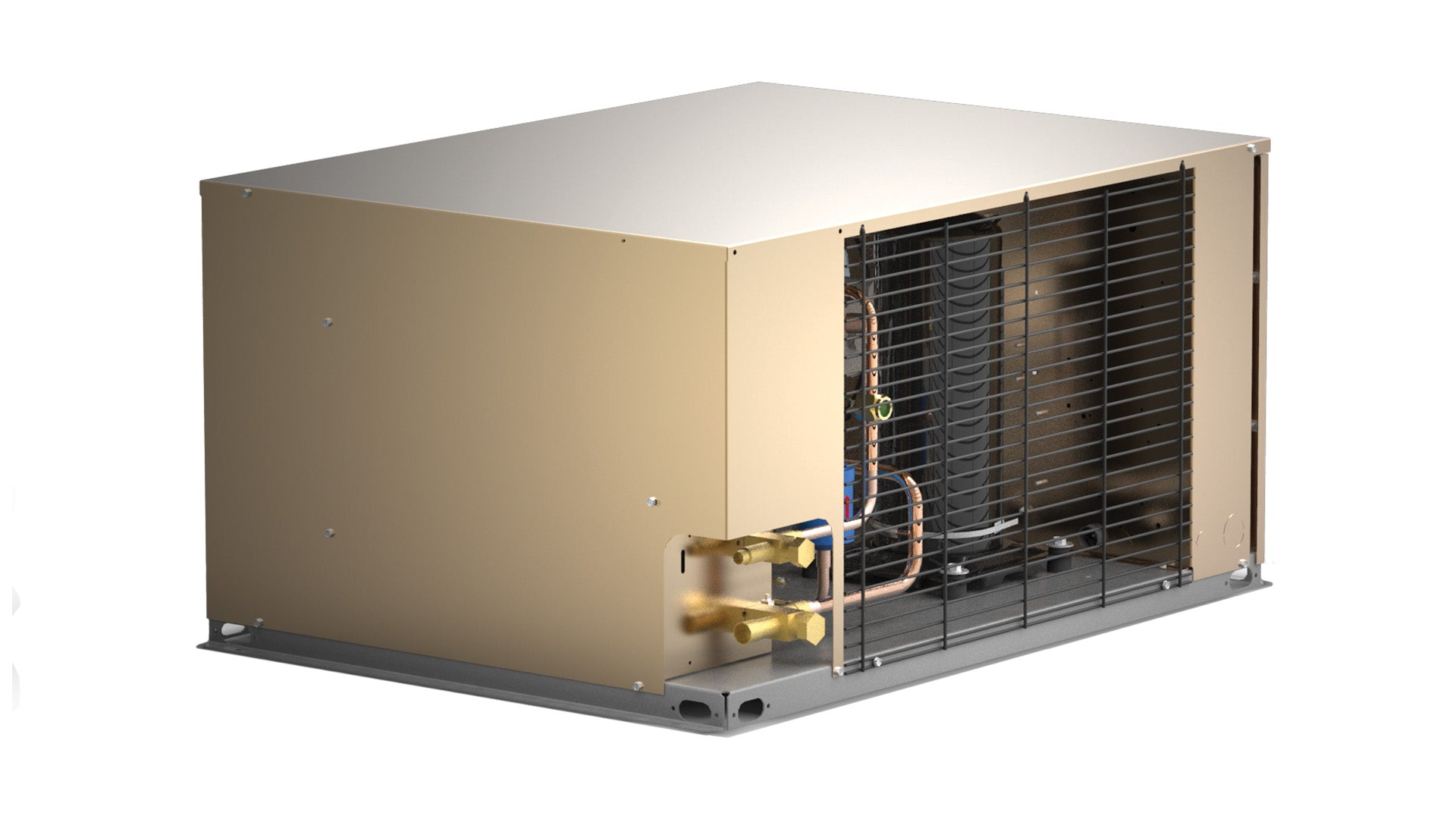

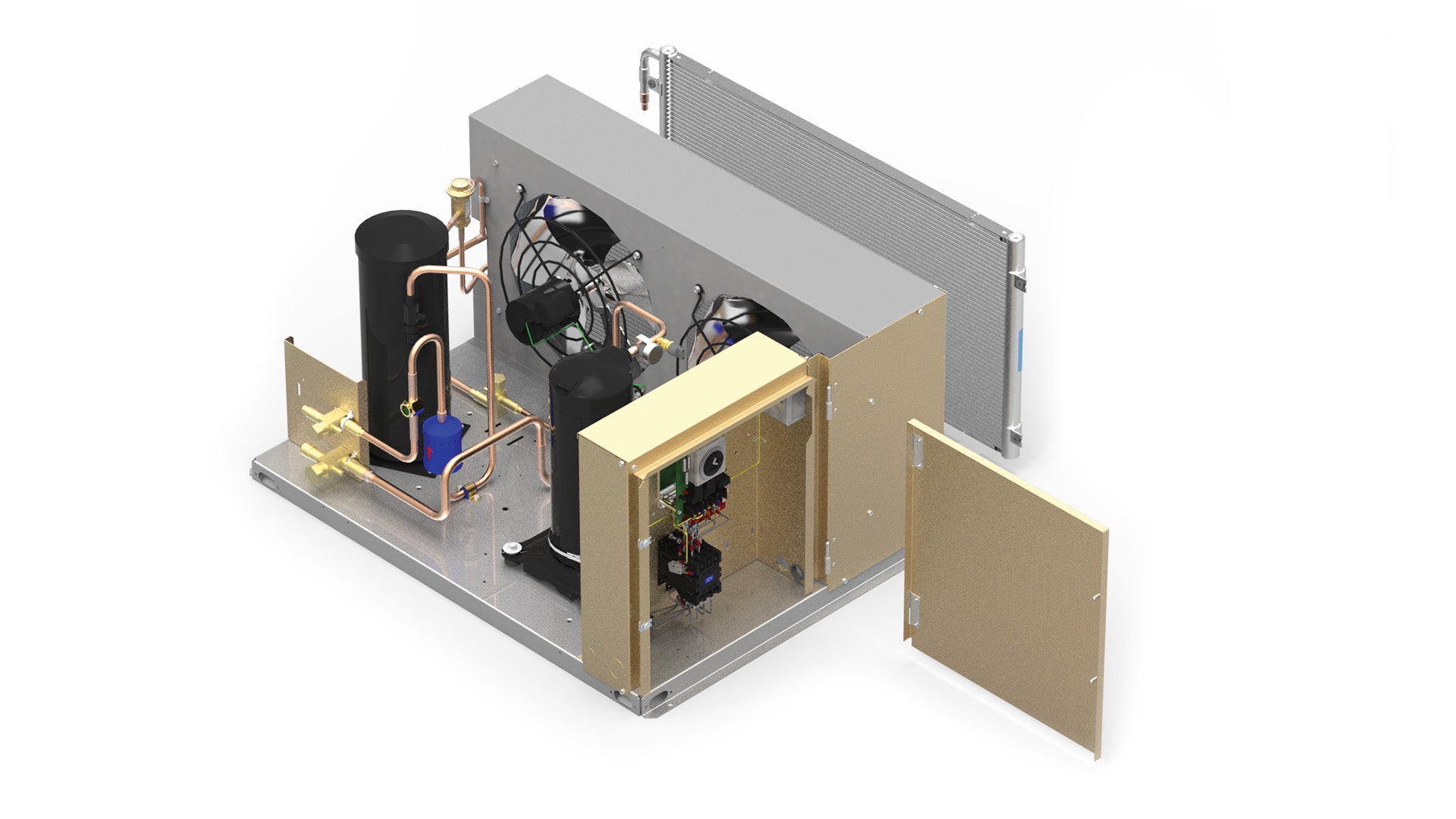

The BOHN 59320202 0.5 - 6 HP Horizontal Air Discharge unit is an air-cooled condensing unit designed for flexibility and serviceability. It utilizes a Copeland Hermetic reciprocating or Scroll compressor, and LG scroll compressors. Suitable for medium or low-temperature applications, it can be configured with pre-configured option packages or custom configurations.

• Designed for 0.5 to 6 HP applications.
• Features a Copeland Hermetic reciprocating or Scroll compressor.
• Suitable for medium temperature cooler applications.

Product Highlights

Air-cooled condensing unit with Copeland Hermetic reciprocating or Scroll compressor, suitable for medium temperature cooler applications.

Product Information

Standard Information

• Brand: BOHN
• Manufacturer Part Number: 59320202

Technical Specifications

• Brand: Bohn
• MPN: 59320202
• Product Type: Air-Cooled Condensing Units
• Product Category: Condensing Units and Packaged Systems
• Product Style: 0.5 - 6 HP Horizontal Air Discharge
• Product Classification: current
• Application: cooler
• Operating Range: Medium Temperature
• Compressor Type: Scroll
• Compressor Model Number: ZB07KAE-TF5
• Voltage: 208-230/3/60
• Cabinet: C1
• Condenser Coil Type: Microchannel Coil
• Rating Point: 95° F Ambient 25° F SST
• Ambient Temperature: 95° F
• Suction Temperature: 25° F
• Capacity: 8,980 BTUH
• Refrigerant: R-404A
• Height (Inches): 19.75
• Depth (Inches): 28.25
• Width (Inches): 24.625
• Receiver Capacity (lbs): 9
• Sound Level (dBA): 61
• Compressor RLA: 4.679487179
• Compressor LRA: 37.8
• Fan Motor Quantity: 1
• Fan Motor FLA: 0.5
• MCA: 15
• MOPD: 15
• Liquid Line Size: 0.375
• Suction Line Size: 0.625
