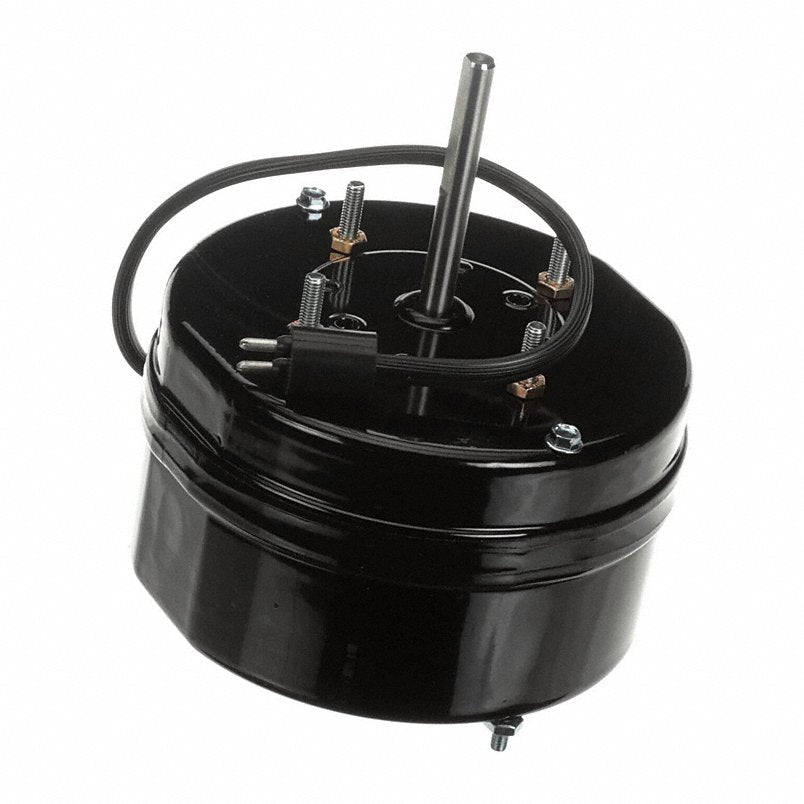

Bohn 25317701s Ec Motor 1/20 Hp 208/230V 1625 Rpm

Product Description

The BOHN 25317701s is a fractional-horsepower electronically commutated (EC) motor designed for evaporator coil applications in commercial refrigeration systems. Rated at 1/20 HP with a 208/230-volt single-phase supply, it runs at 1625 RPM in a counterclockwise (CCW) rotation. EC motor technology delivers improved energy efficiency compared to standard PSC motors, making it well suited for systems where runtime hours are high. Licensed refrigeration technicians and commercial HVAC-R service professionals are the primary installers of this component.

This motor is specifically designed for use with BOHN BEL series coils equipped with electric defrost. It is a single-speed unit intended for evaporator fan duty in walk-in cooler and freezer applications where electric defrost ADT and LET coil configurations are standard. Its 208/230-volt rating makes it compatible with typical single-phase commercial refrigeration electrical service found in food service and cold storage environments.

Key Features

• 1/20 HP EC motor for improved energy efficiency over standard PSC designs
• 208/230-volt single-phase input for compatibility with commercial refrigeration circuits
• 1625 RPM operating speed with counterclockwise rotation
• Single-speed operation matched to BEL electric defrost coil airflow requirements
• Compact form factor suitable for evaporator fan section mounting

Compatibility

Designed for use with BOHN BEL series electric defrost evaporator coils, specifically ADT and LET coil configurations requiring a single-speed EC evaporator fan motor.

Installation Notes

Installation should be performed by a qualified refrigeration or HVAC-R technician. Disconnect and lock out all electrical power to the refrigeration unit before removing the existing motor or handling wiring connections. Verify that the replacement motor shaft rotation matches the original CCW requirement before energizing the system, as reversed airflow will reduce coil performance. Follow applicable local electrical codes and the equipment manufacturer's wiring diagram during reinstallation.

Technical Specifications

• Horsepower: 1/20 HP
• Voltage: 208/230 volts
• Phase: Single phase
• Speed: 1625 RPM
• Rotation: Counterclockwise (CCW)
• Speeds: 1
• Motor Type: EC (Electronically Commutated)
• Length: 10.25 inches
• Width: 8.7 inches
• Height: 8.65 inches
• Shipping Weight: 4.68 pounds

Standard Information

• Brand: BOHN
• Manufacturer Part Number: 25317701s
