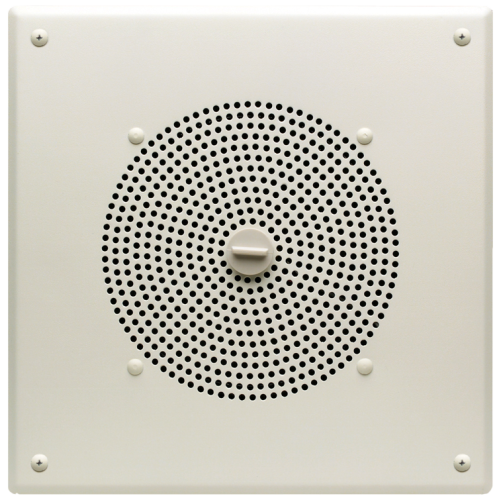

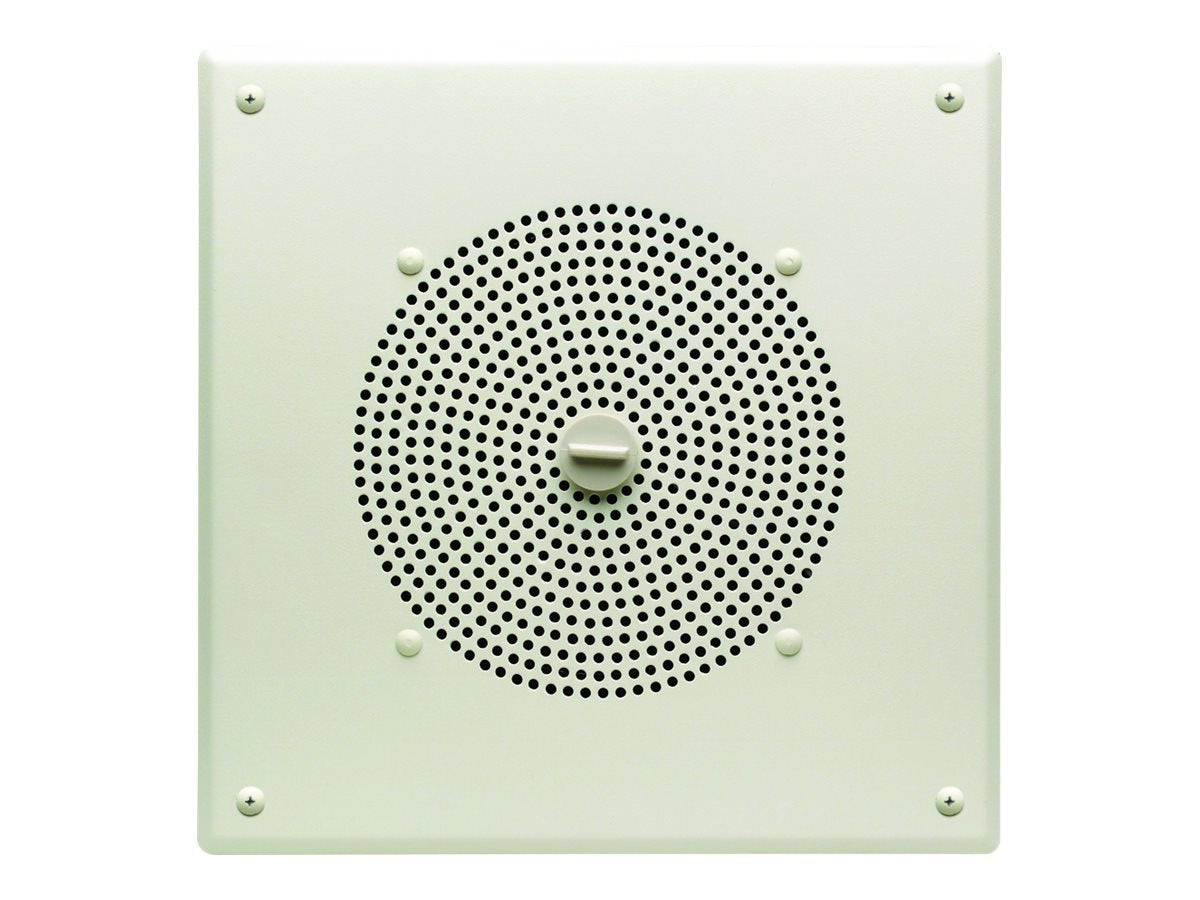

Bogen AMBSL1 Self-Amplified Metal Box Speaker 8 inches

Product Description

The BOGEN AMBSL1 self-amplified metal box speaker features an all-steel surface-mounted enclosure with an 8" cone loudspeaker, built-in 1W amplifier, and volume control. Designed primarily for wall mounting, its face is angled downward by 12.5 degrees. Interfaces with standard 600-ohm telephone line. Mounting hardware included.

• Rugged all-steel surface-mounted enclosure
• Full-range 8" cone speaker for excellent intelligibility
• Self-contained 1-watt amplifier

Product Highlights

The BOGEN AMBSL1 speaker is ideal for paging systems and background music in commercial spaces. Features a built-in volume control with detachable knob and knockouts for Wiremold.

Product Information

Standard Information

• Brand: BOGEN
• Manufacturer Part Number: AMBSL1
• Country of Origin: China

Technical Specifications

• Brand Name: Bogen
• Manufacturer: Bogen Communications
• Product Type: Speaker
• Speaker Size: 8"
• Product Model: AMBSL1
• Product Series: AMBS
• ADI Part Number: BO-AMBSL1
• Impedance: 2000 ohms
• Package Contents: AMBSL1 Self-Amplified Metal Box Speaker Mounting Hardware
• Sensitivity (dB): 92
• Speaker Size (mm): 203.2
• Speaker Installation: Indoor
• Manufacturer Part Number: AMBSL1
• Maximum Frequency Response: 15 kHz
• Minimum Frequency Response: 110 Hz
• Maximum Frequency Response (Hz): 15000
• Minimum Frequency Response (Hz): 110
• Depth: 5.38"
• Width: 11.6"
• Height: 11.4"
• Depth (mm): 136.525
• Width (mm): 295.275
• Form Factor: Wall Mount
• Height (mm): 288.925
• Impedance (Ohm): 2000
• Cone Diameter: 8" (paper)
• Magnet Weight: 170 g
• Power Rating (max.): 1W
• Typical Operational Current: 50 mA
• Supply Voltage: 24V DC
• Frequency Response: 110 - 15000 Hz
• Typical Input Sensitivity: 125 mV
• Maximum Sound Pressure Level: 92 dB @ 1 Meter on axis, 1W output
• Dispersion (min.): 100°
• Connection Type: 2 Conductor Speaker Wire
• Category: Speakers
• Description: Bogen AMBSL1 - Speaker - off-white
• Header / Brand: Bogen
• Packaged Quantity: 1
• Speaker System / Amplification Type: Active
• Speaker System / Connectivity Technology: Wired
• Speaker System / Response Bandwidth: 110 - 15000 Hz
• Voltage Required: DC 24 V
• Amplifier: Integrated
• Amplifier Input Impedance: 2 kOhm
• Amplifier Output Power: 1W
• Coverage: 100°
• Max Output Level (Max SPL): 92 dB
• Recommended Placing: Wall-mountable
• Speaker Type: Active
• Driver Details: Speaker: full-range driver - 8"
