Bobrick 540 Surface-Mounted Toilet Tissue Dispenser and Utility Shelf

Product Description

The Bobrick B-540 is a surface-mounted toilet tissue dispenser and utility shelf. This unit is made from Type-304, 14-gauge stainless steel. It includes a shelf with a 1/4 inch upward return front edge. The dispenser post has a diameter of 3/4 inch, while the dispenser bar measures 3/8 inch in diameter. A concealed set screw secures the bar. The retaining pin is 1/4 inch in diameter and pressed into the bar. The wall plate is designed with two screw holes for secure attachment. It can hold standard-core toilet tissue rolls with a diameter of up to 4-1/2 inches, supporting 500 sheets.

• Constructed with Type-304, 14-gauge stainless steel.
• Features a shelf with a 1/4 inch upward return front edge.
• Holds standard-core toilet tissue rolls up to 4-1/2 inches in diameter.

Product Highlights

The design supports easy access to supplies while ensuring durability and style.

Product Information

Standard Information

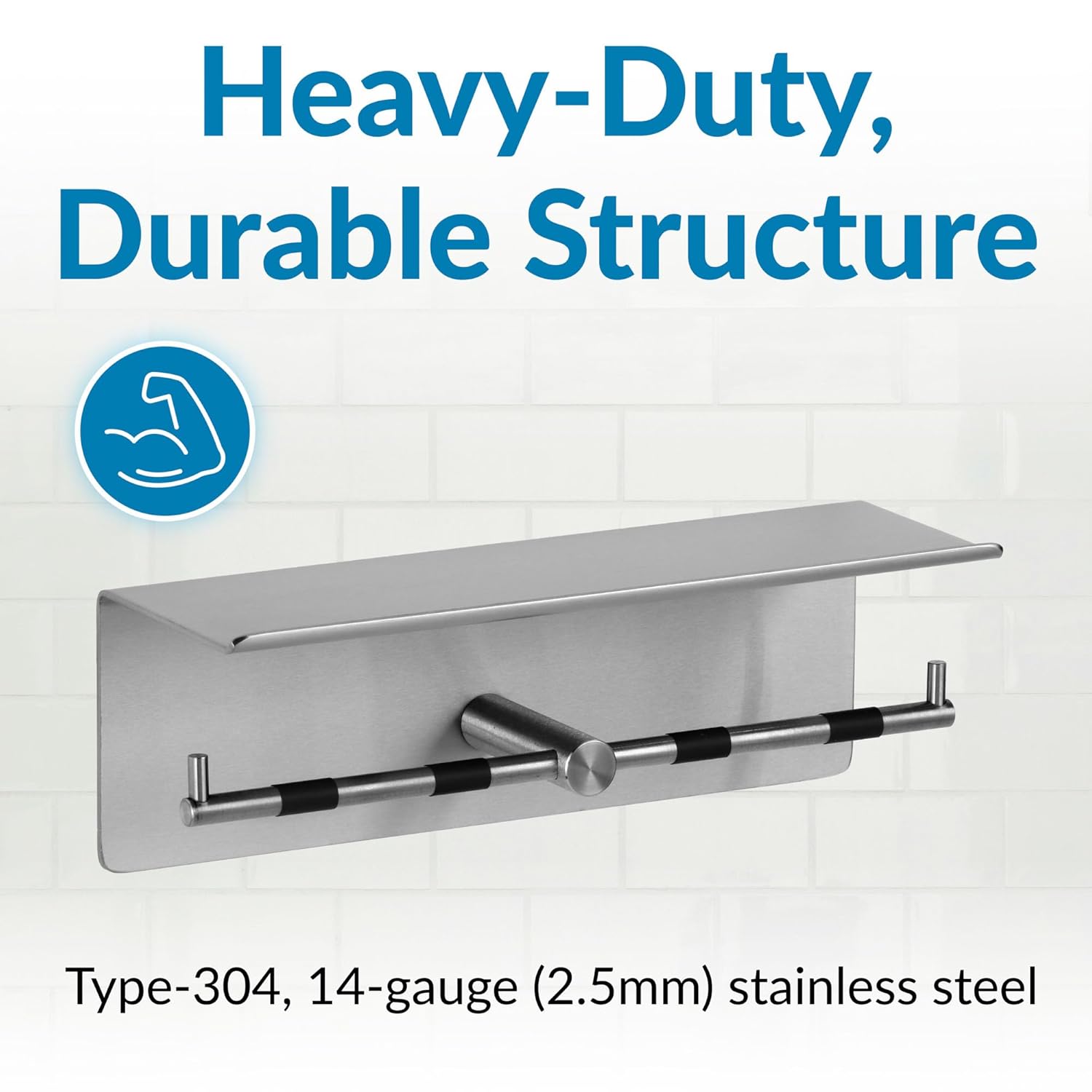

• Material: Type-304, 14-gauge stainless steel

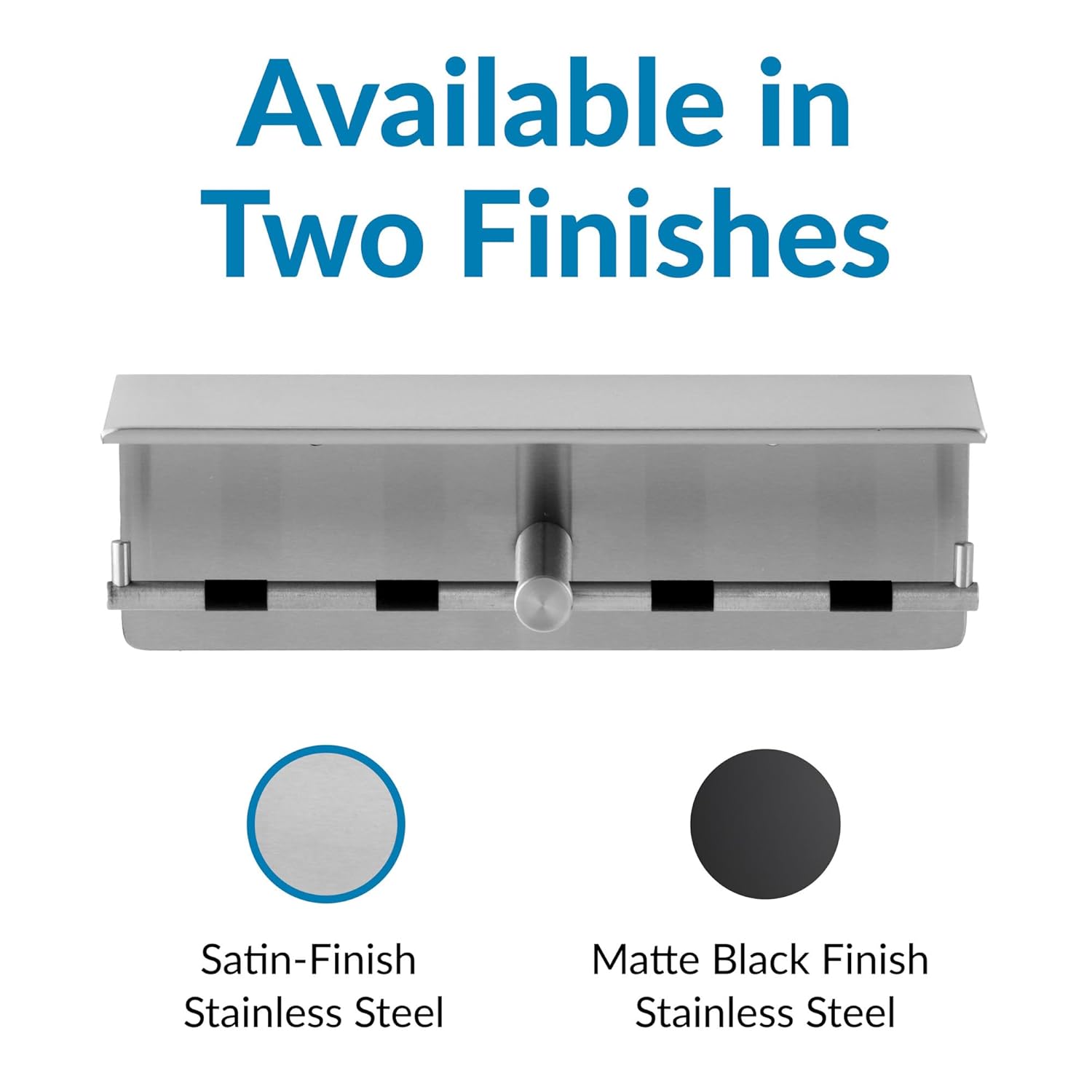

• Finish: Satin-finish stainless steel

Technical Specifications

• Mounting Type: Surface mounted
• Capacity: Double roll
• Width: 11 inches
• Depth: 3.75 inches
• Height: 3.75 inches
• Roll Type: Standard
• Dispenser Type: Open
• Installation Type: Wall mounted
• Shelf Front Edge: 1/4 inch upward return
• Toilet Tissue Dispenser Post Diameter: 3/4 inch
• Dispenser Bar Diameter: 3/8 inch
• Retaining Pin Diameter: 1/4 inch
• Toilet Tissue Roll Capacity: Up to 4-1/2 inch diameter
