Bobrick 50517 Heavy Duty Specimen Pass-Through Cabinet

Product Description

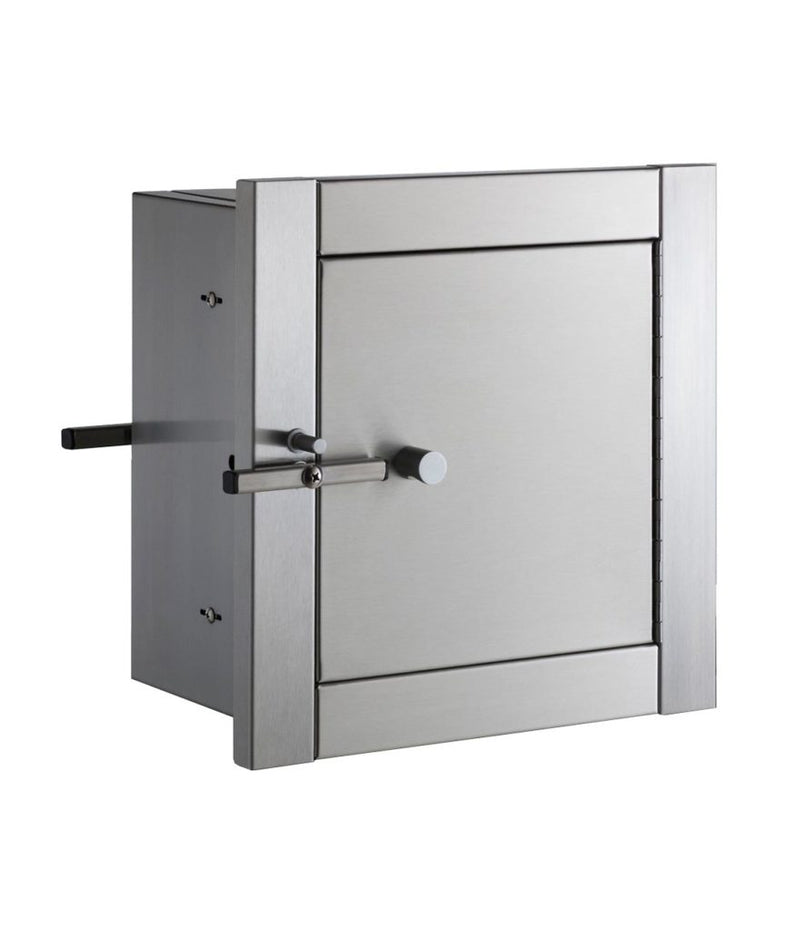

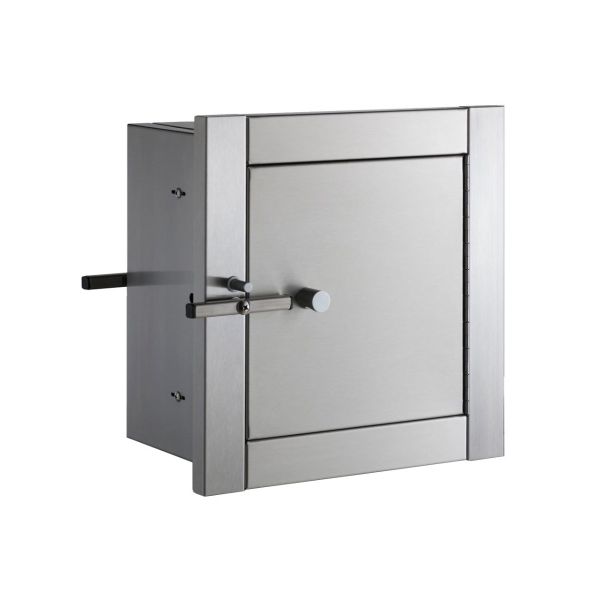

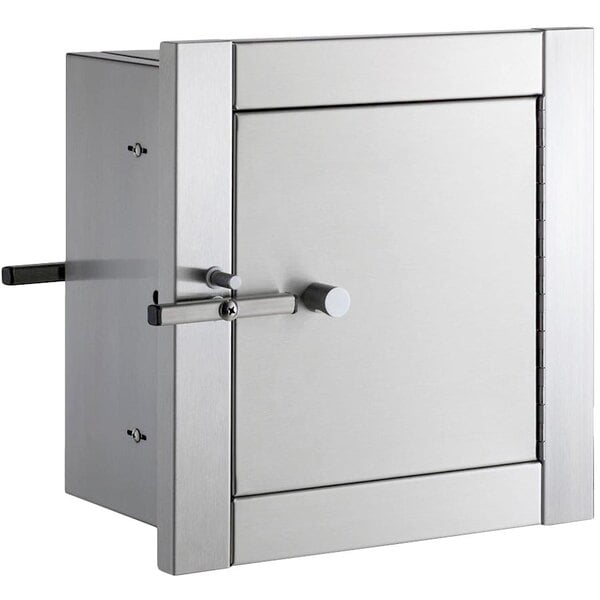

The Bobrick B-50517 is a heavy-duty pass-through cabinet for specimen transfer between patient areas and laboratories. This cabinet is made of type 304 stainless steel and features a satin finish. It has an adjustable flange for installation in walls ranging from three to ten inches thick. The interlocking mechanism ensures that both doors cannot open at the same time, creating a sight barrier for enhanced privacy. The cabinet also includes a removable stainless steel spillage tray for easy cleaning and maintenance. A rough wall opening of twelve and three-eighths inches wide by twelve and three-eighths inches high is required for installation.

• Made of type 304 stainless steel with satin finish.
• Features an interlocking mechanism to prevent simultaneous door opening.
• Includes a removable stainless steel spillage tray for easy cleaning.

Product Highlights

The cabinet is designed for easy access and provides ADA compliance, ensuring it meets accessibility standards.

Product Information

Standard Information

• Brand: Bobrick
• MPN: 50517

Technical Specifications

• Material: Type 304 stainless steel
• Finish: Satin finish
• Mounting Type: Wall Mounted
• Wall Thickness: Three to ten inches
• Rough Wall Opening: Twelve and three-eighths inches W x twelve and three-eighths inches H
• Cabinet Material: 20 gauge (0.9mm) Type 304 stainless steel
• Width: Thirteen and one-half inches
• Height: Thirteen and one-half inches
• Depth: Eleven inches
• Accessibility: ADA Compliant
