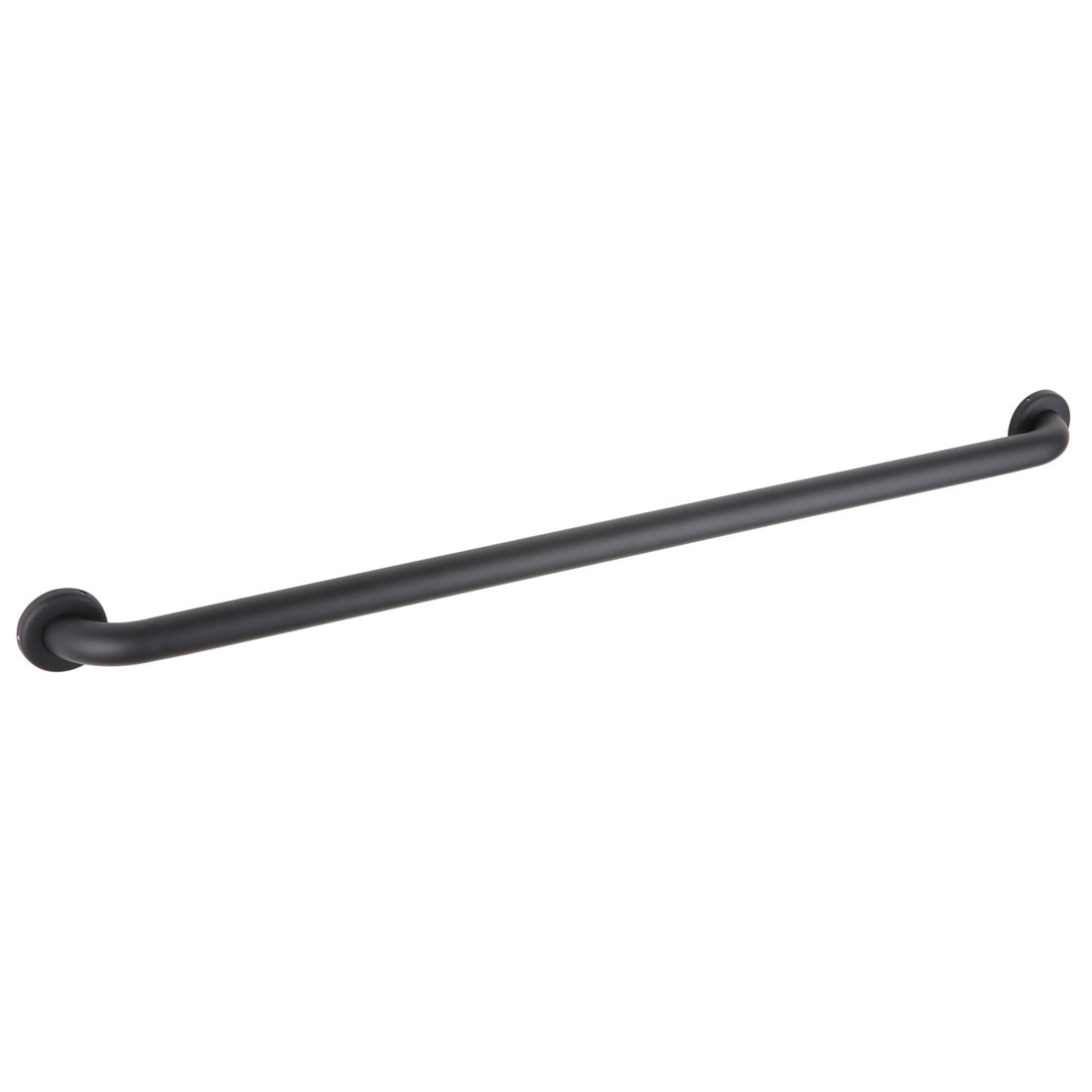

Bobrick 150CX18.MBLK 18 inches Straight Grab Bar

Product Description

The Bobrick 150CX18.MBLK is a commercial-grade safety solution that offers durability and ADA compliance. Featuring a matte black finish, this 18" straight grab bar is suitable for high-traffic restrooms in hospitality, healthcare, education, and commercial facilities. It is engineered from type 304 stainless steel to provide support and blend into contemporary washroom designs.

• Constructed from type 304 stainless steel with a matte black finish.
• Features concealed mounting flanges for a seamless look.
• ADA compliant for accessibility standards.

Product Highlights

This Bobrick grab bar provides a dependable safety solution with a modern design, ideal for commercial restrooms requiring ADA compliance.

Product Information

Standard Information

• Brand: BOBRICK
• Manufacturer Part Number: 150CX18.MBLK

Technical Specifications

• MPN: B-150CX18.MBLK
• MATERIALS Tubing: Fabricated of type 304 stainless steel. Exposed surfaces are powder-coated matte black.
• Concealed Flange: 1/2" (13mm) deep, type 304 stainless steel, 3" (76mm) in diameter furnished with 3 stainless steel set screws and one back plate. Flanges and center posts are welded to tubing.
• MOUNTING: Clearance is distance between finished wall surface and inner edge of tubing. Standard clearance furnished is 1-1/2" (38mm). Required mounting height is 33" to 36" (838 to 914mm) from top of grab bar gripping surface to finish floor. 36" (914mm) horizontal grab bar should be installed on back wall and 42" (1067mm) horizontal grab bar installed on side wall or partition stall. Screws (not furnished)
• Length: 18 Inches
• Diameter: 1 1/2 Inches
• Features: ADA Compliant
• Finish: Matte
• Material: Stainless Steel
• Stainless Steel Type: Type 304
• Style: Straight
• Type: Grab Bars
• Product Type: Grab Bar
• Tube Diameter: 1.5"
• Body Material: Type 304 stainless steel
• Configuration: Straight
• Accessibility: ADA Compliant
• Unit of Measure (UOM): Each
• Discontinued: No
