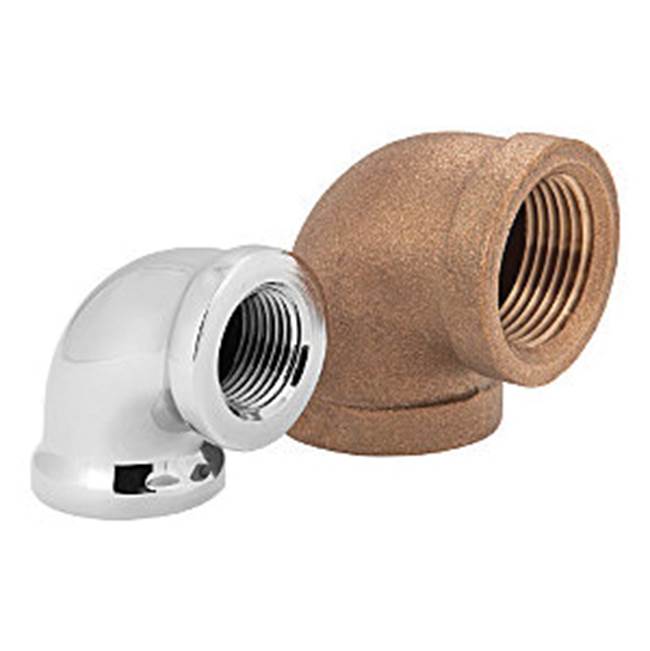

Bmi Usa 6301 Brass 90 Degree Elbow 1/8 Inch Lead Free

Product Description

The BMI USA 6301 is a lead-free brass 90-degree threaded elbow fitting designed for use in plumbing and piping systems where directional changes are required. This compact 1/8-inch fitting connects threaded pipe runs at a right angle and is built from solid brass for corrosion resistance and long service life. At 0.06 pounds, it is a lightweight component suited for tight spaces and confined installations. Licensed plumbers and pipefitters install this type of fitting during new construction and service work where flow direction must be redirected without sacrificing joint integrity.

This fitting is appropriate for residential and light commercial plumbing applications involving 1/8-inch threaded pipe connections. Its lead-free construction makes it suitable for installations subject to lead-free compliance requirements, including potable water systems in jurisdictions enforcing current safe drinking water standards. The threaded design allows for straightforward assembly with standard pipe thread compounds or tape.

Key Features

• Lead-free brass construction meets safe drinking water compliance requirements
• 90-degree elbow configuration for right-angle directional changes in threaded piping
• 1/8-inch threaded connection size for compact piping applications
• Solid brass material provides corrosion resistance and durability
• Lightweight at 0.06 pounds for easy handling in confined spaces

Compatibility

Designed as an OEM-style threaded brass elbow for 1/8-inch pipe thread applications in residential and light commercial plumbing systems.

Installation Notes

Installation is performed by a licensed plumber in accordance with applicable local plumbing codes and IPC guidelines. Shut off the water supply and depressurize the line before disassembling any existing fittings. Apply an appropriate pipe thread sealant or PTFE tape to all male threads before assembly. Do not overtighten, as excessive torque can crack brass fittings or distort threads.

Technical Specifications

• Material: Brass
• Connection Size: 1/8 inch
• Fitting Type: 90 Degree Elbow
• Thread Type: Threaded
• Lead Free: Yes
• Weight: 0.06 pounds

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 6301
