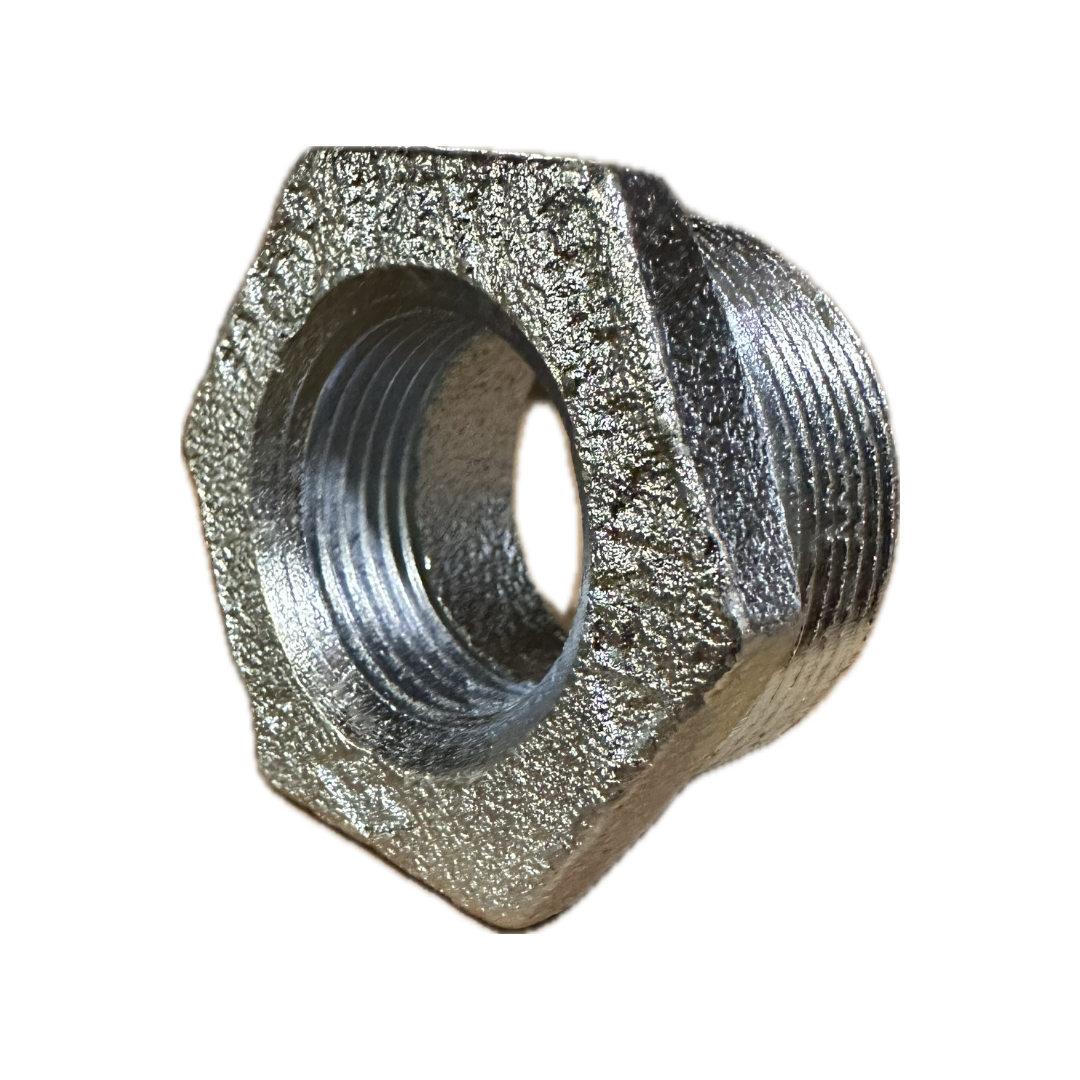

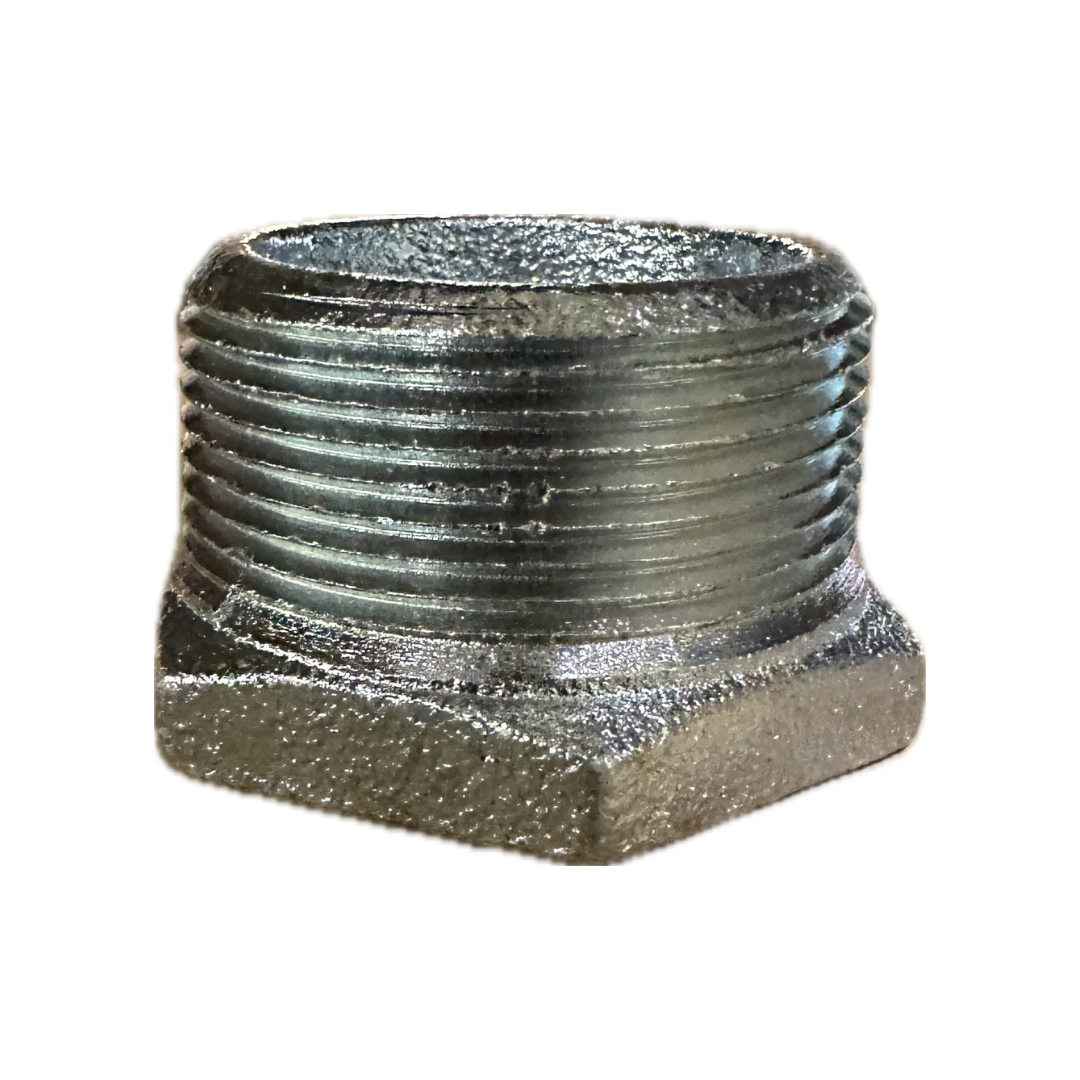

Bmi Usa 36130 Reducing Bushing 1 inches x 1/4 inches

Product Description

The BMI USA 36130 is a galvanized reducing bushing with a galvanized finish that resists rust in water, air, and steam applications. It features female NPT thread end connections and adheres to ASME B16.3, B16.14, and B16.39 standards. Ideal for plumbing and pipe fitting projects requiring durable and reliable connections.

• Galvanized finish helps resist rust in water, air and steam applications.

Product Highlights

The BMI USA Reducing Bushing is suitable for plumbing and pipe fitting projects requiring durable and reliable connections.

Product Information

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 36130

Technical Specifications

• Size (Inches): 1" x 1/4"
• Material Type: Galvanized Malleable Iron
• Product Type: Reducing Bushing
• Pressure Rating: Class #150
• End Connections: Female NPT Thread
• Certifications: UL/cUL, FM, Certified Lead Free, ISO9001, CRN
• Materials: ASTM A197 / A197M
• Dimensions: Fittings ASME B16.3, B16.14, Unions B16.39
• Threads: ASME B1.20.1, ISO 7-1
