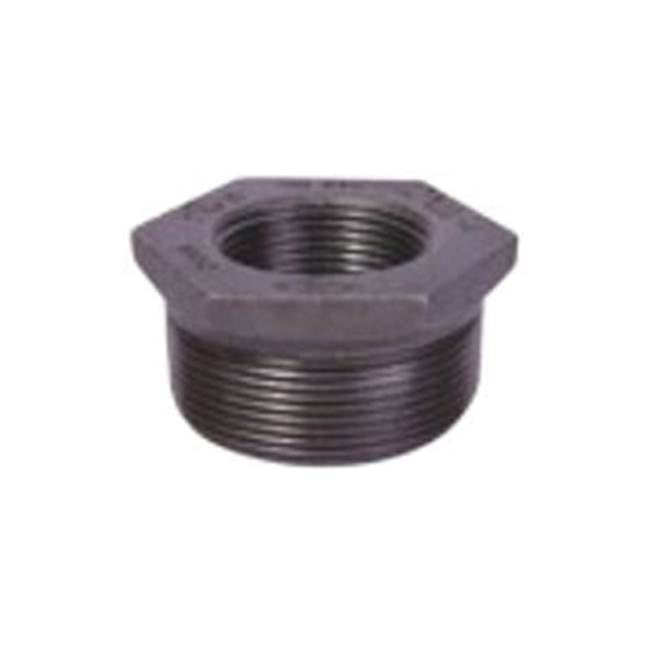

Bmi Usa 35141 Hex Bushing 2x1-1/4 Inch Black Malleable Iron

Product Description

The BMI USA 35141 is a black malleable iron hex bushing used to reduce pipe thread sizes in plumbing and mechanical piping systems. This bushing accepts a 2-inch female thread on the outer hex body and steps down to a 1-1/4-inch male thread on the opposite end. The hex profile allows for standard wrench engagement during installation. At 0.74 pounds, it is a solid, durable fitting suited for use in gas, water, and air piping applications where a threaded reduction is required. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This hex bushing is used in residential and light commercial piping systems where a pipe thread must be reduced from 2 inches to 1-1/4 inches. Common applications include gas supply lines, compressed air distribution, water supply piping, and mechanical room installations where mixed pipe sizes must be joined at a threaded connection. The black finish indicates this fitting is suited for gas and air service rather than potable water unless verified by local code.

Key Features

• Malleable iron construction for durability in threaded piping applications
• Hex body profile allows wrench engagement for proper torque during assembly
• 2-inch female thread by 1-1/4-inch male thread configuration for inline reduction
• Black finish suited for gas and air service piping
• Compact design at 0.74 pounds for easy handling and installation

Compatibility

Designed as an OEM-style threaded hex bushing for use in standard NPT piping systems requiring a 2-inch to 1-1/4-inch threaded reduction.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with local mechanical and plumbing codes such as the IPC or IFGC. Shut off and depressurize the piping system completely before making or breaking any threaded connections. Apply an appropriate thread sealant or PTFE tape to the male threads before assembly. Do not overtighten, as malleable iron threads can crack under excessive torque.

Technical Specifications

• Thread Size (Female): 2 inches
• Thread Size (Male): 1-1/4 inches
• Material: Malleable Iron
• Finish: Black
• Weight: 0.74 pounds
• UPC: 777701351419

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 35141
