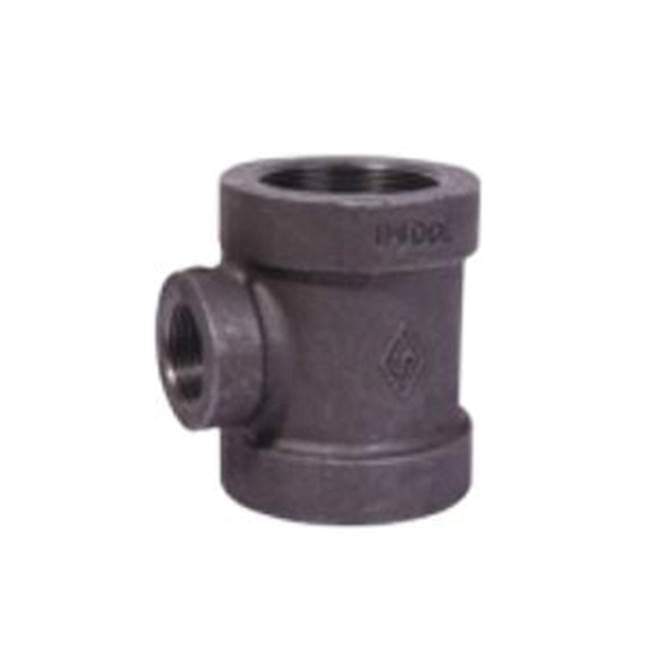

Bmi Usa 20438 Black Malleable Iron Pipe Tee 1x1x3/4 Xh

Product Description

The BMI USA 20438 is an extra heavy black malleable iron pipe tee designed for threaded pipe assemblies in demanding plumbing, gas, and mechanical piping systems. With a reducing configuration of 1 inch by 1 inch by 3/4 inch, this tee allows a branch takeoff from a main run while stepping down to a smaller branch line. The extra heavy wall construction provides greater pressure capacity than standard weight fittings, making it a go-to choice where system integrity and durability are required. Licensed plumbers and pipefitters are the typical installers for this type of fitting.

This tee is suited for use in residential and commercial piping systems where threaded black iron fittings are specified. Common applications include gas distribution piping, steam and condensate lines, compressed air systems, and industrial process piping. The 1 x 1 x 3/4 inch reducing configuration is a frequently used size for branch connections off a main distribution line.

Key Features

• Extra heavy (XH) wall malleable iron construction for higher pressure ratings
• 1 inch by 1 inch run with a 3/4 inch reducing branch outlet
• Black finish suitable for gas piping and industrial applications
• Threaded ends for standard NPT pipe assembly
• Malleable iron provides impact resistance and ductility versus standard cast iron

Compatibility

Designed as an OEM-style threaded fitting for use in standard NPT black iron pipe systems in residential and commercial mechanical, gas, and plumbing installations.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, the International Fuel Gas Code (IFGC), or the International Plumbing Code (IPC) as required by the application. Shut off and depressurize the piping system completely before disassembling or installing any threaded fittings. Apply an approved pipe thread sealant or PTFE tape rated for the intended service before assembly. Do not over-tighten threaded connections, as this can crack malleable iron fittings.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Configuration: Reducing Tee 1 x 1 x 3/4 inches
• Weight: 1.26 pounds
• UPC: 777701204388

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20438
