Bmi Usa 20307 Black 90 Degree Elbow 1-1/4 Inch Xh

Product Description

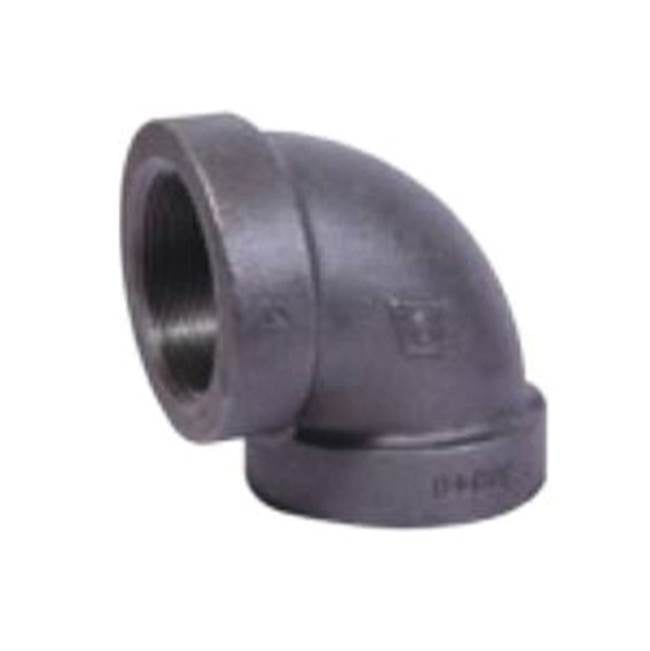

The BMI USA 20307 is an extra heavy (XH) malleable iron 90-degree pipe elbow designed for use in threaded black iron piping systems. Sized for 1-1/4 inch pipe, this elbow redirects flow or run direction at a right angle and provides the added wall thickness required in higher-pressure or heavy-duty service applications. The black finish is standard for non-galvanized gas and industrial piping. Plumbers, pipefitters, and mechanical contractors working on gas distribution, steam, compressed air, or industrial fluid lines are the typical installers of this fitting.

This elbow is suited for commercial and industrial piping systems where standard-weight fittings are not rated for the service conditions. Extra heavy malleable iron fittings are commonly selected for steam lines, high-pressure gas distribution, and industrial process piping where greater mechanical strength and wall thickness are required. The 1-1/4 inch size fits standard threaded pipe of the same nominal diameter.

Key Features

• Extra heavy (XH) wall thickness for higher-pressure and heavy-duty service
• Malleable iron construction provides strength and resistance to mechanical stress
• Black finish suitable for gas and non-galvanized piping systems
• 90-degree turn for right-angle direction changes in threaded pipe runs
• 1-1/4 inch nominal pipe size with standard NPT-compatible threading

Compatibility

Designed as an OEM-style replacement or direct-use fitting for 1-1/4 inch threaded black iron piping systems requiring extra heavy malleable iron fittings.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes, including the IPC and IFGC where gas service is involved. Shut off and de-pressurize the piping system fully before removing any existing fittings or threading in the new elbow. Apply appropriate thread sealant or PTFE tape rated for the service medium before making up the joint. Do not over-tighten threaded connections, as malleable iron fittings can crack under excessive torque.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Pipe Size: 1-1/4 inch
• Angle: 90 degrees
• Weight: 1.75 pounds
• UPC: 777701203077

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20307
