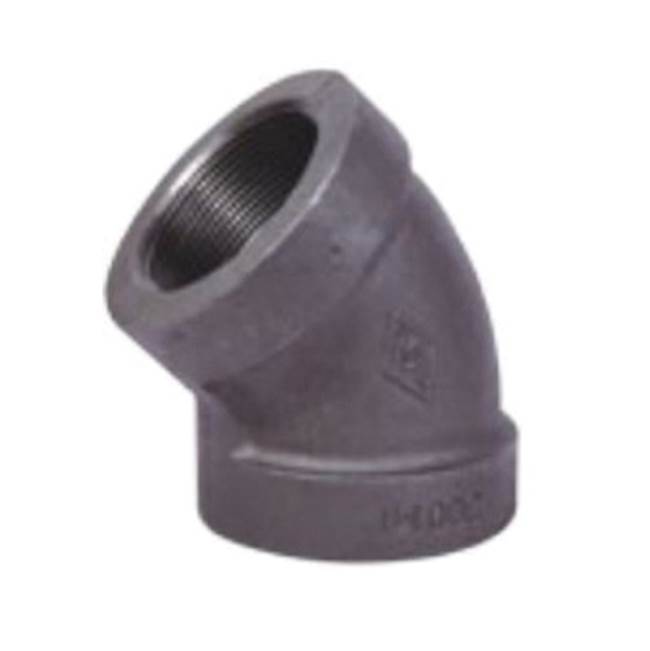

Bmi Usa 20210 2.5 in 45 Degree Xh Malleable Iron Elbow

Product Description

The BMI USA 20210 is a 2.5-inch, 45-degree malleable iron pipe elbow rated for extra heavy (XH) service. It is designed to redirect piping runs at a 45-degree angle in demanding pressure or mechanical stress applications. The black finish indicates an uncoated, oil-dipped iron surface standard for this class of fitting. At 5.26 pounds, this is a substantial, full-bodied fitting intended for professional piping systems where standard-weight fittings are insufficient. Plumbers and pipefitters install this class of elbow in steam, gas, water, and industrial process lines that require extra heavy wall thickness for added durability and pressure tolerance.

This fitting is suited for 2.5-inch threaded piping systems in commercial, industrial, and heavy-duty residential applications. Extra heavy malleable iron elbows are commonly used in steam distribution, compressed air lines, and high-pressure water systems where standard fittings would not meet service requirements. The 45-degree bend angle allows for gradual directional changes in piping layouts, reducing turbulence compared to a 90-degree elbow. Installation is typically performed by licensed plumbers or pipefitters working on systems governed by applicable mechanical and plumbing codes.

Key Features

• Extra heavy (XH) malleable iron construction for demanding service conditions
• 45-degree bend angle for gradual directional transitions in piping runs
• 2.5-inch fitting size with threaded connection for standard NPT pipe
• Black oil-dipped finish standard for uncoated malleable iron fittings
• Substantial 5.26-pound body reflects full extra heavy wall thickness

Compatibility

Designed as an OEM-style replacement or direct installation fitting for 2.5-inch threaded iron piping systems requiring extra heavy class malleable iron elbows.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing and mechanical codes. Shut off and depressurize the piping system completely before removing or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape to male threads before assembly, and tighten to a wrench-tight fit without over-torquing the malleable iron threads. Inspect threads on both the fitting and mating pipe for damage before making up the joint.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Size: 2.5 inches
• Bend Angle: 45 degrees
• Weight: 5.26 pounds
• UPC: 777701202100

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20210
