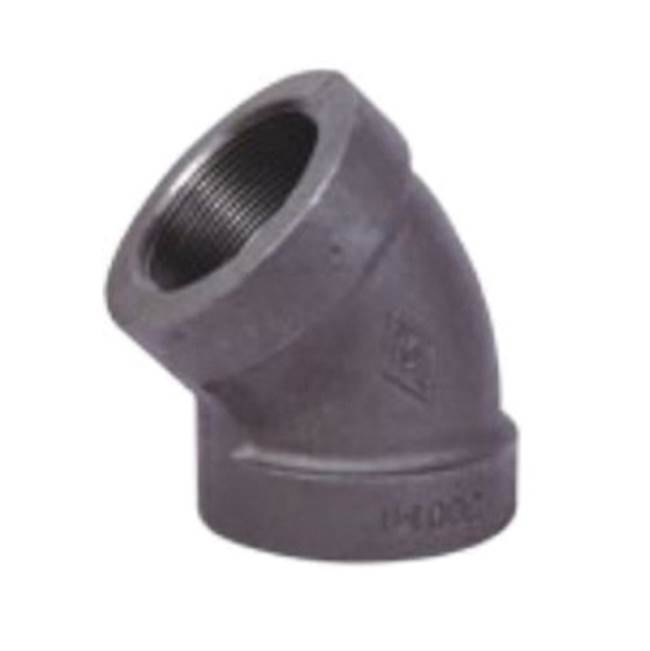

Bmi Usa 20209 Black Malleable Iron 45 Degree Elbow

Product Description

The BMI USA 20209 is an extra heavy malleable iron 45-degree pipe elbow finished in black. Designed for use in threaded pipe systems, this elbow redirects flow at a 45-degree angle in high-demand piping applications. Extra heavy (XH) fittings provide greater wall thickness and strength compared to standard malleable iron, making them appropriate for applications where added durability and pressure resistance are required. At 3.3 pounds, this is a robust, full-weight fitting built for reliable long-term service. It is installed by licensed plumbers and pipefitters working on gas, steam, and mechanical piping systems.

This 45-degree elbow is suited for 2-inch threaded pipe runs in commercial and industrial mechanical systems. Typical applications include steam distribution, gas piping, and other high-pressure or high-temperature pipe assemblies where standard-weight fittings are insufficient. The black finish is standard for gas and steam service piping in a wide range of facility types.

Key Features

• Extra heavy (XH) malleable iron construction for greater wall strength
• 45-degree elbow angle for moderate directional changes in pipe runs
• Black finish standard for gas and steam piping applications
• 2-inch pipe size for compatibility with common commercial pipe systems
• Threaded connection type for straightforward field installation

Compatibility

Designed as an OEM-style replacement and standard fitting for 2-inch threaded pipe systems requiring extra heavy malleable iron construction.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable mechanical and plumbing codes such as the IPC or IFGC. Shut off and de-pressurize the pipe system completely before removing or installing any fitting. Use appropriate thread sealant or pipe tape rated for the service medium. Do not over-torque threaded connections, as this can crack malleable iron fittings.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Pipe Size: 2 inches
• Elbow Angle: 45 degrees
• Weight: 3.3 pounds
• UPC: 777701202094

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20209
