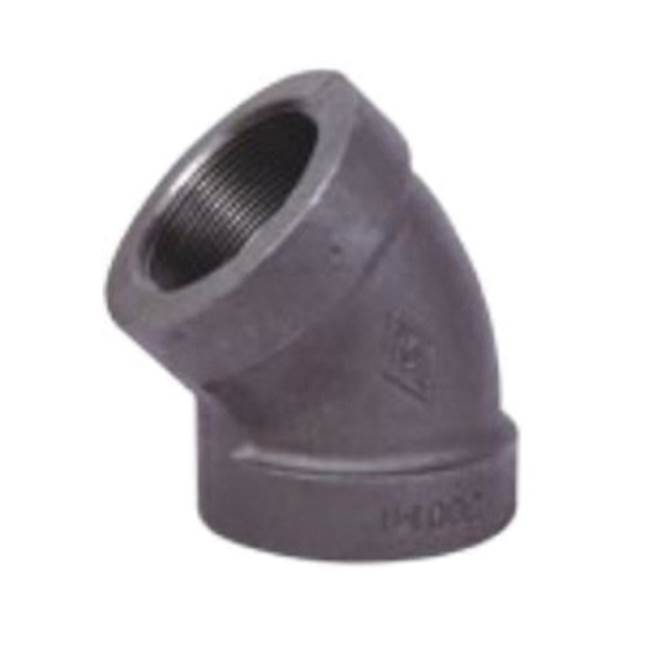

Bmi Usa 20202 Malleable Iron Pipe Elbow 1/4 Inch 45 Degree

Product Description

The BMI USA 20202 is a 45-degree pipe elbow manufactured from extra heavy malleable iron with a black finish. Designed for use in threaded pipe systems, this fitting redirects flow at a 45-degree angle and is built to handle the mechanical demands of high-pressure or heavy-duty piping applications. The extra heavy wall construction provides added durability compared to standard malleable iron fittings, making it appropriate for industrial and commercial installations. At 0.2 pounds, it is a compact, robust fitting suited for professional piping work in plumbing, HVAC, and related mechanical trades.

This elbow is used in threaded pipe assemblies where a 45-degree change in direction is required. It is sized at 1/4 inch and fits applications in residential, commercial, and light industrial piping systems. The black finish is standard for gas and steam service fittings in many installations. Licensed plumbers and pipefitters typically install this type of fitting in supply lines, distribution piping, and service branch connections.

Key Features

• Extra heavy malleable iron construction for high-durability threaded connections
• 45-degree elbow geometry for directional pipe routing
• 1/4 inch size for standard small-diameter threaded pipe systems
• Black finish suitable for gas and steam piping service
• Lightweight at 0.2 pounds for ease of handling during installation

Compatibility

Designed as an OEM-style replacement or direct-use fitting for 1/4 inch threaded pipe systems requiring an extra heavy 45-degree elbow in black malleable iron.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off and depressurize the pipe system fully before removing or installing any threaded fittings. Use appropriate thread sealant or PTFE tape on male threads before assembly. Do not overtighten, as malleable iron threads can be damaged by excessive torque.

Technical Specifications

• Material: Extra Heavy Malleable Iron
• Finish: Black
• Size: 1/4 inch
• Angle: 45 degrees
• Weight: 0.2 pounds
• UPC: 777701202025

Standard Information

• Brand: BMI USA
• Manufacturer Part Number: 20202
