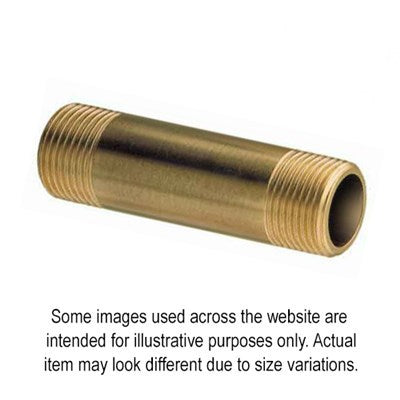

Bmi 4960 Brass Nipple 2 X 6 Inch Lead Free

Product Description

The BMI 4960 is a lead-free brass nipple designed for use in potable water, plumbing, and general piping systems. Sized at 2 inches by 6 inches, this close-coupled fitting connects threaded pipe sections and serves as a reliable extension between fittings, valves, and other threaded components. The brass construction provides strong corrosion resistance, making it well suited for water supply lines and related plumbing assemblies. The lead-free designation meets regulatory requirements for use in systems carrying drinking water. Licensed plumbers and pipefitters are the primary installers of this type of fitting.

This nipple is appropriate for residential and light commercial plumbing applications where a 2-inch threaded connection is required. Typical uses include water distribution lines, boiler piping, and fixture connections where a short, rigid extension between two threaded ports is needed. The 6-inch body length provides enough reach for standard offset installations and tight-clearance situations in mechanical rooms or utility spaces.

Key Features

• Lead-free brass construction meets potable water compliance requirements
• 2-inch diameter with 6-inch body length for standard offset plumbing connections
• Male NPT threads on both ends for straightforward installation into threaded fittings and valves
• Corrosion-resistant brass alloy suited for water supply and plumbing service
• Compact rigid body minimizes potential leak points compared to flexible alternatives

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 2-inch NPT threaded plumbing systems in residential and commercial applications.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and depressurize the line before threading the nipple into place. Apply an appropriate thread sealant or PTFE tape to the male threads before making up the joint. Do not over-tighten, as brass threads can be damaged by excessive torque.

Technical Specifications

• Size: 2 inches x 6 inches
• Material: Brass
• Lead Free: Yes
• UPC: 77770104960

Standard Information

• Brand: BMI
• Manufacturer Part Number: 4960
