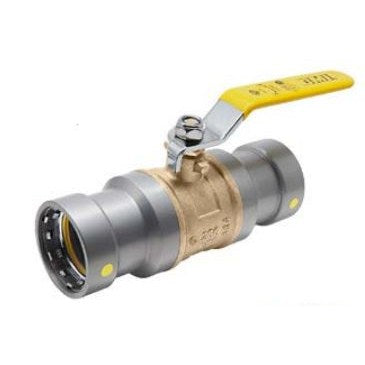

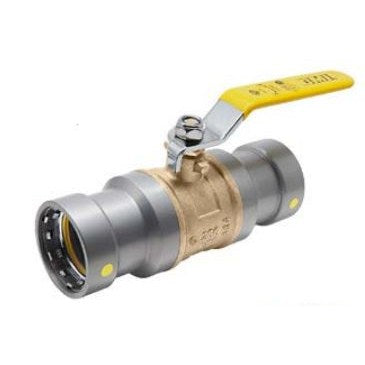

Bmi 49009 Carbon Press Gas Ball Valve Brass 2 inch

Product Description

The BMI 49009 Carbon Press Gas Ball Valve is engineered for gas distribution systems, including natural gas and LPG. This 2-inch valve features a forged brass body, ensuring optimal performance and secure connections. It is designed for quick installation using electro-hydraulic press tools, reducing labor time. The valve is 100% factory tested and protected with a Zinc-Nickel coating for durability.

• Features distinct yellow markings for easy recognition.
• Equipped with an HNBR sealing element and a stainless-steel ring for secure pipe grip.
• Facilitates quick installation with electro-hydraulic press tools, minimizing delays.

Product Highlights

Forged brass gas ball valve with secure press connections for natural gas and LPG systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 49009

Technical Specifications

• Dielectric: No
• Full Flow: Yes
• Material: Brass
• Press Size: 2 inch
• Working Pressure: 125 psi max
• Working Temperature: -40°F to 180°F
• Pipe Compliance: ASTM A53, A106, A135, A795 standards
• Tool Requirement: 32kN tool required for Carbon Press fittings larger than 1 inch
