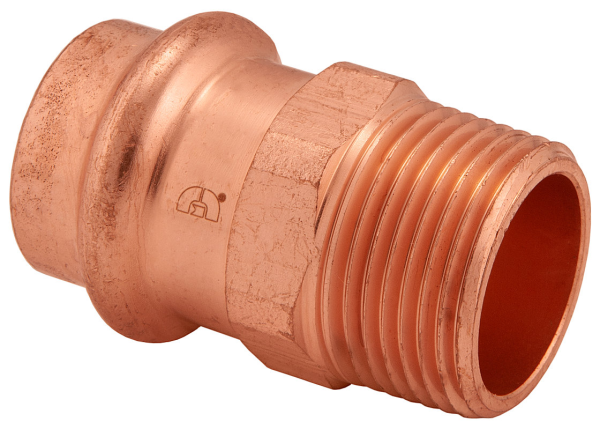

Bmi 47809 2 inches wrot copper press-fit pxmips adapter fitting

Product Description

The BMI 47809 Wrot Copper Press-Fit PxMIPS Adapter Fitting is a 2-inch lead-free component designed for reliable plumbing and HVAC connections. Compatible with major pressing tools, it features a 360-degree leak detection design for easy identification of unpressed connections. This adapter is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi, operating within 0 to 250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper adapter with leak detection for various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47809

Technical Specifications

• Working pressure: 200 psi Max.
• Max test pressure: 600 psi Max.
• Low pressure steam: 15 psi Max.
• Working temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions compliance: IAPMO PS 117-2016
• Threads compliance: ASME/ASTM B1.20.1
• Drinking water compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other compliance: ISO9001, ISO14001
