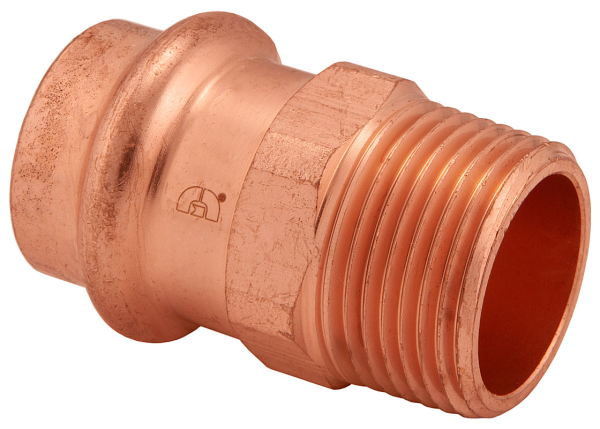

Bmi 47808 wrot copper press-fit PxMIPS adapter fitting 1-1/2 inches

Product Description

The BMI 47808 is a 1-1/2" Wrot Copper Press-Fit PxMIPS Adapter Fitting designed for various plumbing and HVAC applications. This lead-free fitting features a 360-degree leak detection design, ensuring secure connections. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It operates within a temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools.
• Features a 360-degree leak detection design for unpressed connections.
• Lead-Free construction, compliant with NSF/ANSI Standard 61 - 372.

Product Highlights

Integrated leak detection design allows for quick identification of unpressed connections during system pressure testing.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47808

Technical Specifications

• Working Pressure: 200 psi Max
• Maximum Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI Standard 61 - 372 (Lead-Free)
• Other Compliance: ISO9001, ISO14001
• Size: 1-1/2 inch
• Connection Type: Press x MPT
