Product Description

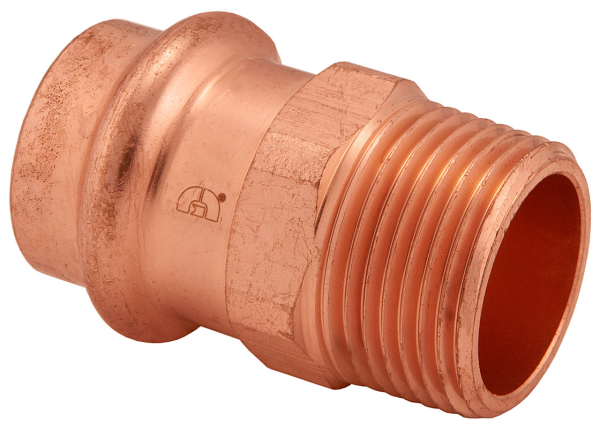

The BMI 47807 is a 1-1/4 inch Wrot Copper Press-Fit PxMIPS Adapter Fitting. This lead-free fitting is designed for various applications including potable water, hydronic heating with glycol, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It ensures a secure connection and is compatible with standard copper tubing.
- Features a 360-degree leak detection design for easy identification of unpressed connections.
- Compatible with all major brands of pressing tools for versatile installation.
- Lead-free and compliant with UPC/CUPC and IAPMO PS 117-2016 standards.
Product Highlights
Integrated leak detection design simplifies pressure testing and ensures secure connections.
Product Information
Standard Information
-
Brand: BMI
-
Manufacturer Part Number: 47807
Technical Specifications
-
Material: Wrot Copper
-
Size: 1-1/4
-
Connection Type: Press x MPT
-
Fitting Type: Adapter
-
Max Working Pressure: 200 psi
-
Max Working Pressure (Non-Medical Gases): 140 psi
-
Max Working Pressure (Low Pressure Steam): 15 psi
-
Max Test Pressure: 600 psi
-
Working Temperature Range: 0~250 F (-18~121 C)
-
Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
-
Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
-
Dimensions Compliance: IAPMO PS 117-2016
-
Threads Compliance: ASME/ASTM B1.20.1
-
Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
-
Tubing Compatibility: ASME/ASTM B88 standard K, L and M hard copper tubing from 1/2" to 4" and soft copper tubing in 1/2" to 1-1/4" diameters
