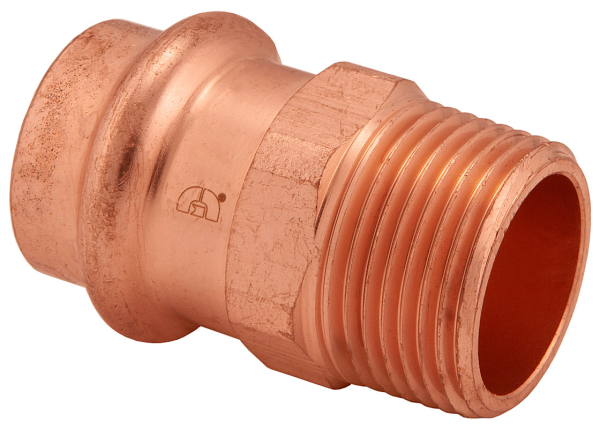

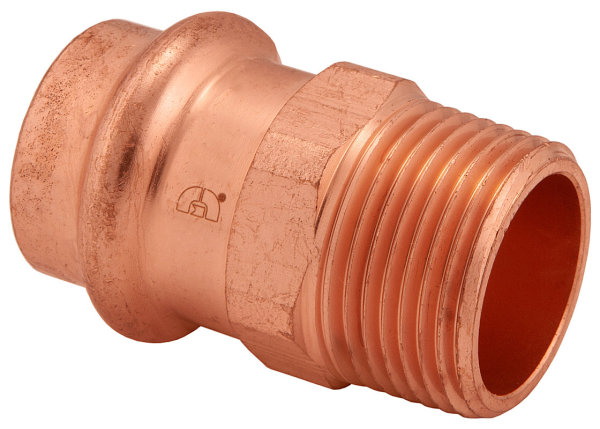

Bmi 47806 1 inches Wrot Copper Press-Fit PxMIPS Adapter Fitting

Product Description

The BMI 47806 is a 1" Wrot Copper Press-Fit PxMIPS Adapter Fitting designed for various plumbing and HVAC applications. This lead-free fitting is compatible with major pressing tools and features a 360-degree Leak Detection Design for easy identification of unpressed connections. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi. It operates within a working temperature range of 0 to 250 F.

• 50 Year Limited Warranty against defect in material and workmanship
• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design for easy identification of unpressed connections

Product Highlights

Lead-free, UPC/CUPC compliant, and ISO9001 certified for reliable and safe connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47806

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Compliance: IAPMO PS 117-2016
• Thread Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
• Type: Press-Fit Adapter
• Connection Type: 1 PRESSxMPT
