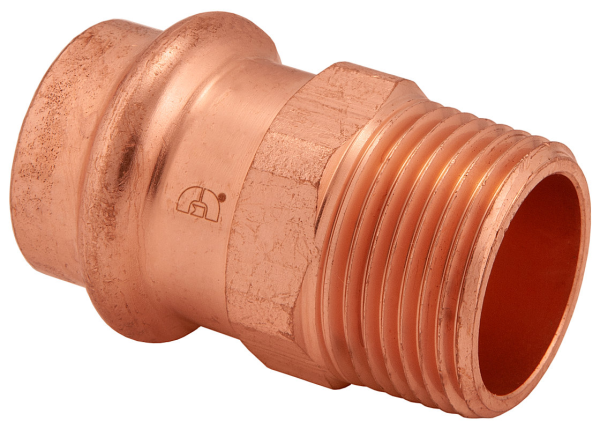

Bmi 47805 3/4 PressxMPT Wrot Copper Press-Fit Adapter

Product Description

The BMI 47805 is a 3/4 PRESSxMPT Wrot Copper Press-Fit Adapter designed for creating secure connections in various plumbing and HVAC systems. This adapter is suitable for potable water, hydronic heating with glycol, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. It features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-Free and UPC / CUPC certified, this adapter is suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low pressure steam applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47805

Technical Specifications

• Type: Press-Fit Adapter
• Material: Wrot Copper
• Connection Size: 3/4 PRESSxMPT
• Dimensions: 47 mm L
• Maximum Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Operating Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Thread Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Certifications: ISO9001, ISO14001
• Product Group: Press Fittings
