Bmi 47804 Press P X MPT Adapter 1/2

Product Description

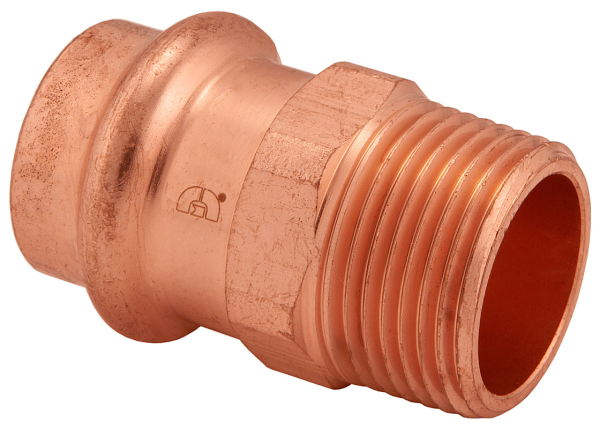

The BMI 47804 Press P X MPT Adapter is a 1/2 inch wrot copper press-fit adapter designed for various applications. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. This lead-free adapter features a 360-degree leak detection design for unpressed connections.

• Compatible with all major brands of pressing tools.
• Features a 360-degree leak detection design for identifying unpressed connections.
• Lead-free construction, compliant with NSF/ANSI Standard 61 - 372.

Product Highlights

Wrot copper press-fit adapter for diverse fluid and gas applications, featuring leak detection and lead-free design.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47804

Technical Specifications

• Connection: Press x MPT
• Group: Press Fittings
• Size: 1/2
• Type: Adapter
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
