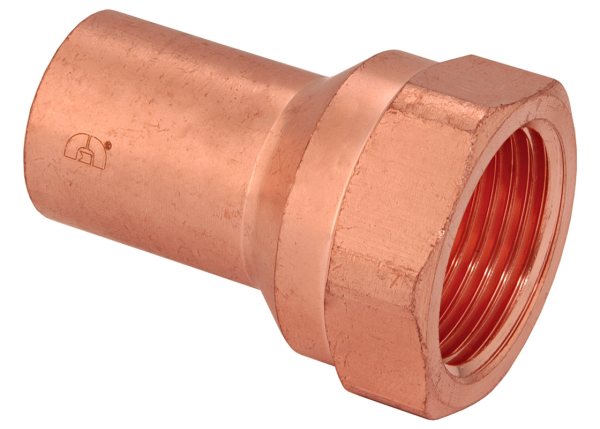

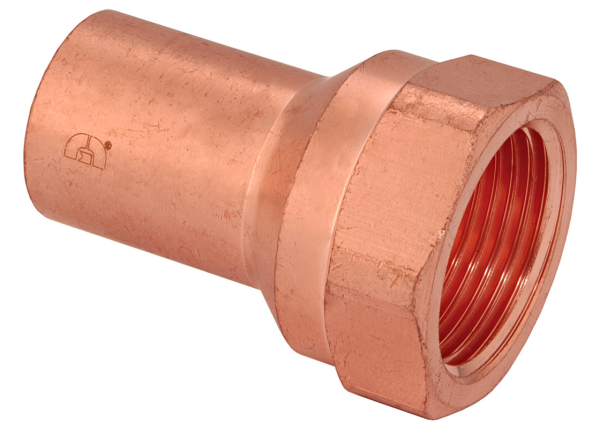

Bmi 47785 wrot copper press-fit FTGxFIPS adapter fitting 3/4 inch

Product Description

The BMI 47785 Wrot Copper Press-Fit FTGxFIPS Adapter Fitting is designed for reliable plumbing connections. This lead-free fitting complies with UPC/CUPC and IAPMO PS 117-2016 standards, making it suitable for potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low-pressure steam (up to 15 psi). It features a 360-degree leak detection design for easy identification of unpressed connections during testing, ensuring a secure, permanent seal.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free wrot copper adapter fitting with 360-degree leak detection, suitable for various plumbing and gas applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47785
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• End Style: Press-Fit x FNPT
• Fitting/Connector Type: Adapter
• Nominal Size: 3/4 in
• Group: Press Fittings
