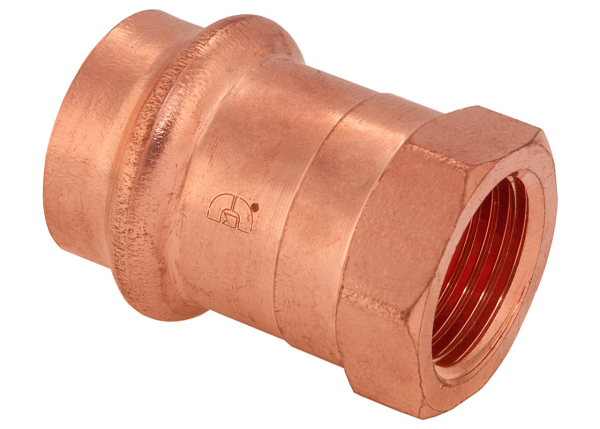

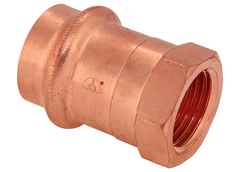

Bmi 47727 1 inches x 3/4 inches Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting

Product Description

The BMI 47727 Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting is designed for various applications including potable water, hydronic heating, chilled water, compressed air (up to 200 psi), non-medical gases (up to 140 psi), and low-pressure steam (up to 15 psi). This 1" x 3/4" adapter is compatible with ASME/ASTM B88 standard K, L, and M hard copper tubing. It features a Leak Detection Design for identifying unpressed connections during pressure testing, ensuring a secure, permanent seal when properly installed.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design for identifying unpressed connections
• Lead-Free construction ensures drinking water compliance

Product Highlights

Features a Leak Detection Design and is compatible with major pressing tools.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47727
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Type: Reducing Adapter Fitting
• Connection: 1" Press-Fit x 3/4" FIP
