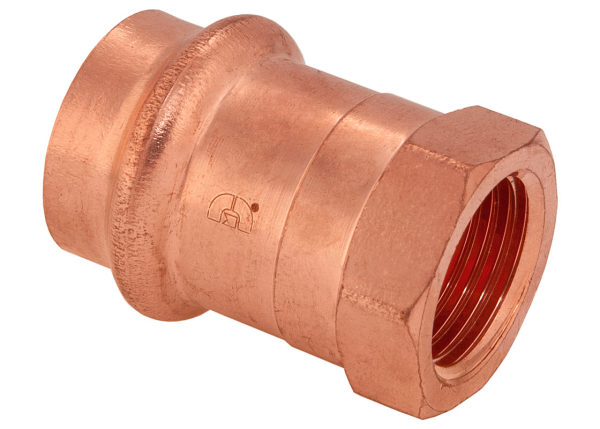

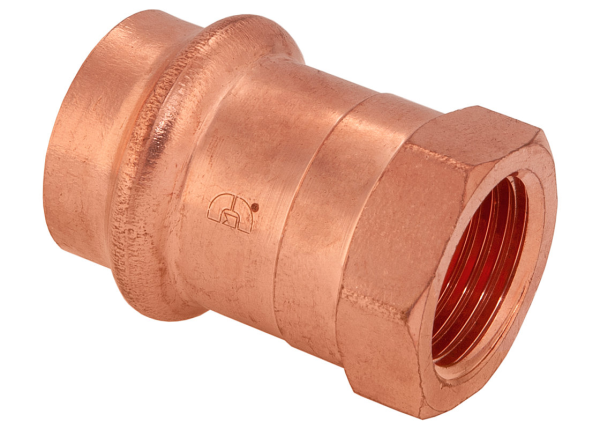

Bmi 47723 wrot copper press-fit p x fip reducing adapter fitting 3/4 inches x 1/2 inches

Product Description

The BMI 47723 Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting is designed for reliable plumbing connections. This lead-free fitting complies with UPC/CUPC and IAPMO PS 117-2016 standards, making it suitable for potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low-pressure steam (15 psi max). It features a 360-degree leak detection design for identifying unpressed connections during pressure testing, supporting up to 600 psi for water and 200 psi for air. It operates within a working temperature range of 0 to 250 F.

• Compatible with all major brands of pressing tools.
• Features a 360-degree leak detection design for identifying unpressed connections.
• Lead-free and complies with UPC/CUPC and IAPMO PS 117-2016 standards.

Product Highlights

Lead-free copper press-fit reducing adapter fitting with leak detection, suitable for various fluid and gas applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47723

Technical Specifications

• Working Pressure: 200 psi Max
• Maximum Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Operating Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Compatible Tubing: ASME/ASTM B88 standard K, L, and M hard copper tubing (1/2" to 4"), soft copper tubing (1/2" to 1 1/4")
