Bmi 47708 press-fit adapter 1-1/2 pressxfpt wrot copper

Product Description

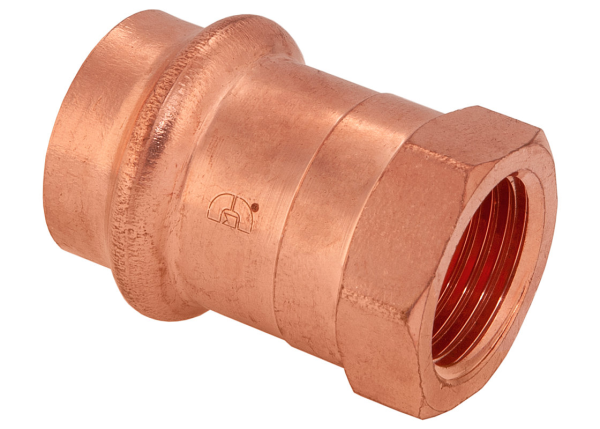

The BMI 47708 is a 1-1/2 inch nominal, PRESSxFPT Wrot Copper Press-Fit Adapter, measuring 63 mm in length. This lead-free adapter is designed for various applications including potable water, hydronic heating, chilled water, and compressed air systems up to 200 psi. It features a 360-degree Leak Detection Design for easy identification of unpressed connections during pressure testing. The adapter is compatible with all major brands of pressing tools and operates within a temperature range of 0 to 250 F.

• Compatible with all major brands pressing tools.
• 360 Degree Leak Detection Design for unpressed connection identification.

Product Highlights

Lead-free Wrot Copper adapter with leak detection, suitable for diverse plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47708
• Country of Origin: USA

Technical Specifications

• Brand: BMI
• MPN: 47708
• Nominal Size: 1-1/2
• Connection Type: PRESSxFPT
• Material: Wrot Copper
• Type: Press-Fit Adapter
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
