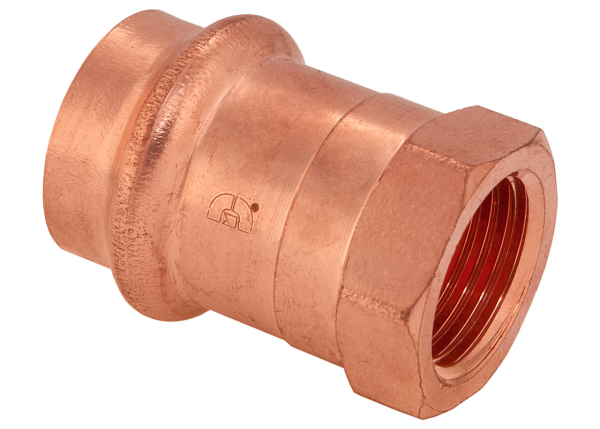

Bmi 47706 1 inches wrot copper press-fit p x fip reducing adapter fitting

Product Description

The BMI 47706 is a 1" Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting designed for reliable plumbing and HVAC applications. This lead-free fitting features a 360-degree leak detection design, ensuring secure connections for potable water, hydronic heating, chilled water, and compressed air systems. It operates effectively up to 200 psi maximum working pressure and within a temperature range of 0 to 250 F, making it suitable for diverse residential and commercial installations.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper adapter with leak detection for secure, versatile plumbing and HVAC connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47706

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
