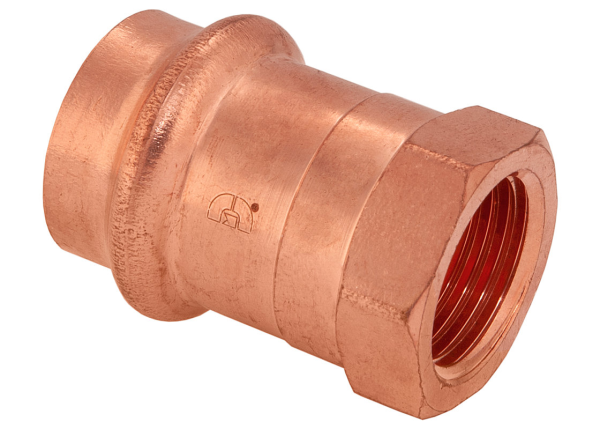

Bmi 47705 wrot copper press-fit p x fip reducing adapter fitting 3/4 inches

Product Description

The BMI 47705 Wrot Copper Press-Fit P x FIP Reducing Adapter Fitting is a lead-free component for plumbing and HVAC systems. It features a 360-degree Leak Detection Design, aiding in identifying unpressed connections. This fitting is suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low-pressure steam applications. It operates at a maximum working pressure of 200 psi and a temperature range of 0~250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-Free copper press-fit adapter with leak detection, suitable for various fluid and gas applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47705

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
• Item Number: CUP AD 3/4 PRS X FPT
• Unit of Measure: EA
• Size: 3/4
• Connection Type: Press x FPT
• Product Type: Press-Fit Adapter
