Bmi 47508 1-1/2 press wrot copper press-fit cap

Product Description

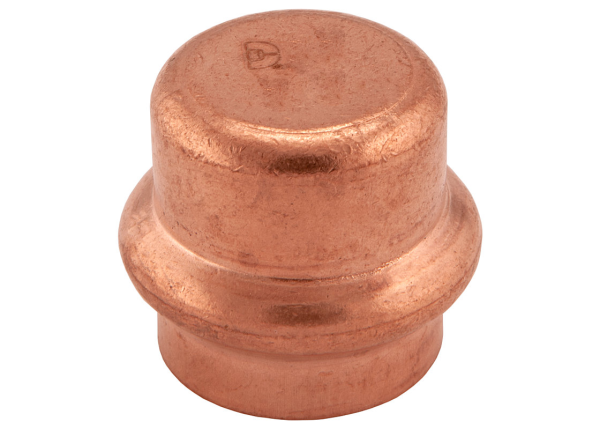

The BMI 47508 is a 1-1/2 inch press-fit cap made from wrought copper, designed for various plumbing and HVAC applications. This lead-free fitting is compatible with major pressing tools and features a 360-degree leak detection design for easy identification of unpressed connections during pressure testing. It is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low-pressure steam up to 15 psi.

• Features a 360-degree Leak Detection Design for identifying unpressed connections.
• Compatible with all major brands of pressing tools for versatile use.
• Lead-free construction, suitable for potable water applications.

Product Highlights

Wrought copper press-fit cap with leak detection, lead-free, and compatible with major pressing tools.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47508

Technical Specifications

• Brand: BMI
• MPN: 47508
• Size: 1-1/2
• Material: Wrot Copper
• Connection Type: Press-Fit
• Product Type: Cap
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Product Group: Press Fittings
