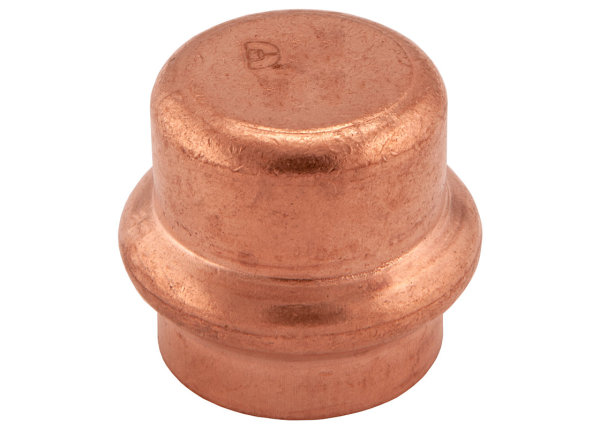

Bmi 47505 3/4 inch Wrot Copper Press-Fit Cap Fitting

Product Description

The BMI 47505 3/4" Wrot Copper Press-Fit Cap Fitting is designed for secure and leak-proof connections in plumbing systems. Featuring a Leak Detection Design, it allows for easy identification of unpressed connections during pressure testing, ensuring system integrity. This lead-free fitting is suitable for potable water, hydronic heating, chilled water, compressed air up to 200 psi, and low-pressure steam applications. It operates within a working temperature range of 0 to 250 F and can withstand a maximum test pressure of 600 psi.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper fitting with Leak Detection Design for reliable, permanent connections in various plumbing and HVAC applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47505
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2 inches Mercury at 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% Copper)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead-Free)
• Size: 3/4 inch
• Material: Copper
• Connection Type: Press-Fit
• Product Type: Cap
• Construction: Wrot
