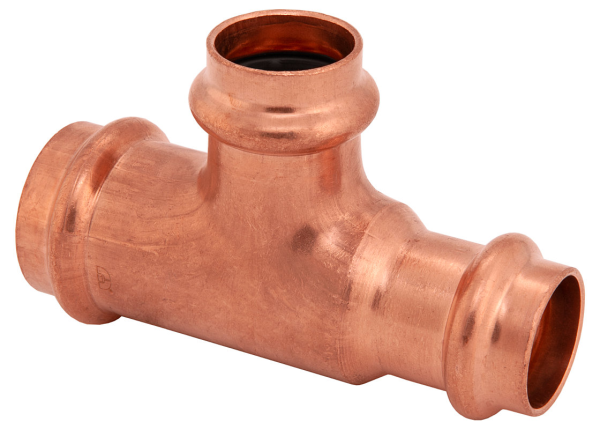

Bmi 47473 PressxPressxPress Wrot Copper Press-Fit Tee 1-1/2x1-1/2x3/4

Product Description

The BMI 47473 is a Wrot Copper Press-Fit Tee designed for plumbing systems. This 1-1/2 x 1-1/2 x 3/4 inch fitting features Press x Press x Press connections, ensuring quick and secure installation. It incorporates a Leak Detection Design for easy identification of unpressed connections during pressure testing, enhancing installation reliability. Constructed from ASME/ASTM B42 C12200 copper, it is suitable for various applications including potable water and hydronic heating.

• Press-fit connections for quick and secure installation in plumbing systems.
• Constructed from durable wrot copper (ASME/ASTM B42 C12200) for longevity.
• Features 360 Degree Leak Detection Design for reliable installation verification.

Product Highlights

Durable wrot copper tee with press-fit connections, featuring leak detection and lead-free compliance.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47473

Technical Specifications

• Material: Wrot Copper
• Fitting Type: Press-Fit Tee
• Size: 1-1/2 x 1-1/2 x 3/4
• Connection Type: Press x Press x Press
• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
