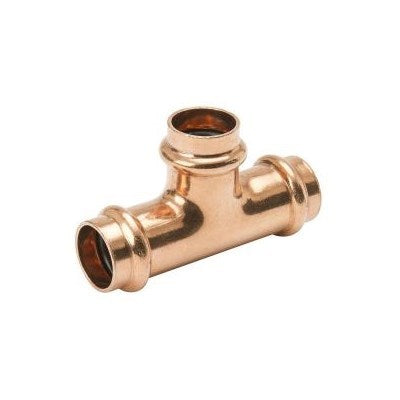

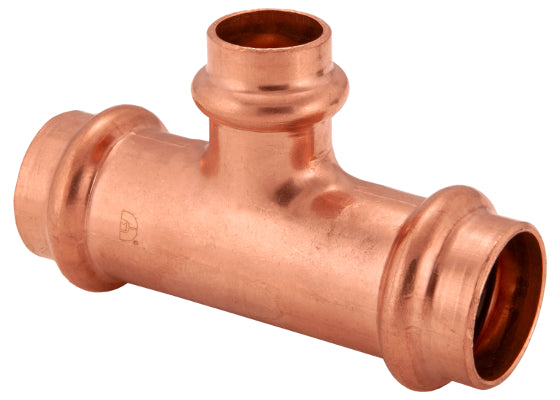

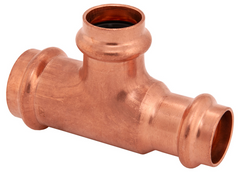

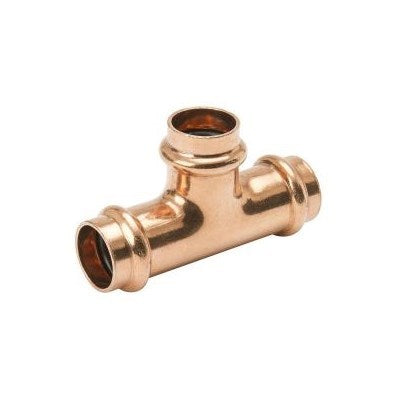

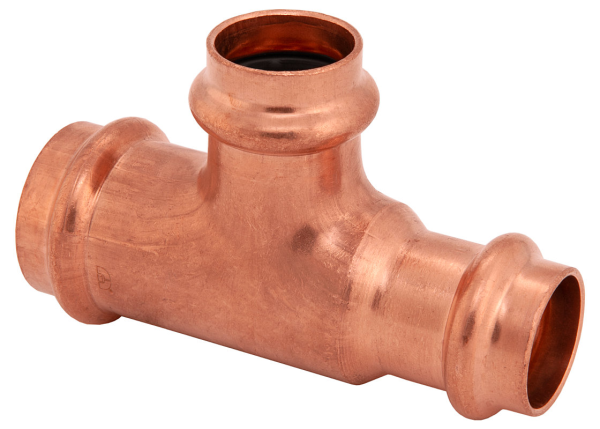

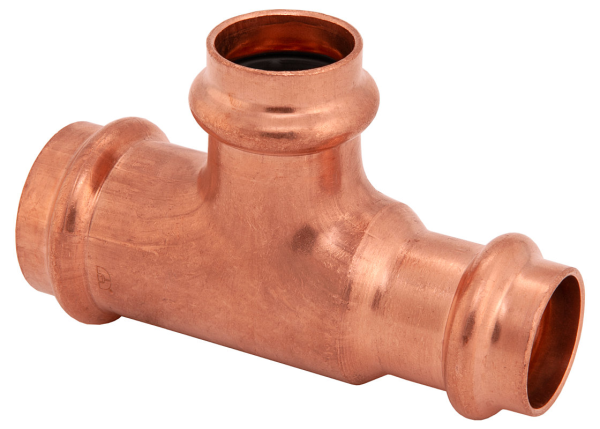

Bmi 47453 press reducing tee 1-1/4 inches x 1-1/4 inches x 1 inches cup t 1-1/4 x 1-1/4 x 1 prs x prs x prs

Product Description

The BMI 47453 Wrot Copper Press-Fit Reducing Tee Fitting is designed for plumbing systems. It features a 360 Degree Leak Detection Design, aiding in the identification of unpressed connections during system testing. This lead-free fitting is compatible with major pressing tools and suitable for potable water, hydronic heating, chilled water, compressed air (200 psi max.), non-medical gases (140 psi max.), and low-pressure steam (15 psi max.) applications. It operates at a maximum working pressure of 200 psi and a working temperature range of 0~250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design
• Lead-Free and compliant with UPC / CUPC and IAPMO PS 117-2016 standards

Product Highlights

Durable wrot copper press-fit reducing tee with leak detection and broad application compatibility.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47453

Technical Specifications

• Connection: Press
• Group: Press Fittings
• Size: 1-1/4 x 1-1/4 x 1
• Type: Tee - Reducing
• Alternate Part Number: CUP T 1-1/4 X 1-1/4 X 1 PRS X PRS X PRS
• Item Number: CUP T 1-1/4 X 1-1/4 X 1 PRS
• Unit of Measure: EA
• Material: Wrot
• Maximum Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Maximum Low Pressure Steam: 15 psi Max.
• Working Temperature Range: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Compliance: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Certifications: ISO9001, ISO14001
• End Style: Press-Fit
