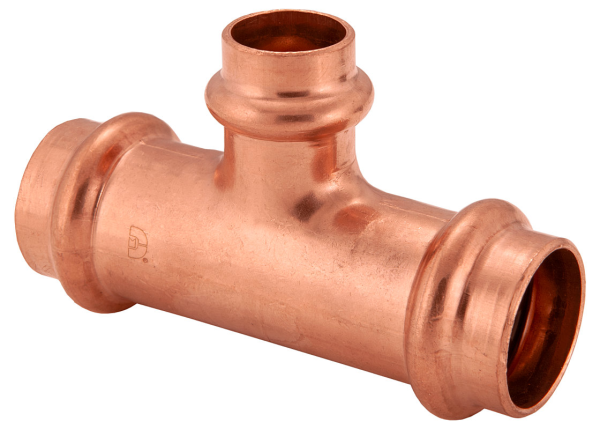

Bmi 47439 wrot copper press-fit reducing tee fitting 1 inches x 1 inches x 1/2 inches

Product Description

The BMI 47439 is a wrot copper press-fit reducing tee fitting, measuring 1" x 1" x 1/2". This lead-free fitting features a 360-degree leak detection design, ensuring secure connections. It is compatible with major pressing tools and complies with UPC/CUPC and IAPMO PS 117-2016 standards. Suitable for potable water, hydronic heating, chilled water, compressed air (200 psi max), non-medical gases (140 psi max), and low-pressure steam (15 psi max) applications.

• Features a 360-degree Leak Detection Design for identifying unpressed connections.
• Lead-Free construction, compliant with NSF/ANSI STANDARD 61 - 372 for drinking water.
• Compatible with all major brands pressing tools for versatile and secure installation.

Product Highlights

Lead-free wrot copper press-fit reducing tee with leak detection for various plumbing and HVAC applications, ensuring a permanent, leak-proof connection.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47439

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Connection Type: Press
• Size: 1 x 1 x 1/2 inch
