Bmi 47438 Reducing Tee 1 x 1 x 3/4 in

Product Description

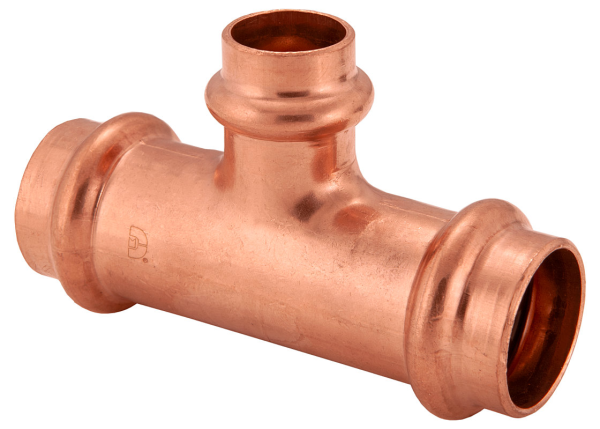

The BMI 47438 is a 1" x 1" x 3/4" Wrot Copper Press-Fit Reducing Tee Fitting. It is suitable for potable water, hydronic heating (w/Glycol), chilled water, compressed air (200 psi max.), non-medical gases (140 psi maximum), and low-pressure steam (15 psi maximum). All tubing used must be as per ASME/ASTM B88 standard K, L and M hard copper tubing from ".

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

This lead-free reducing tee fitting features a 360-degree leak detection design and is compatible with major pressing tools. Suitable for various applications, it ensures a secure, leak-proof connection when pressed.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47438

Technical Specifications

• Materials: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions: IAPMO PS 117-2016
• Threads: ASME/ASTM B1.20.1
• Drinking water: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other: ISO9001, ISO14001
• Working pressure: 200 psi Max.
• Max test pressure: 600 psi Max.
• Low pressure steam: 15 psi Max.
• Working temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• End Style: Press-Fit
• Fitting/Connector Type: Tee
• Material: Wrot Copper
• Nominal Size: 1 x 1 x 3/4 in
