Bmi 47430 PressxPressxPress Wrot Copper Press-Fit Tee 3/4 x 1/2 x 3/4

Product Description

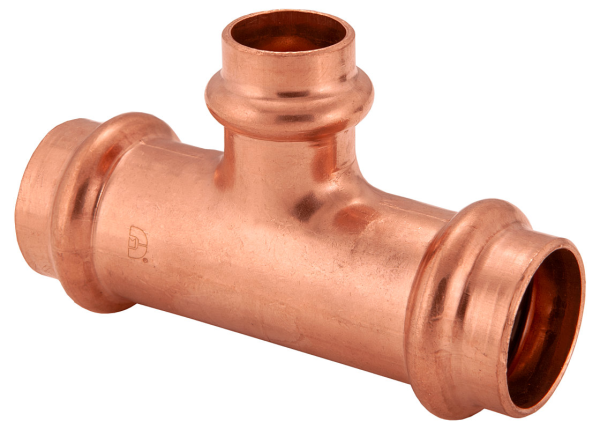

The BMI 47430 Wrot Copper Press-Fit Reducing Tee Fitting measures 3/4 x 1/2 x 3/4 inches. This lead-free copper fitting complies with UPC/CUPC and IAPMO PS 117-2016 standards, making it suitable for potable water, hydronic heating, chilled water, compressed air, non-medical gases, and low-pressure steam applications. It features a 360-degree Leak Detection Design to identify unpressed connections during pressure testing.

• Compatible with all major brands of pressing tools.
• Features a 360 Degree Leak Detection Design.

Product Highlights

Lead-free wrot copper press-fit tee with leak detection, suitable for various plumbing and HVAC applications including potable water and hydronic heating.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47430

Technical Specifications

• Size: 3/4 x 1/2 x 3/4 inch
• Connection Type: Press x Press x Press
• Material: Wrot Copper
• Fitting Type: Press-Fit Tee
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Materials: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
