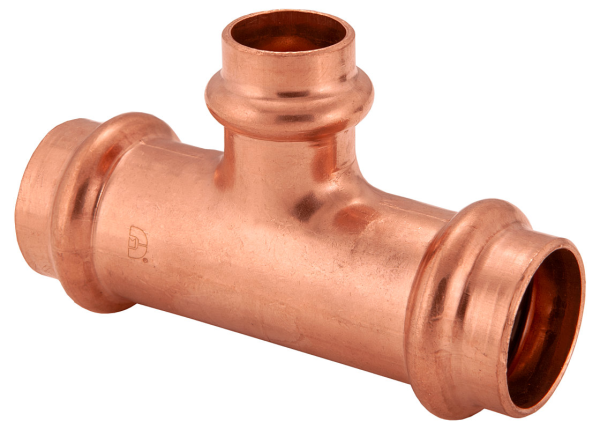

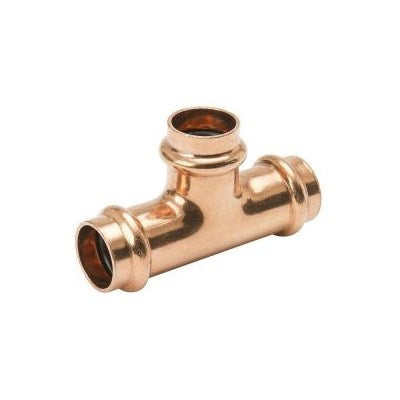

Bmi 47429 press reducing tee 3/4 inches x 3/4 inches x 1/2 inches

Product Description

The BMI 47429 is a press reducing tee fitting, sized 3/4" x 3/4" x 1/2", designed for secure press connections in various plumbing and HVAC systems. This wrot copper press-fit tee is suitable for potable water, hydronic heating, chilled water, and compressed air applications up to 200 psi. It features a leak detection design for identifying unpressed connections during installation, ensuring system integrity.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

This lead-free wrot copper press-fit reducing tee ensures secure, leak-proof connections for diverse fluid and gas systems, compliant with NSF/ANSI Standard 61.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47429

Technical Specifications

• Connection: Press
• Group: Press Fittings
• Size: 3/4 x 3/4 x 1/2
• Type: Tee - Reducing
• Maximum Working Pressure: 200 psi
• Maximum Test Pressure: 600 psi
• Maximum Low Pressure Steam: 15 psi
• Operating Temperature Range: 0 to 250 F (-18 to 121 C)
• Vacuum Rating: 29.2" Mercury at 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% copper)
• Dimensions Standard: IAPMO PS 117-2016
• Drinking Water Compliance: NSF/ANSI Standard 61 - 372 (Lead Free)
• Other Compliance: ISO9001, ISO14001
