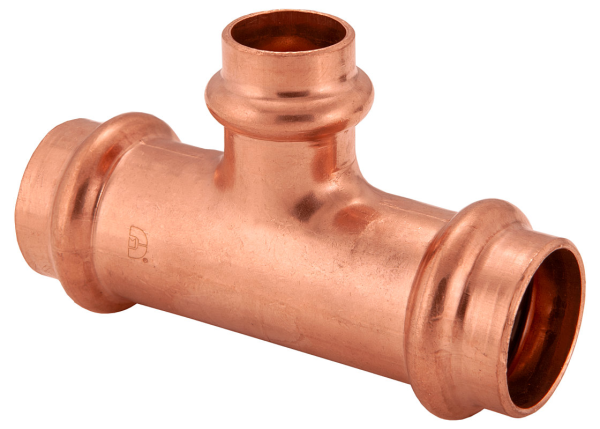

Bmi 47420 1/2x1/2x3/4 pressxpressxpress wrot copper press-fit tee

Product Description

The BMI 47420 is a wrot copper press-fit tee fitting, nominal size 1/2 x 1/2 x 3/4 inches, designed for secure plumbing connections. It features a 360-degree leak detection design, enabling quick identification of unpressed connections during pressure testing. This fitting is suitable for potable water, hydronic heating, and compressed air applications, with a maximum working pressure of 200 psi.

• 360 Degree Leak Detection Design for fast identification of unpressed connections.
• Compatible with all major brands of pressing tools for versatile use.
• Lead-Free and compliant with NSF/ANSI Standard 61 for drinking water applications.

Product Highlights

Wrot copper press-fit tee with 360-degree leak detection, suitable for various plumbing and HVAC systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47420

Technical Specifications

• Fitting Type: Press-Fit Tee
• Material: Wrot Copper
• Nominal Size: 1/2 x 1/2 x 3/4 inches
• Connection Method: Press
• Working Pressure: 200 psi Max
• Max Test Pressure: 600 psi Max
• Low Pressure Steam: 15 psi Max
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2 inches Mercury @ 68 F (20 C)
• Material Standard: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
