Bmi 47405 wrot copper press-fit tee 3/4 pressxpressxpress

Product Description

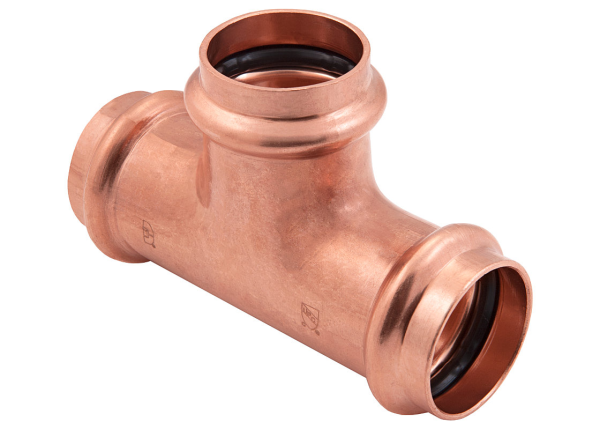

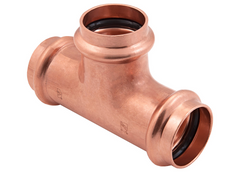

The BMI 47405 Wrot Copper Press-Fit Tee is designed for various applications including potable water, hydronic heating, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. It features a 360-degree Leak Detection Design for identifying unpressed connections during pressure testing. Once properly pressed, this feature is neutralized, creating a leak-proof, permanent connection. This lead-free fitting is compatible with ASME/ASTM B88 standard K, L, and M hard copper tubing.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design for fast and easy identification of unpressed connections

Product Highlights

Lead-free copper press-fit tee with 360-degree leak detection, suitable for potable water, heating, and gas applications.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47405

Technical Specifications

• Size: 3/4
• Connection Type: PRESSxPRESSxPRESS
• Material: WROT COPPER
• Product Type: PRESS-FIT TEE
• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam Pressure: 15 psi Max.
• Operating Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material Composition: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Certifications: ISO9001, ISO14001
