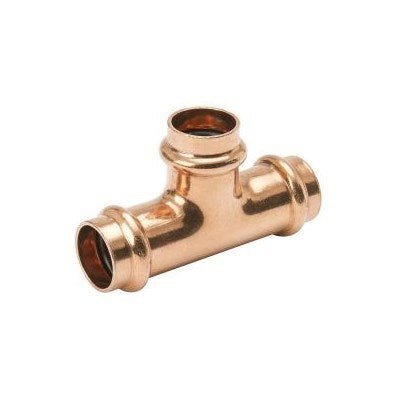

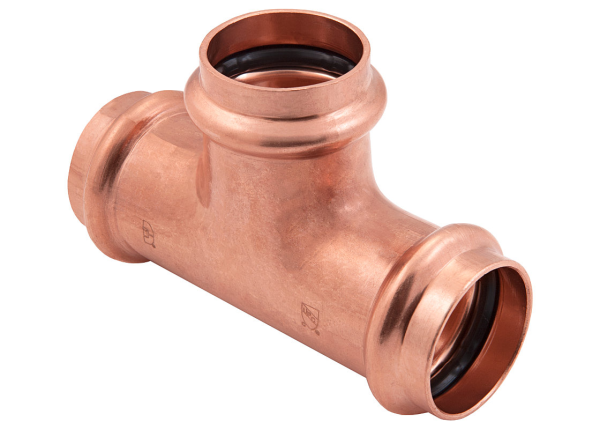

Bmi 47404 wrot copper press-fit tee fitting 1/2 inches

Product Description

The BMI 47404 is a 1/2 inch wrot copper press-fit tee fitting designed for plumbing and HVAC systems. This lead-free fitting ensures a secure connection for potable water, hydronic heating, and compressed air applications. It features a 360-degree leak detection design for easy identification of unpressed connections during system testing, supporting working pressures up to 200 psi and temperatures from 0 to 250 F.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper press-fit tee with leak detection for reliable plumbing and HVAC connections.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47404

Technical Specifications

• Working Pressure: 200 psi Max.
• Max Test Pressure: 600 psi Max.
• Low Pressure Steam: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Standard: IAPMO PS 117-2016
• Threads Standard: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Other Compliance: ISO9001, ISO14001
• Connection Type: Press
• Product Group: Press Fittings
• Size: 1/2 inch
• Fitting Type: Tee
