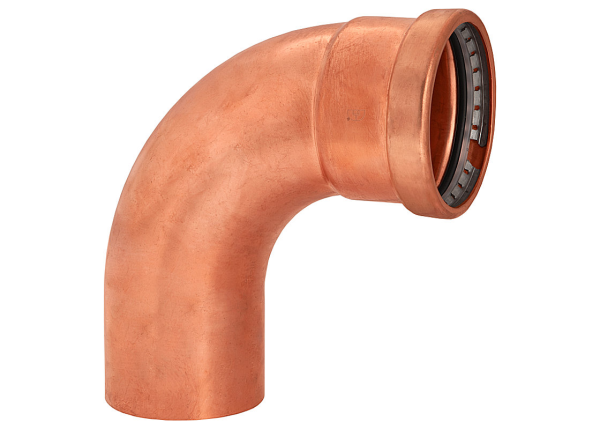

Bmi 47361 3 inches wrot copper press-fit FTG x P 90 degree street elbow fitting

Product Description

The BMI 47361 Wrot Copper Press-Fit FTG x P 90 Degree Street Elbow Fitting is designed for diverse applications including potable water, hydronic heating with glycol, chilled water, compressed air up to 200 psi, non-medical gases up to 140 psi, and low pressure steam up to 15 psi. This lead-free copper fitting features a 360-degree Leak Detection Design for identifying unpressed connections during pressure testing, ensuring a permanent, leak-proof seal once pressed. It is compatible with major pressing tools and complies with NSF/ANSI STANDARD 61 - 372 for drinking water.

• Compatible with all major brands pressing tools
• 360 Degree Leak Detection Design

Product Highlights

Lead-free copper fitting with 360-degree leak detection, suitable for potable water and various pressure systems.

Product Information

Standard Information

• Brand: BMI
• Manufacturer Part Number: 47361
• Country of Origin: USA

Technical Specifications

• Working Pressure: 200 psi Max.
• Maximum Test Pressure: 600 psi Max.
• Low Pressure Steam Rating: 15 psi Max.
• Working Temperature: 0~250 F (-18~121 C)
• Vacuum Rating: 29.2" Mercury @ 68 F (20 C)
• Material: ASME/ASTM B42 C12200 (99.9% cu)
• Dimensions Compliance: IAPMO PS 117-2016
• Threads Compliance: ASME/ASTM B1.20.1
• Drinking Water Compliance: NSF/ANSI STANDARD 61 - 372 (Lead free)
• Fitting Type: 90 Degree Elbow
• Connection Type: FTG x PRF
